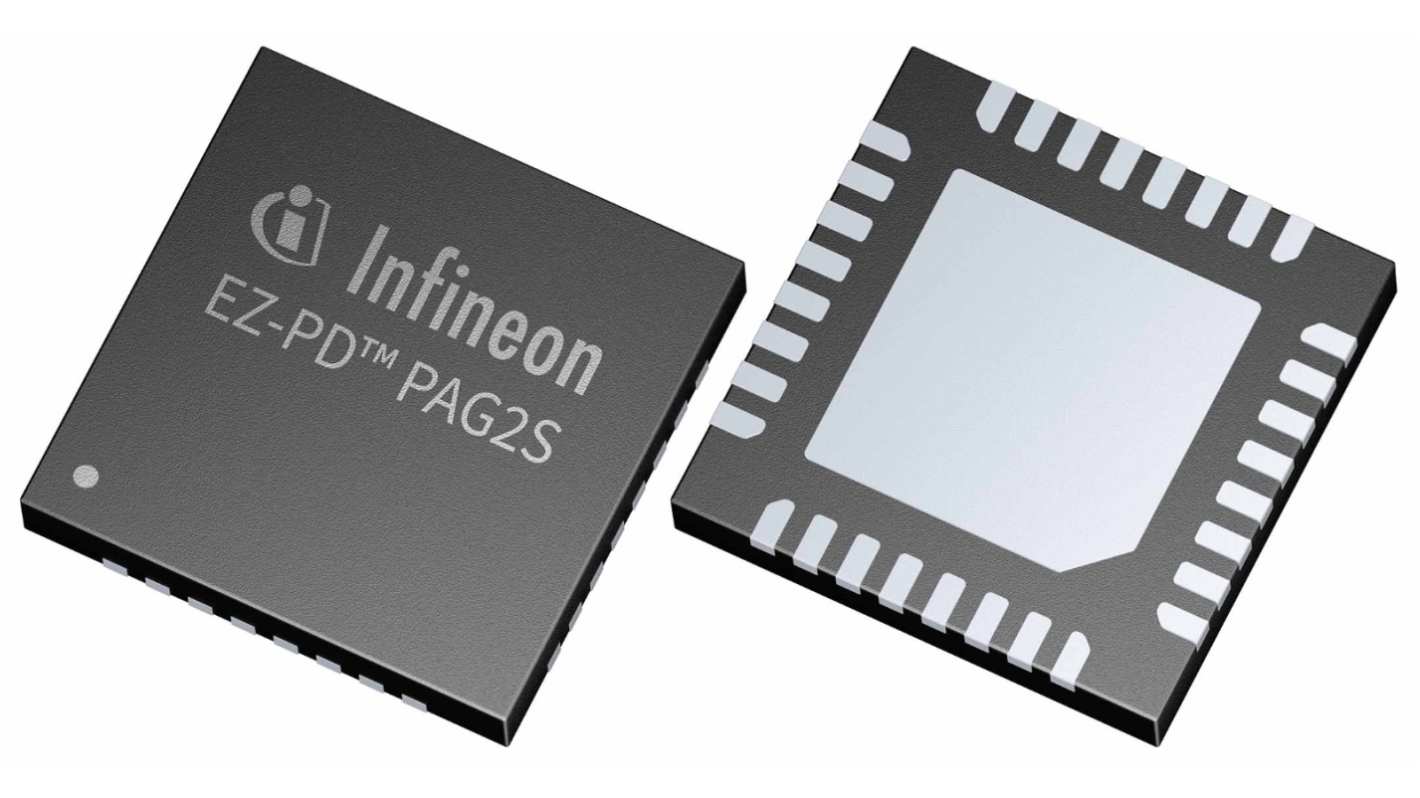

Infineon CYPAS213A124SXQXLXA1, USB Controller, 1-Channel, 34 V, QC5.0, QC 3.0, 4, BC v1.2, QC 2.0, QC4+, QC 4.0, USB

View all USB Interface ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

£3.86

(exc. VAT)

£4.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 18£1.93£3.86
20 - 198£1.74£3.48
200 - 998£1.605£3.21
1000 - 1998£1.485£2.97
2000 +£1.335£2.67

*price indicative

RS Stock No.:
349-215
Mfr. Part No.:
CYPAS213A124SXQXLXA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Number of Transceivers

1

Product Type

USB Controller

USB Specification

3.1

Sub Type

Integrated PD & Secondary - Side ACF Controller

ESD Protection

Yes

Minimum Supply Voltage

3.15V

Maximum Supply Voltage

34V

Mount Type

Surface

Pin Count

32

Minimum Operating Temperature

-40°C

Supported Protocols

QC5.0, QC 3.0, 4, BC v1.2, QC 2.0, QC4+, QC 4.0, USB 2.0, Samsung AFC

Maximum Operating Temperature

150°C

Height

0.8mm

Length

5mm

Series

EZ-PD PAG2S-QZ

Width

5 mm

Standards/Approvals

USB PD 3.1

Supply Current

25mA

COO (Country of Origin):
TW
The Infineon Integrated secondary side controller works as PD + SR integrated controller by pairing with any 3rd party PWM controller. The device’s synchronous rectifier supports fast turn n delay and turn off delay, DCM and CCM primary converters, logical and non logical level MOSFET, and volt second integration scheme to avoid false SR turn on.

High programmability

High system integration with lower BOM

High efficient

Low standby power

20 kHz to 300 kHz switching frequency

Volt second Integration
