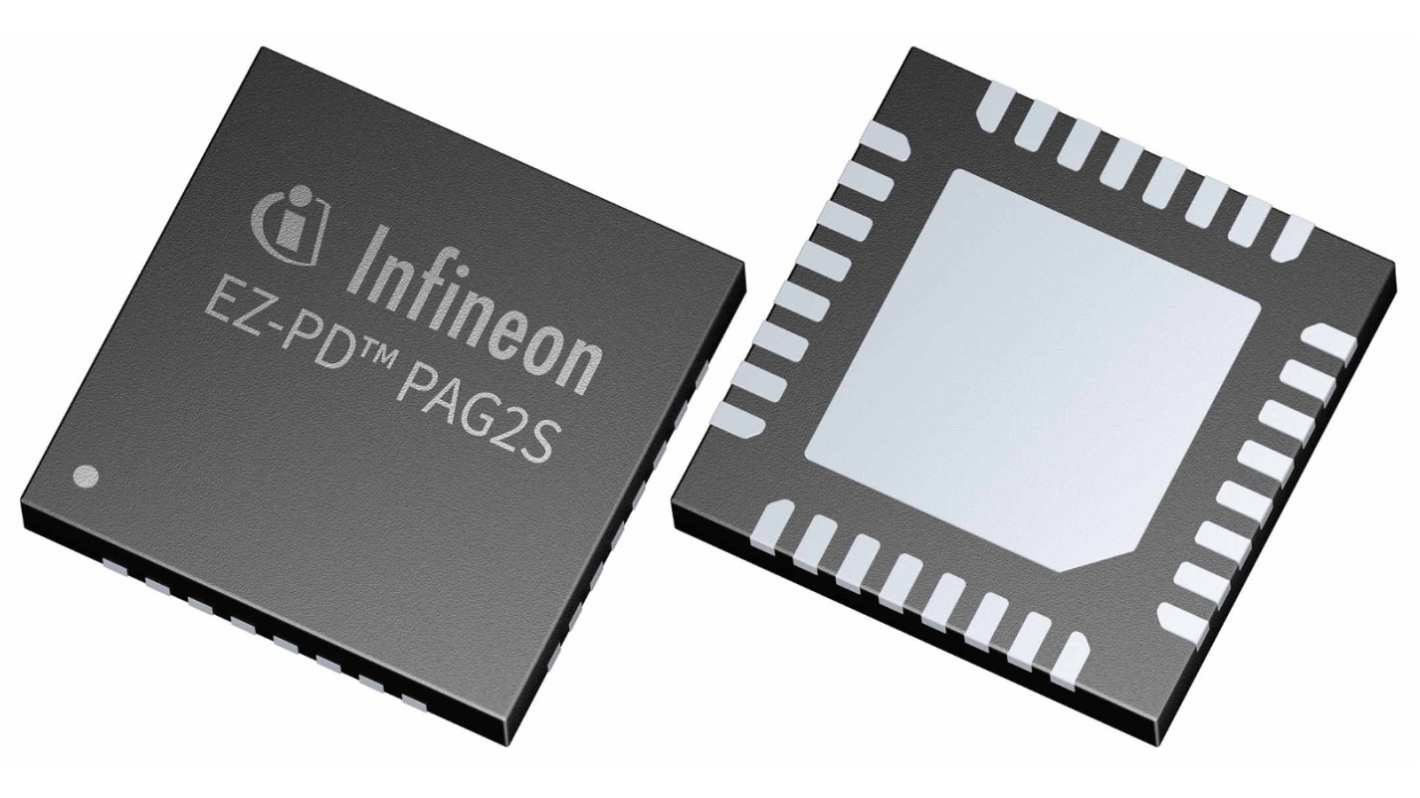

Infineon CYPAS212A132LQXQTXUMA1, USB Controller, 1-Channel, 30V, QC5.0, BC v1.2, USB 2.0, 3.0, QC4+, QC 2.0, QC 4.0,
- RS Stock No.:
- 348-963
- Mfr. Part No.:
- CYPAS212A132LQXQTXUMA1
- Brand:
- Infineon
Get a bulk buy discount
Add 20 more to save £4.80
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£4.78
(exc. VAT)
£5.74
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 2 - 18 | £2.39 | £4.78 | - |
| 20 - 198 | £2.15 | £4.30 | £4.80 |
| 200 - 998 | £1.975 | £3.95 | £83.00 |
| 1000 - 1998 | £1.84 | £3.68 | £550.00 |
| 2000 + | £1.65 | £3.30 | £1,480.00 |
*price indicative
- RS Stock No.:
- 348-963
- Mfr. Part No.:
- CYPAS212A132LQXQTXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | USB Controller | |
| Number of Transceivers | 1 | |
| USB Specification | EN ISO 13849, PLe | |
| Sub Type | Controller | |
| Power Supply Type | Analogue, Digital | |
| ESD Protection | Yes | |
| Minimum Supply Voltage | 3.15V | |
| Maximum Supply Voltage | 30V | |
| Mount Type | Surface | |
| Package Type | QFN-32 | |
| Pin Count | 32 | |
| Supported Protocols | QC5.0, BC v1.2, USB 2.0, 3.0, QC4+, QC 2.0, QC 4.0, Samsung AFC, QC 3.0 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 5mm | |
| Height | 800μm | |
| Series | EZ-PD PAG2S-QZ | |
| Standards/Approvals | USB PD 3.1 | |
| Supply Current | 25mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type USB Controller | ||
Number of Transceivers 1 | ||
USB Specification EN ISO 13849, PLe | ||
Sub Type Controller | ||
Power Supply Type Analogue, Digital | ||
ESD Protection Yes | ||
Minimum Supply Voltage 3.15V | ||
Maximum Supply Voltage 30V | ||
Mount Type Surface | ||
Package Type QFN-32 | ||
Pin Count 32 | ||
Supported Protocols QC5.0, BC v1.2, USB 2.0, 3.0, QC4+, QC 2.0, QC 4.0, Samsung AFC, QC 3.0 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 5mm | ||
Height 800μm | ||
Series EZ-PD PAG2S-QZ | ||
Standards/Approvals USB PD 3.1 | ||
Supply Current 25mA | ||
- COO (Country of Origin):
- TW
The Infineon Integrated secondary side PWM controller and USB Power Delivery controller features a PAG2S-QZ integrates secondary side synchronous rectifier, pulse width modulator and zero voltage switching control. Supports synchronous rectification in quasi resonant or critical conduction mode valley switching, discontinuous conduction mode and continuous conduction mode and supports switching frequency up to 300 kHz.
Supports burst mode for light load operations
SR driver works with both standard MOSFET and logic level MOSFET
USB PD 3.1 compliant with EPR support of up to 28V VBUS
Integrates low side current sense amplifier
