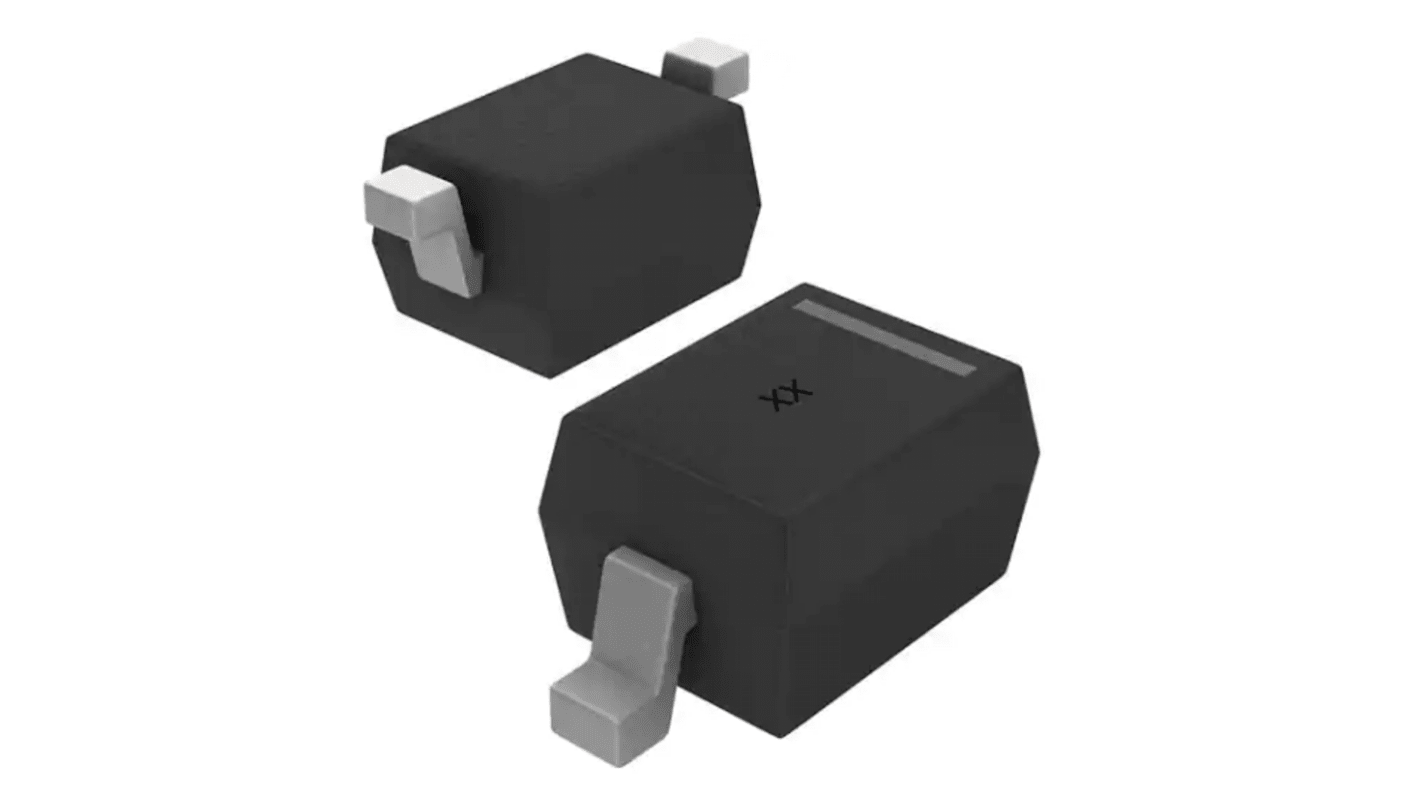

Bourns CDSOD323-T24S 1-Element Uni-Directional TVS Diode Array, 350 W, 2-Pin SOD-323

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 25 units)*

£8.85

(exc. VAT)

£10.625

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 25£0.354£8.85
50 - 75£0.347£8.68
100 - 225£0.272£6.80
250 - 975£0.266£6.65
1000 +£0.172£4.30

*price indicative

Packaging Options:
RS Stock No.:
244-5213
Mfr. Part No.:
CDSOD323-T24S
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Direction Type

Uni-Directional

Product Type

TVS Diode Array

Diode Configuration

Series

Minimum Breakdown Voltage Vbr

26.7V

Mount Type

Through Hole

Package Type

SOD-323

Maximum Reverse Stand-off Voltage Vwm

24V

Pin Count

2

Peak Pulse Power Dissipation Pppm

350W

Test Current It

1mA

Minimum Operating Temperature

-55°C

Maximum Peak Pulse Current Ippm

7.1A

Clamping Voltage VC

43V

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Series

CDSOD323-TxxC

Height

2.9mm

Width

1.35 mm

Length

1.35mm

Standards/Approvals

RoHS, IEC 61000-4-5 (Surge), IEC 61000-4-4 (EFT), IEC 61000-4-2 (ESD)

Automotive Standard

No

Maximum Reverse Leakage Current

0.5μA

The Bourns the transient voltage suppressor diodes for surge and ESD protection applications in SOD323 package size format. The Transient Voltage Suppressor series offers a choice of voltage types ranging from 3 V to 36 V in a unidirectional or bidirectional configuration.

Lead free as standard

ESD protection 30 kV max

Surge protection >24 A

Protects 1 line

Uni/bidirectional configuration
