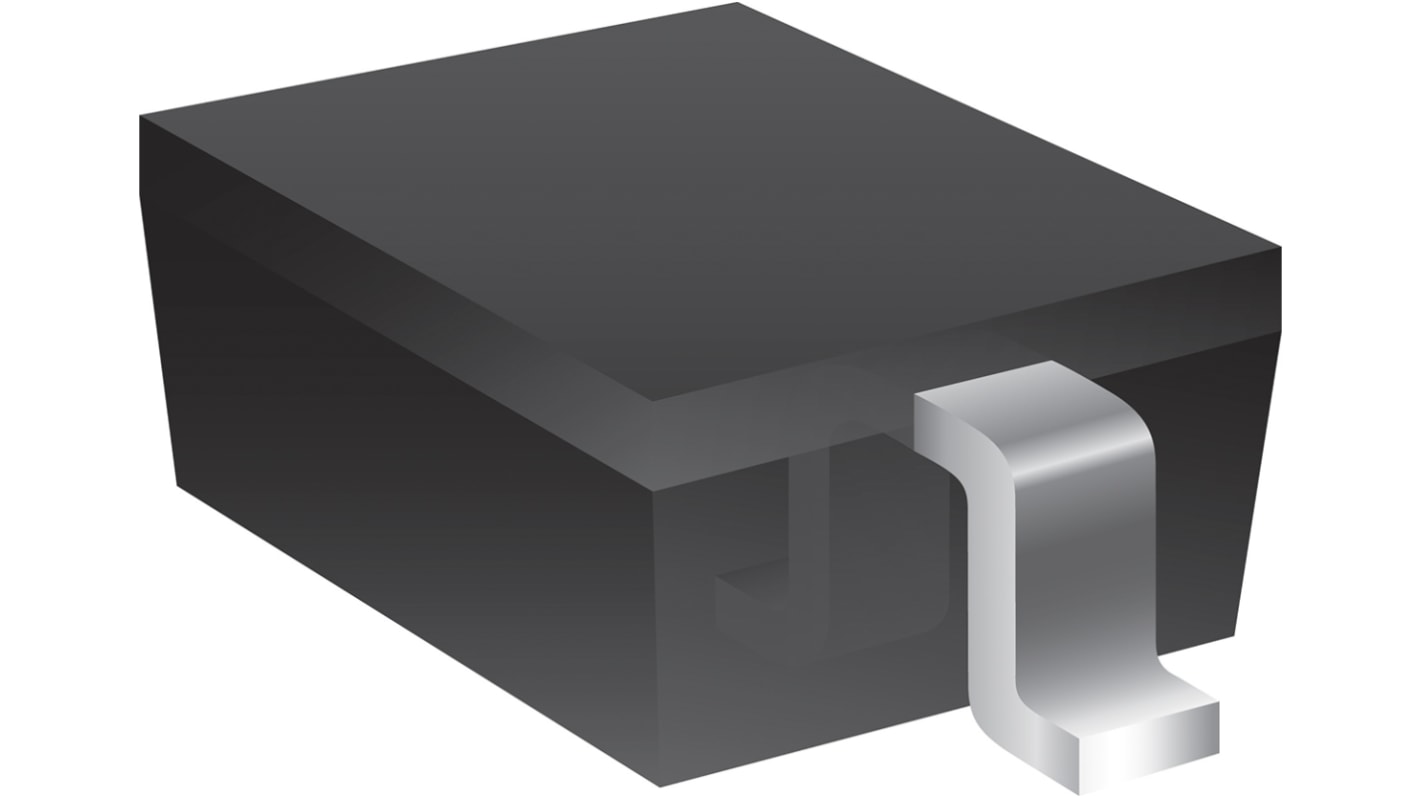

Bourns CDSOD323-T03S, Uni-Directional TVS Diode, 500W, 2-Pin SOD-323

View all TVS Diodes

Subtotal (1 reel of 3000 units)*

£522.00

(exc. VAT)

£627.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.174£522.00

*price indicative

RS Stock No.:
174-2488
Mfr. Part No.:
CDSOD323-T03S
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Direction Type

Uni-Directional

Diode Configuration

Single

Maximum Clamping Voltage

7V

Minimum Breakdown Voltage

4V

Mounting Type

Surface Mount

Package Type

SOD-323

Pin Count

2

Peak Pulse Power Dissipation

500W

Maximum Peak Pulse Current

43A

ESD Protection

Yes

Number of Elements per Chip

1

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+150 °C

Dimensions

1.9 x 1.45 x 1.01mm

Capacitance

500pF

Working Voltage

3.3V

Surge Current Rating

24A

Maximum Reverse Leakage Current

125µA

Width

1.45mm

Length

1.9mm

Test Current

1mA

Height

1.01mm

Bourns TVS Diode


The Bourns SOD-323 package, surface mount unidirectional 2-pin TVS diode has a stand-off voltage of 3.3V and reverse breakdown voltage of 4V. It has a maximum peak pulse current rating of 43A.

Features and Benefits


• Easy to handle with standard pick and place equipment
• ESD protection 30kV
• Lead free
• Operating junction temperature ranges between -55°C and 150°C
• Protects 1 line
• Surge protection >24A

Applications


• Cellular phones
• Computer notebooks
• Digital cameras
• Personal digital assistants

Certifications


• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• JEDEC
• UL 94V-0 listed
