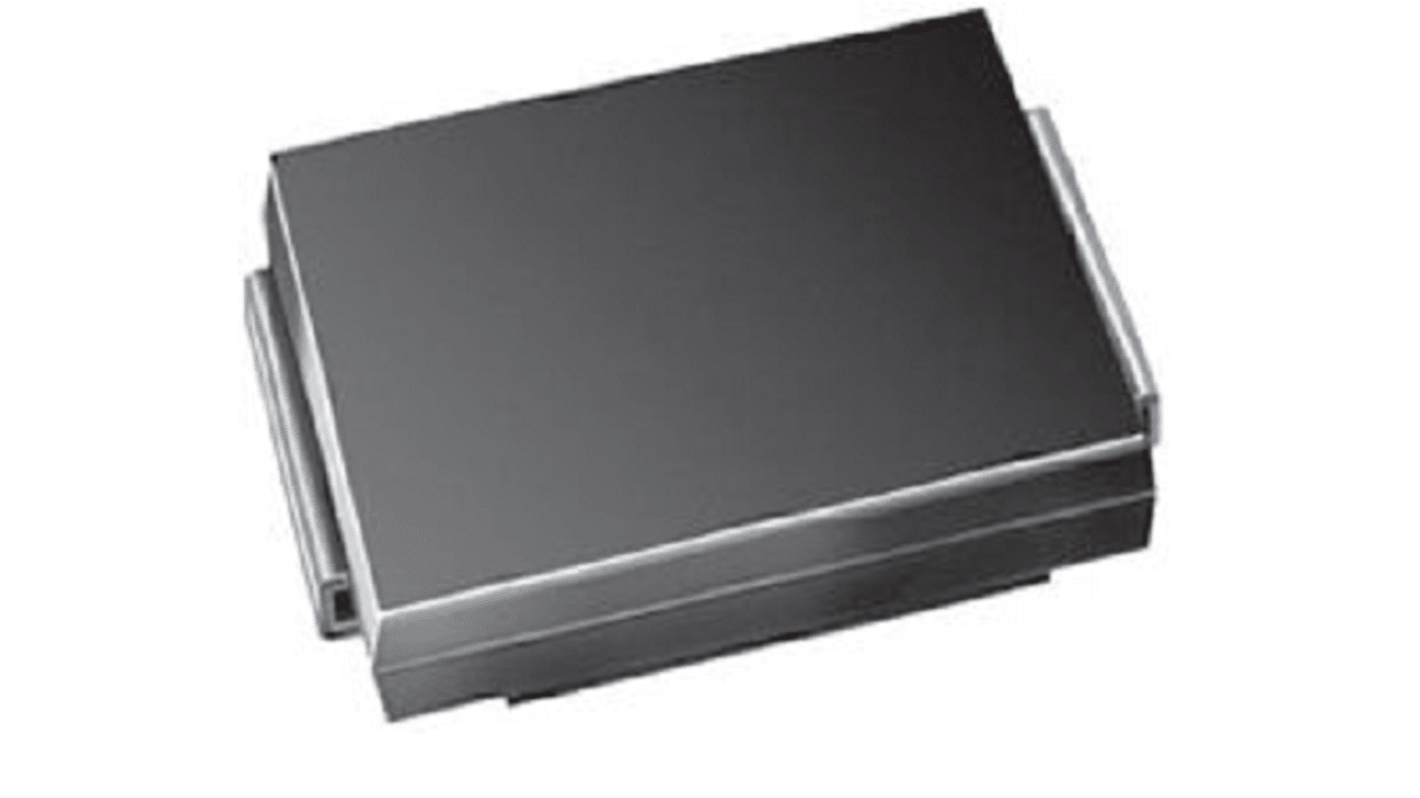

Vishay XMC7K24CAHM3/H 1-Element Bi-Directional Diode, 7000 W, 2-Pin SMC (DO-214AB)
- RS Stock No.:
- 218-6781
- Mfr. Part No.:
- XMC7K24CAHM3/H
- Brand:
- Vishay
Stock information currently inaccessible
- RS Stock No.:
- 218-6781
- Mfr. Part No.:
- XMC7K24CAHM3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Direction Type | Bi-Directional | |
| Product Type | Diode | |
| Minimum Breakdown Voltage Vbr | 26.7V | |
| Mount Type | Surface | |
| Package Type | SMC (DO-214AB) | |
| Maximum Reverse Stand-off Voltage Vwm | 24V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 7000W | |
| Clamping Voltage VC | 24V | |
| Maximum Peak Pulse Current Ippm | 180A | |
| Minimum Operating Temperature | -55°C | |
| Test Current It | 1mA | |
| Maximum Operating Temperature | 175°C | |
| Number of Elements per Chip | 1 | |
| Standards/Approvals | AEC-Q101 | |
| Series | XMC7K24CA | |
| Maximum Reverse Leakage Current | 1.0μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Direction Type Bi-Directional | ||
Product Type Diode | ||
Minimum Breakdown Voltage Vbr 26.7V | ||
Mount Type Surface | ||
Package Type SMC (DO-214AB) | ||
Maximum Reverse Stand-off Voltage Vwm 24V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 7000W | ||
Clamping Voltage VC 24V | ||
Maximum Peak Pulse Current Ippm 180A | ||
Minimum Operating Temperature -55°C | ||
Test Current It 1mA | ||
Maximum Operating Temperature 175°C | ||
Number of Elements per Chip 1 | ||
Standards/Approvals AEC-Q101 | ||
Series XMC7K24CA | ||
Maximum Reverse Leakage Current 1.0μA | ||
The Vishay surface mount XclampRTM transient voltage suppressors high temperature stability and high reliability conditions. Use in sensitive electronics protection against voltage transients induced by inductive load switch and lighting on ICs, MOSFET, s
XClampRTM extremely low clamping voltage
IPPM is 180 A with a 10/1000 μs waveform
TJ is 175 °C capability suitable for high reliability and automotive requirement
Bidirectional
Low leakage current
