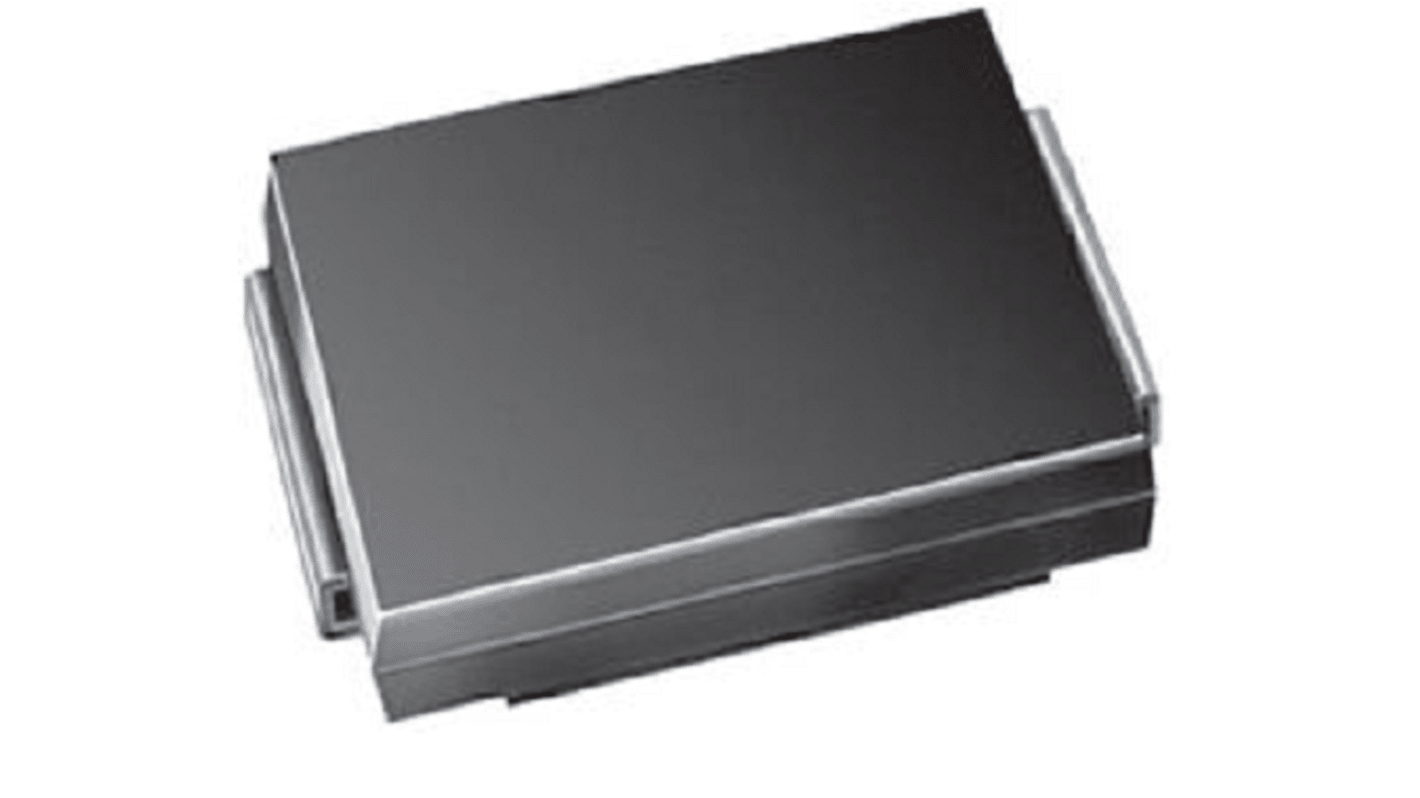

Vishay XMC7K24CA-M3/H 1-Element Bi-Directional Diode, 7000 W, 2-Pin SMC (DO-214AB)
- RS Stock No.:
- 218-6783
- Mfr. Part No.:
- XMC7K24CA-M3/H
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£10.80
(exc. VAT)
£13.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 150 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.08 | £10.80 |
| 100 - 240 | £1.026 | £10.26 |
| 250 - 490 | £0.874 | £8.74 |
| 500 - 990 | £0.81 | £8.10 |
| 1000 + | £0.745 | £7.45 |
*price indicative
- RS Stock No.:
- 218-6783
- Mfr. Part No.:
- XMC7K24CA-M3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 26.7V | |
| Mount Type | Surface | |
| Package Type | SMC (DO-214AB) | |
| Maximum Reverse Stand-off Voltage Vwm | 24V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 7000W | |
| Test Current It | 1mA | |
| Maximum Peak Pulse Current Ippm | 180A | |
| Minimum Operating Temperature | -55°C | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 175°C | |
| Series | XClampRTM | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 1.0μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 26.7V | ||
Mount Type Surface | ||
Package Type SMC (DO-214AB) | ||
Maximum Reverse Stand-off Voltage Vwm 24V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 7000W | ||
Test Current It 1mA | ||
Maximum Peak Pulse Current Ippm 180A | ||
Minimum Operating Temperature -55°C | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 175°C | ||
Series XClampRTM | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 1.0μA | ||
The Vishay surface mount XclampRTM transient voltage suppressors high temperature stability and high reliability conditions. Use in sensitive electronics protection against voltage transients induced by inductive load switch and lighting on ICs, MOSFET, s
XClampRTM extremely low clamping voltage
IPPM is 180 A with a 10/1000 μs waveform
TJ is 175 °C capability suitable for high reliability and automotive requirement
Bidirectional
Low leakage current
