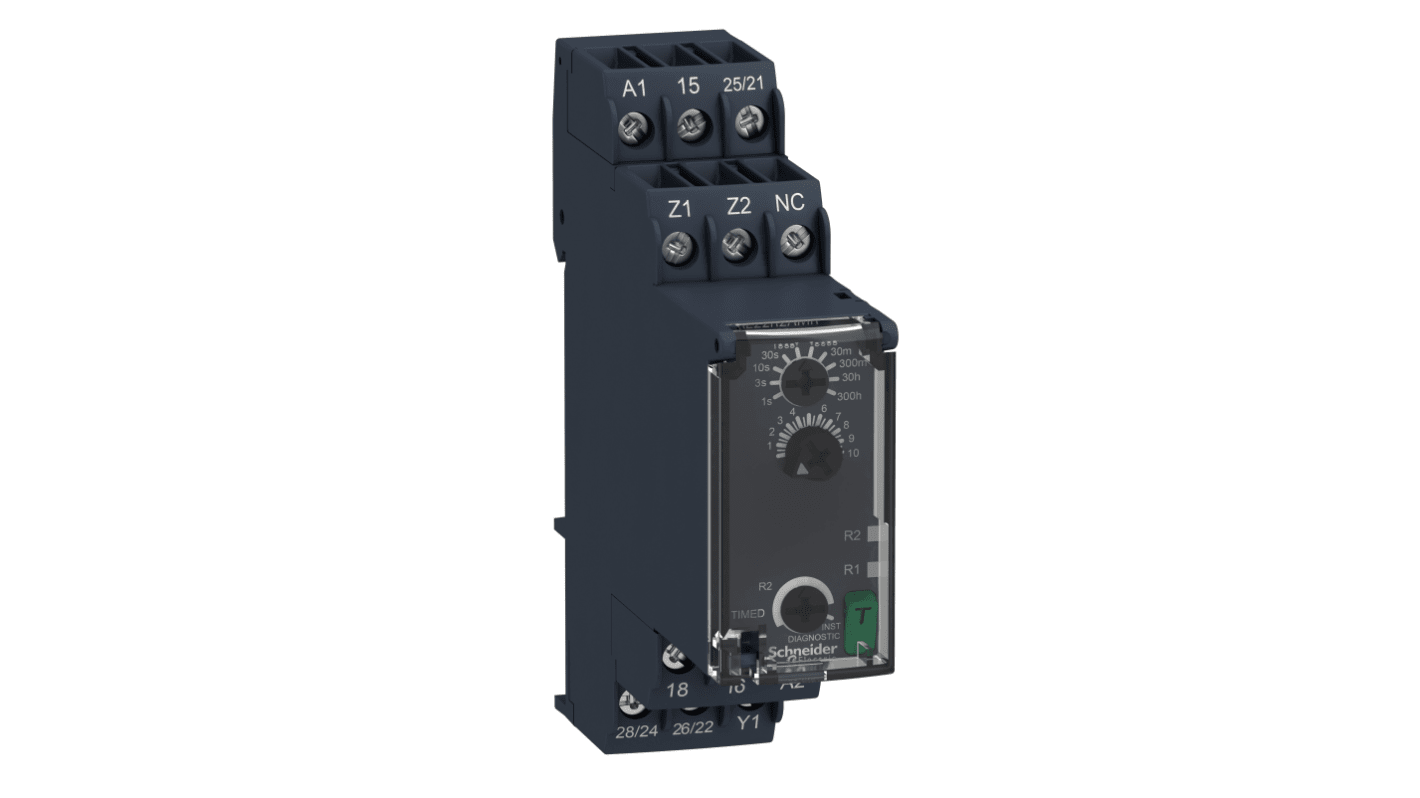

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 1-Function, DPDT

View all Timer Relays

Subtotal (1 unit)*

£88.54

(exc. VAT)

£106.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£88.54

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
896-8676
Distrelec Article No.:
304-02-498
Mfr. Part No.:
RE22R2AMR
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Timer Relay

Mount Type

DIN Rail

Number of Contacts

2

Number of Timer Functions

1

Contact Configuration

DPDT

IP Rating

IP20, IP50, IP40

Contact Current

8A

Supply DC Voltage

240 V dc

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Terminal Type

Screw

Standards/Approvals

RCM, EAC, CSA, 2006/95/EC, CE, GL, IEC 61812-1, UL 508, CHINA RoHS, 2004/108/EC, UL, CCC

Height

79.5mm

Length

22.9mm

Series

Harmony Time

Better World Product

Yes

COO (Country of Origin):
ID

Schneider Electric RE22 Series Timer Relay, 0.05s to 300h Time Range, 8A Contact Current - RE22R2AMR


This timer relay provides adjustable time delay control for industrial automation and control panels, designed for DIN-rail installation and electrical system integration. It accepts a wide supply range and is suitable where compact, panel-mounted time control is required in machinery, process control and equipment automation.

Features & Benefits


• Dual changeover contacts supply up to 8A for switching loads
• Time adjustment from 0.05 s to 300 h for flexible timing
• Dual AC/DC supply 24/240V supports varied control voltages
• Screw terminals ensure secure connections under vibration
• Rated for switching 250V AC to Interface with mains circuits
• Operating range -20 to 60 °C for varied site temperatures

Applications


• Suitable for conveyor motor start/stop sequencing in factories
• Ideal for lighting and signalling delay functions in control panels
• Used with HVAC control systems for timed fan and damper operations
• Can be used for pump cycling in water treatment installations
• Suitable for interlock timing in machine safety and control cabinets

What contact arrangement does it use and how does that affect wiring?


It uses two changeover contacts which allow common-fed circuits to be switched between two outputs, simplifying wiring for alternate power or signal routing.

How is the unit mounted and connected inside a control enclosure?


The module clips onto a DIN rail and is wired via screw Terminals, providing a Compact footprint and reliable clamping for Terminal conductors.

What protection ratings are provided for installation environments?


The device offers enclosure protection levels including IP20 for standard mounting and additional variants up to IP50 and IP40 for applications requiring differing degrees of dust protection.

Can the timer cope with different supply types on site?


The timer accepts both low-voltage control and higher-voltage supplies across AC and DC, enabling use with 24V control circuits or 240V supplies.
