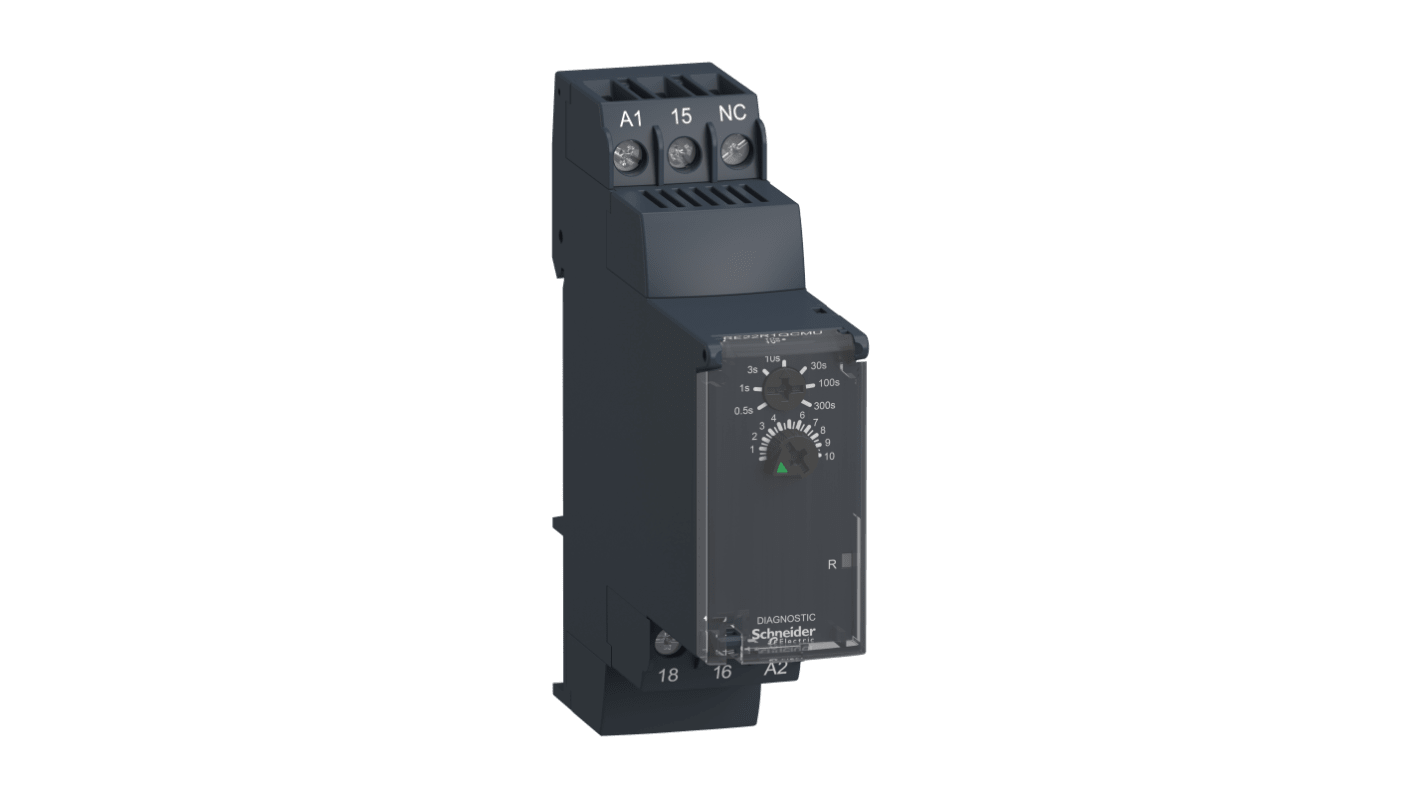

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 →

View all Timer Relays

Subtotal (1 unit)*

£59.03

(exc. VAT)

£70.84

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£59.03

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
897-6738
Distrelec Article No.:
303-02-786
Mfr. Part No.:
RE22R1QCMU
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Supply Voltage

24 → 240V ac/dc

Mounting Type

DIN Rail

Mode of Operation

Star Delta

Time Range

0.05 → 300s

Number of Contacts

1

Number of Timer Functions

Single

Contact Configuration

SPDT

Time Increment

Seconds

Maximum Current

8A

Maximum Voltage

240V ac/dc

Terminal Type

Screw

Switch Configuration

SPCO

Power Supply

External

Width

90mm

Minimum Voltage

24V ac/dc

Better World Product

Yes

Minimum Current

10mA

Better World Verification

Green Premium

Series

Harmony Time

Maximum Operating Temperature

+60°C

Depth

79.5mm

Length

22.9mm

Time Delay

<100ms

Minimum Operating Temperature

-20°C

COO (Country of Origin):
ID

Zelio Star Delta Timers- RE22 Series


22.5 mm profile width
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 → 60 °C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
