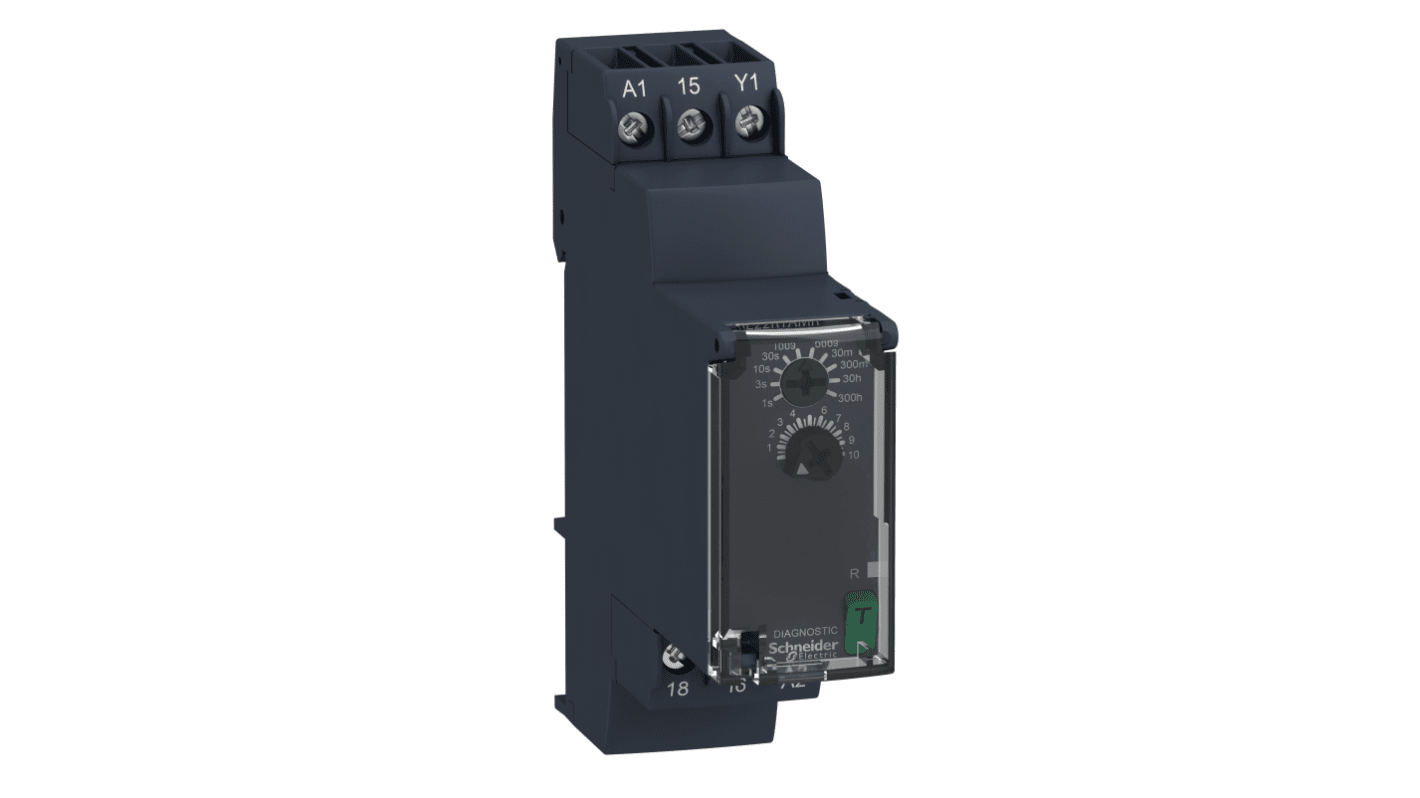

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 → 1s,

View all Timer Relays

Subtotal (1 unit)*

£71.33

(exc. VAT)

£85.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 27 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£71.33

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
896-8673
Distrelec Article No.:
301-12-071
Mfr. Part No.:
RE22R1AMR
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Supply Voltage

24 → 240V ac/dc

Mounting Type

DIN Rail

Mode of Operation

ON Delay

Time Range

0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s

Number of Contacts

1

Number of Timer Functions

Single

Contact Configuration

SPDT

Time Increment

Hours, Minutes, Seconds

Maximum Current

8A

Maximum Voltage

240V ac/dc

Terminal Type

Screw

Switch Configuration

SPCO

Minimum Voltage

24V ac/dc

Power Supply

External

Width

90mm

Minimum Current

10mA

Depth

79.5mm

Length

22.9mm

Better World Product

Yes

Better World Verification

Green Premium

Maximum Operating Temperature

+60°C

Series

Harmony Time

Time Delay

<100ms

Minimum Operating Temperature

-20°C

COO (Country of Origin):
ID

Schneider Electric Single-function Timer Relay


The Schneider Electric single-function timer relay is solid-state compact equipment with high precision and a comprehensive range of timing functions to suit a wide variety of applications. It performs the function of providing ON delay in the range between 0.05 seconds and 300hours. Because of its highly versatile voltage range, this can be installed into new and existing applications without much hassle. For selecting the time delay range, there are two selectable rotary switches on the front of the unit. Its affordability, optimum space management and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits


10 timing ranges between 0.05seconds to 300hours like 0.05seconds to 1seconds, 0.3seconds to 3seconds, 1seconds to 10seconds, 3seconds to 30seconds, 10seconds to 100 seconds, 30 seconds to 300seconds, 30minutes to 300minutes, 3minutes to 30minutes, 3hours to 30 hours, 30hours to 300hours
The supply voltage rating ranging from 24VAC to 240VAC and 24VAC to 240VAC
1 C/O SPDT contact relay of 8A
State indication by LED
Repeat accuracy of +/-0.5%
Self-extinguishing housing
22.5mm profile width
Screw terminals connection

Applications


Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications


CCC
CE certified
CSA certified
GL certified
UL certified
RCM certified
EAC certified
IP20 rated terminals
IP50 rated display
IP40 rated housing
IEC 61812-1
IEC 60947-1
IEC 60664-1
IEC 60529
IEC 60068-2-6
IEC 60068-2-27
IEC 61000-4-11
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
