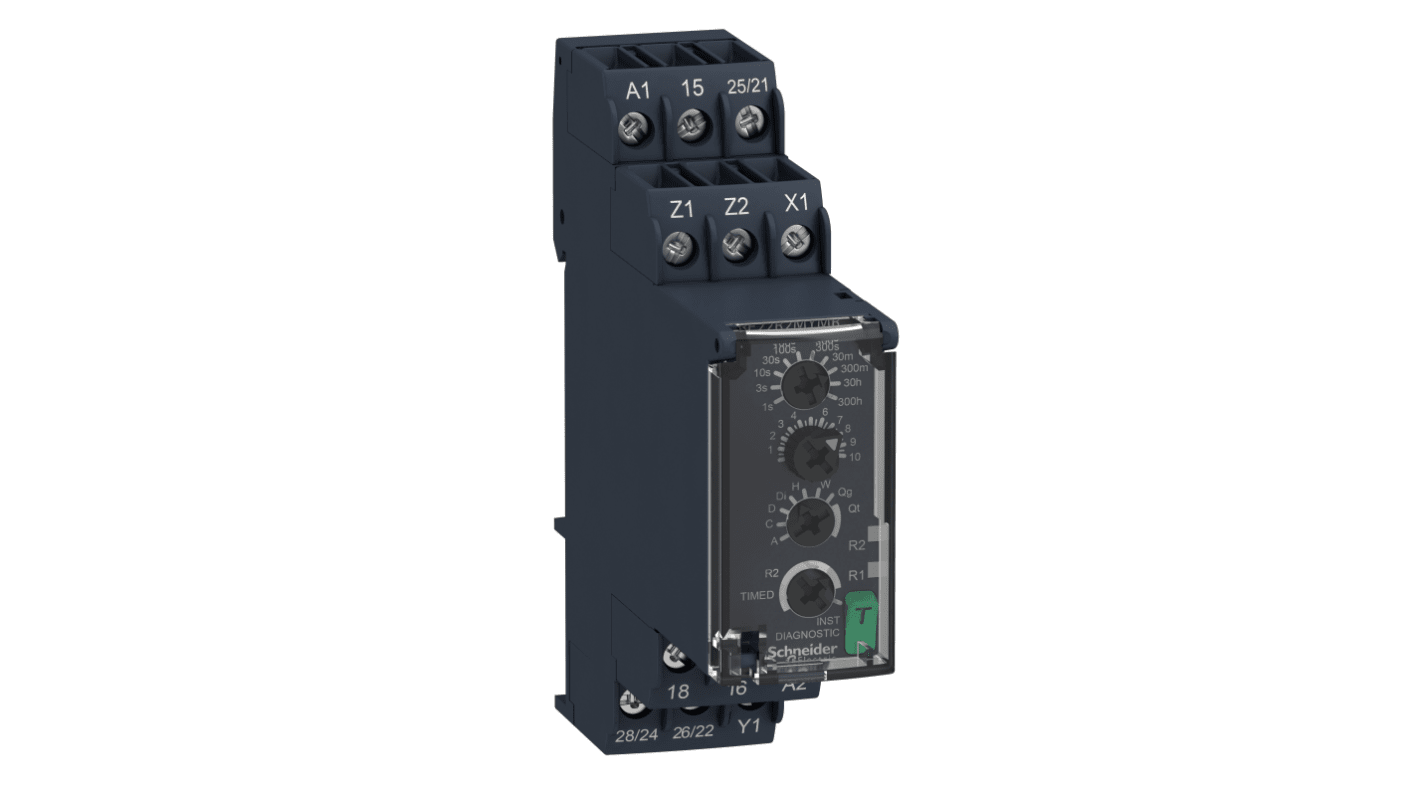

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 24V ac, 240 V ac,
- RS Stock No.:
- 897-6725
- Distrelec Article No.:
- 301-12-075
- Mfr. Part No.:
- RE22R2MYMR
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£108.20
(exc. VAT)
£129.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £108.20 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 897-6725
- Distrelec Article No.:
- 301-12-075
- Mfr. Part No.:
- RE22R2MYMR
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | DPDT | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 240 V dc | |
| Supply AC Voltage | 24, 240V ac | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Height | 79.5mm | |
| Length | 22.9mm | |
| Width | 90mm | |
| Standards/Approvals | RoHS | |
| Series | Harmony Time | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration DPDT | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 240 V dc | ||
Supply AC Voltage 24, 240V ac | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Height 79.5mm | ||
Length 22.9mm | ||
Width 90mm | ||
Standards/Approvals RoHS | ||
Series Harmony Time | ||
Better World Product Yes | ||
- COO (Country of Origin):
- ID
Schneider Electric Harmony Time Series Timer Relay, 24V to 240V AC/DC Supply Voltage, 2 C/O Switch Configuration - RE22R2QEMR
This timer relay is a versatile device designed for automation processes, offering operational efficiency within a supply voltage range of 24V to 240V AC/DC. With its Compact dimensions of 90mm in width, 79.5mm in depth, and 22.9mm in length, this DIN Rail Timer Relay is tailored for seamless installation. Operating within a time range of 0.3 to 30 seconds, it accommodates various applications, including star-delta configurations, ensuring precise time control in electrical systems.
Features & Benefits
• Delivers a single timer function with adjustable time increments
• Accommodates a maximum current of 8A for demanding applications
• Features cadmium free contacts for environmentally friendly solutions
• Equipped with a screw Terminal type for secure connections
• Accommodates a maximum current of 8A for demanding applications
• Features cadmium free contacts for environmentally friendly solutions
• Equipped with a screw Terminal type for secure connections
Applications
• Used within Star Delta motor Starting systems
• Suitable for sequential circuit control in industrial settings
• Implemented in automated lighting systems to manage time delays
• Utilised in HVAC systems for timed fan control
• Employed in production lines for precise timing operations
• Suitable for sequential circuit control in industrial settings
• Implemented in automated lighting systems to manage time delays
• Utilised in HVAC systems for timed fan control
• Employed in production lines for precise timing operations
What types of motors can be effectively controlled with this device?
This device is Ideal for controlling star-delta motors, facilitating smooth transitions during start-up phases by managing the time delay effectively.
How does the adjustable time range enhance operational flexibility?
The timer relay’s adjustable time range of 0.3 to 30 seconds allows users to configure processes according to specific operational requirements, enabling improved efficiency in applications.
What are the environmental benefits of using this timer relay?
This relay features cadmium-free contacts, making it a suitable choice for environmentally-conscious projects while ensuring adherence to modern regulatory standards for safety.
What installation method is preferred for this timer relay?
The timer relay is designed for DIN rail mounting, providing a streamlined and secure installation perfect for panel setups in various electronic and electrical environments.
