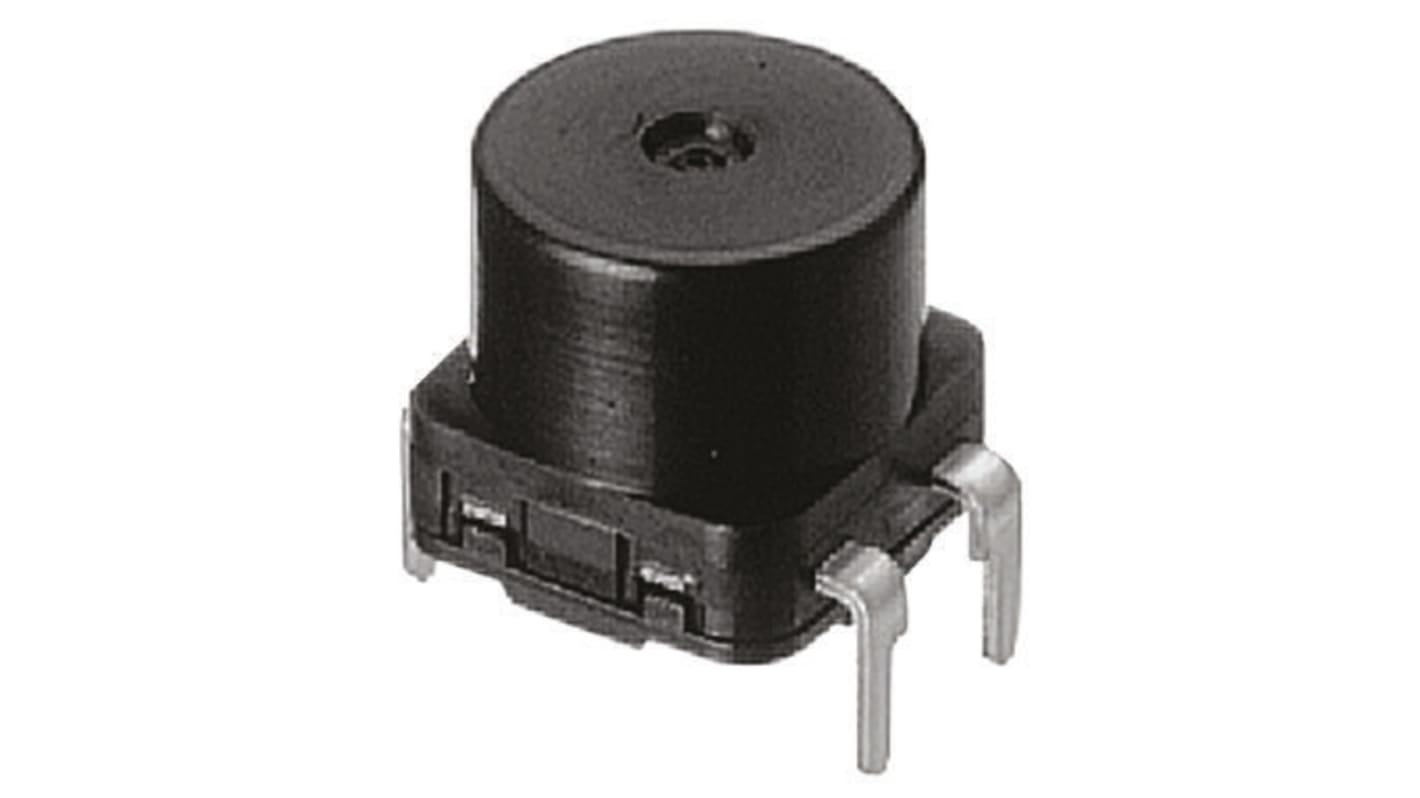

Panasonic 25 → 60° Horizontal Tilt Switch 19mA
- RS Stock No.:
- 699-5480
- Mfr. Part No.:
- AHF23
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£6.86
(exc. VAT)
£8.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 37 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.86 |
| 5 + | £6.48 |
*price indicative
- RS Stock No.:
- 699-5480
- Mfr. Part No.:
- AHF23
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Differential Angle | 25 → 60° | |
| Mounting Orientation | Horizontal | |
| Electrical Output | Voltage | |
| Maximum Current | 19mA | |
| Maximum DC Voltage | 5V | |
| Terminal Type | PCB | |
| Length | 11.5mm | |
| Depth | 11.9mm | |
| Width | 9.5mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Dimensions | 11.5 x 9.5 x 11.9mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Differential Angle 25 → 60° | ||
Mounting Orientation Horizontal | ||
Electrical Output Voltage | ||
Maximum Current 19mA | ||
Maximum DC Voltage 5V | ||
Terminal Type PCB | ||
Length 11.5mm | ||
Depth 11.9mm | ||
Width 9.5mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Dimensions 11.5 x 9.5 x 11.9mm | ||
- COO (Country of Origin):
- JP
Tip Switch with Photo Sensor
