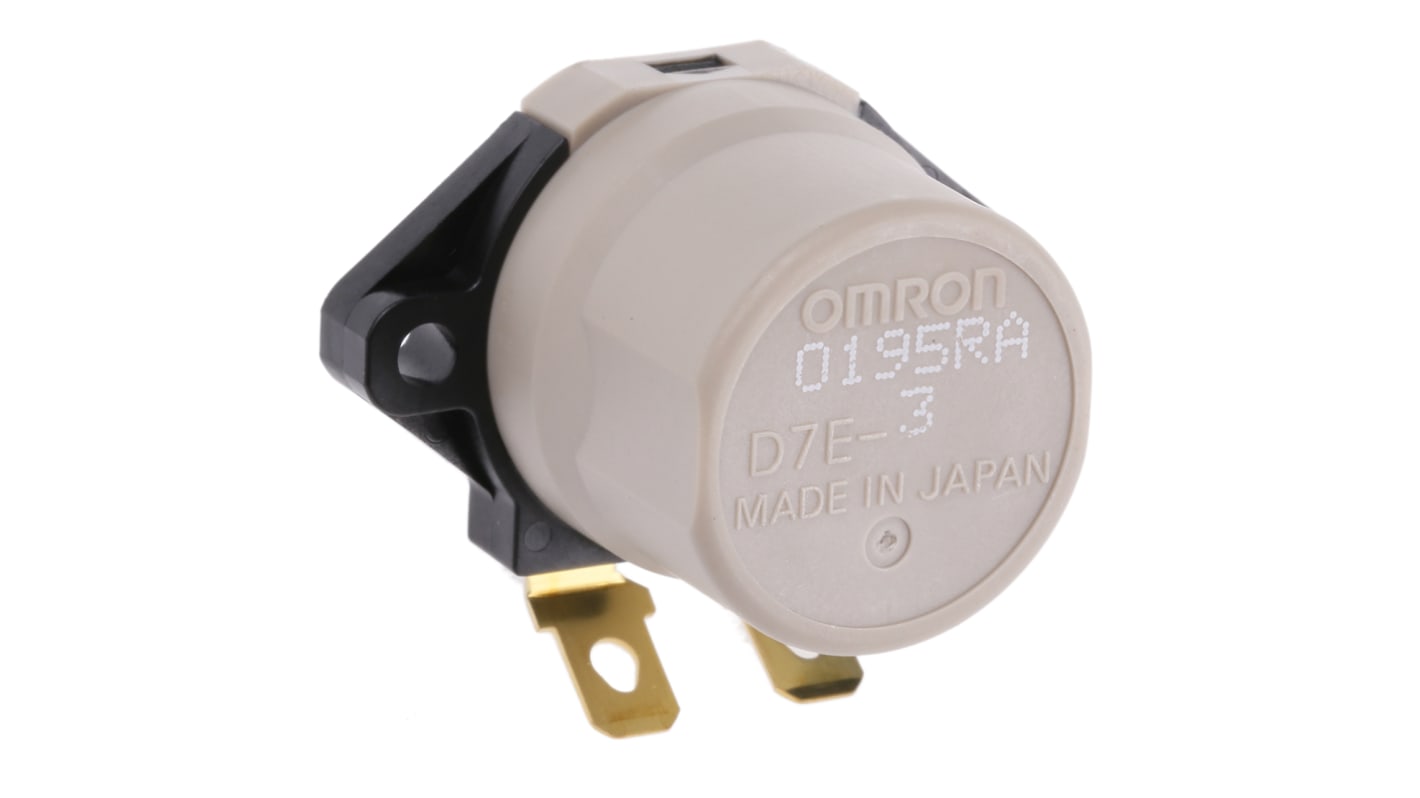

Omron 50 → 80° Horizontal Tilt Switch 100mA

View all Tilt Switches

Subtotal (1 unit)*

£5.71

(exc. VAT)

£6.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 327 unit(s) shipping from 13 October 2025
  • Plus 331 unit(s) shipping from 13 October 2025
  • Plus 652 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£5.71

*price indicative

RS Stock No.:
622-9774
Mfr. Part No.:
D7E-3
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Differential Angle

50 → 80°

Mounting Orientation

Horizontal

Electrical Output

Voltage

Maximum Current

100mA

Maximum DC Voltage

30V

Contact Resistance

300mΩ

Terminal Type

Solder Tag

Length

36.4mm

Width

23.6mm

Depth

23.1mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+60°C

Dimensions

36.4 x 23.6 x 23.1mm

COO (Country of Origin):
JP

Omron Tilt Switch, 100mA Maximum Current, 23.6mm Width - D7E-3


This tilt switch by Omron offers high precision and reliability in detecting tilting angles within the range of 50 to 80 degrees. Its compact design and voltage output make it ideal for various industrial applications where precise tilt sensing is required.

Features & Benefits


• Offers a differential angle of 50 to 80 degrees for accurate tilt detection
• Voltage output capability ranging from 0.1mA at 5VDC to 100mA at 30VDC ensures versatile usage
• Sealed enclosure design provides protection against environmental factors, ensuring longevity
• Horizontal mounting orientation allows for easy installation in confined spaces
• Solder tag terminal type facilitates secure connection and stable performance
• Temperature resistant from -25°C to +60°C, making it suitable for a wide range of operating conditions.

Applications


• Ideal for use in robotics for angle detection and motion control
• Suitable for tilt monitoring in medical equipment for patient safety
• Used in automotive technology for detecting vehicle inclination during off-road driving

Can it handle high current loads?


The tilt switch is designed to support current ratings from 0.1mA to 100mA, making it suitable for applications requiring high current.

Will it function in extreme temperatures?


It is tested to operate within a temperature range of -25°C to +60°C, ensuring reliable performance in harsh environments.

Is it suitable for horizontal mounting?


Yes, the tilt switch is specifically designed for horizontal mounting orientation, allowing for easy integration into various systems.
