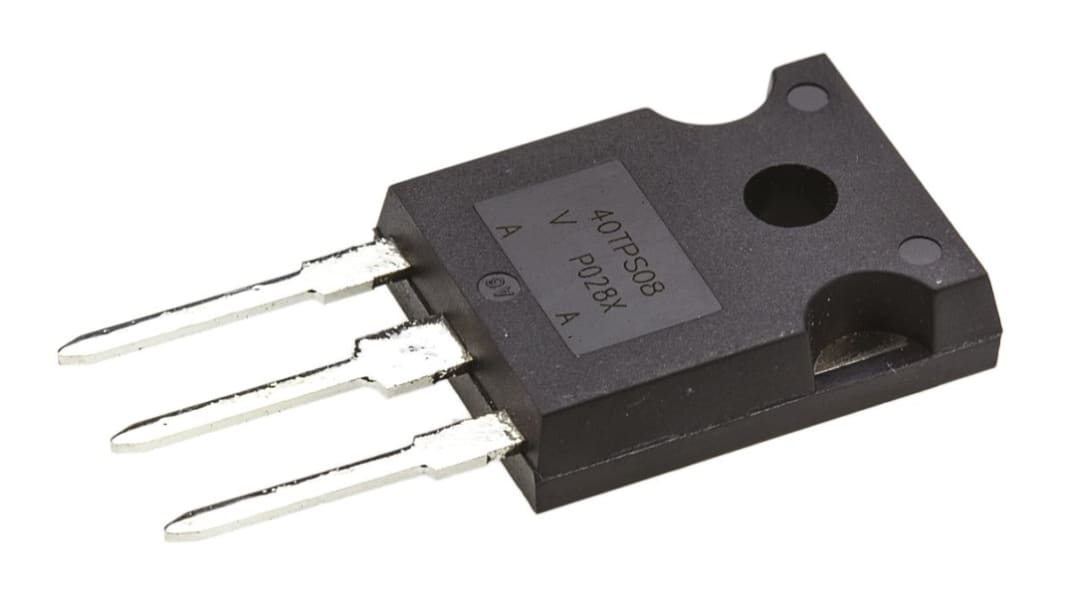

Vishay VS-40TPS08-M3, Thyristor 800V, 35A 150mA
- RS Stock No.:
- 145-1745
- Mfr. Part No.:
- VS-40TPS08-M3
- Brand:
- Vishay
1 / 1
Subtotal (1 tube of 25 units)**
£77.50
(exc. VAT)
£93.00
(inc. VAT)
1150 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Tube** |
|---|---|---|
| 25 + | £3.10 | £77.50 |
**price indicative
- RS Stock No.:
- 145-1745
- Mfr. Part No.:
- VS-40TPS08-M3
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current | 35A | |
| Thyristor Type | SCR | |
| Package Type | TO-247AC | |
| Repetitive Peak Reverse Voltage | 800V | |
| Surge Current Rating | 600A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 150mA | |
| Maximum Gate Trigger Voltage | 2.5V | |
| Maximum Holding Current | 150mA | |
| Pin Count | 3 | |
| Dimensions | 15.87 x 5.31 x 20.7mm | |
| Peak On-State Voltage | 1.85V | |
| Repetitive Peak Forward Blocking Voltage | 800V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Repetitive Peak Off-State Current | 0.5mA | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current 35A | ||
Thyristor Type SCR | ||
Package Type TO-247AC | ||
Repetitive Peak Reverse Voltage 800V | ||
Surge Current Rating 600A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 150mA | ||
Maximum Gate Trigger Voltage 2.5V | ||
Maximum Holding Current 150mA | ||
Pin Count 3 | ||
Dimensions 15.87 x 5.31 x 20.7mm | ||
Peak On-State Voltage 1.85V | ||
Repetitive Peak Forward Blocking Voltage 800V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Repetitive Peak Off-State Current 0.5mA | ||
