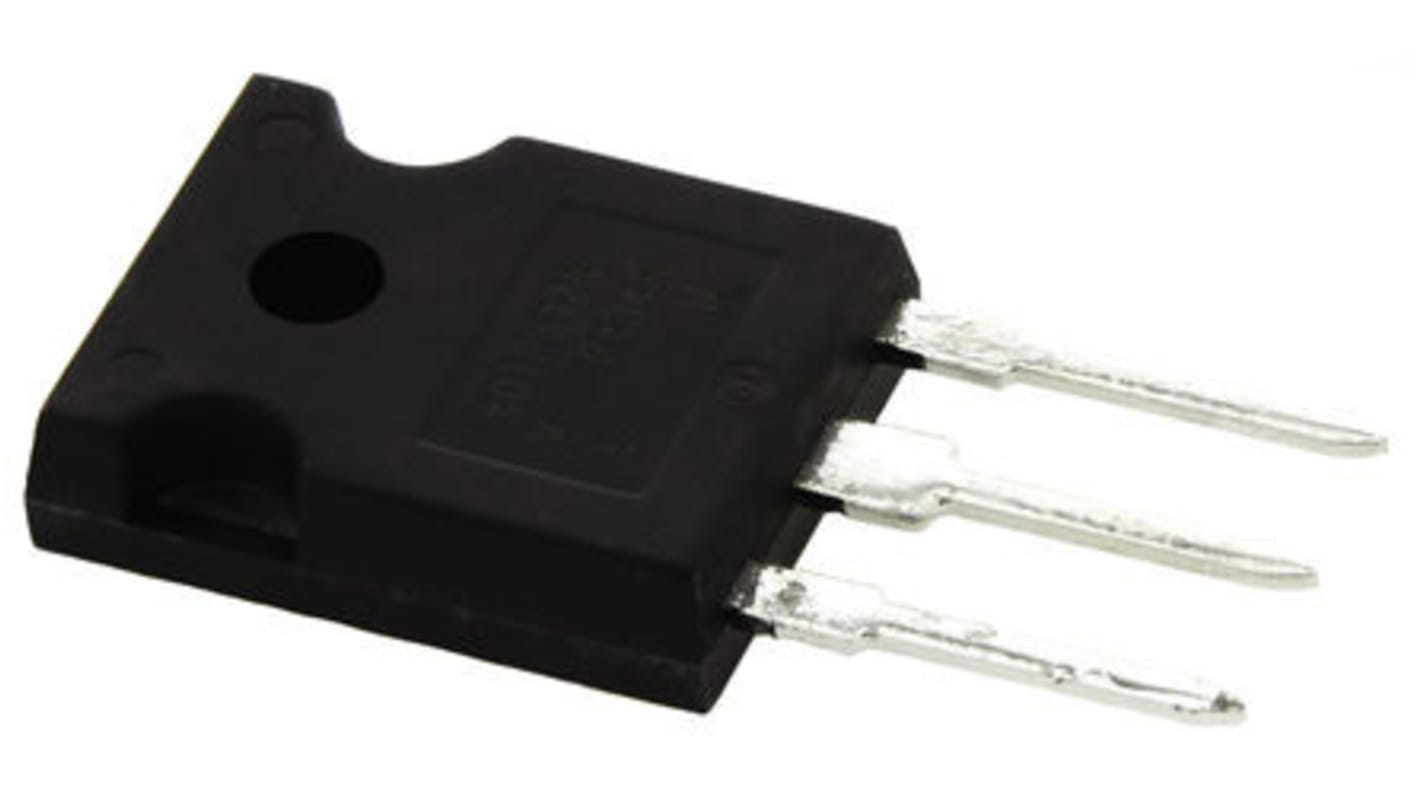

Vishay VS-40TPS12A-M3, Thyristor 1200V, 35A 40mA
- RS Stock No.:
- 919-4404
- Mfr. Part No.:
- VS-40TPS12A-M3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tube of 25 units)*
£109.95
(exc. VAT)
£131.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | £4.398 | £109.95 |
| 50 - 100 | £4.31 | £107.75 |
| 125 + | £4.178 | £104.45 |
*price indicative
- RS Stock No.:
- 919-4404
- Mfr. Part No.:
- VS-40TPS12A-M3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current | 35A | |
| Thyristor Type | SCR | |
| Package Type | TO-247AC | |
| Repetitive Peak Reverse Voltage | 1200V | |
| Surge Current Rating | 600A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 40mA | |
| Maximum Gate Trigger Voltage | 2.5V | |
| Maximum Holding Current | 150mA | |
| Pin Count | 3 | |
| Dimensions | 15.87 x 5.31 x 20.7mm | |
| Repetitive Peak Forward Blocking Voltage | 1200V | |
| Peak On-State Voltage | 1.85V | |
| Minimum Operating Temperature | -40 °C | |
| Repetitive Peak Off-State Current | 0.5mA | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current 35A | ||
Thyristor Type SCR | ||
Package Type TO-247AC | ||
Repetitive Peak Reverse Voltage 1200V | ||
Surge Current Rating 600A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 40mA | ||
Maximum Gate Trigger Voltage 2.5V | ||
Maximum Holding Current 150mA | ||
Pin Count 3 | ||
Dimensions 15.87 x 5.31 x 20.7mm | ||
Repetitive Peak Forward Blocking Voltage 1200V | ||
Peak On-State Voltage 1.85V | ||
Minimum Operating Temperature -40 °C | ||
Repetitive Peak Off-State Current 0.5mA | ||
Maximum Operating Temperature +125 °C | ||
- COO (Country of Origin):
- CN
Phase Control Thyristors, Vishay Semiconductor
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
