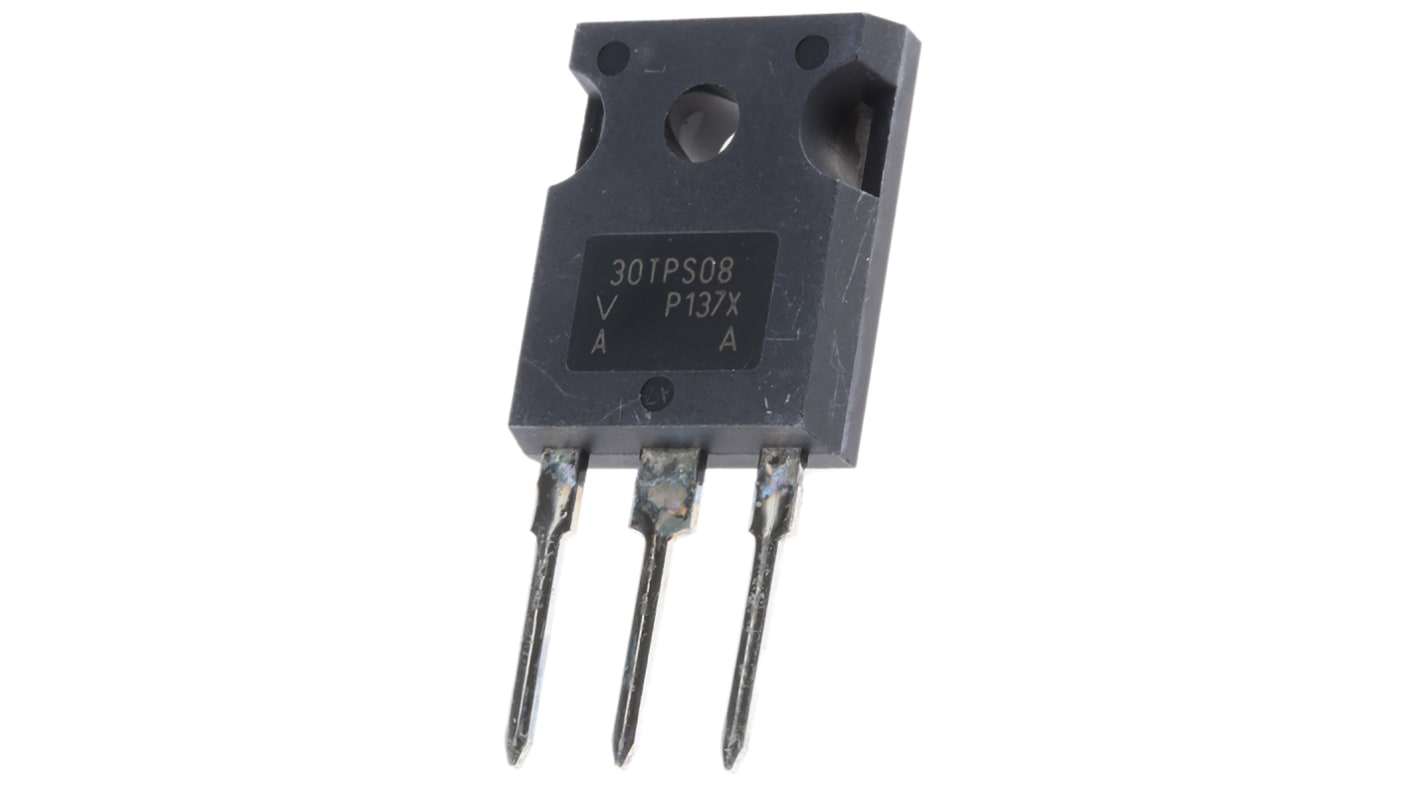

Vishay VS-30TPS08-M3, Thyristor 800V, 20A 60mA
- RS Stock No.:
- 357-3999
- Mfr. Part No.:
- VS-30TPS08-M3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£3.91
(exc. VAT)
£4.69
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Plus 30 unit(s) shipping from 22 October 2025
- Final 473 unit(s) shipping from 29 October 2025
Units | Per unit |
|---|---|
| 1 - 9 | £3.91 |
| 10 - 49 | £3.53 |
| 50 - 99 | £3.33 |
| 100 - 249 | £3.13 |
| 250 + | £2.90 |
*price indicative
- RS Stock No.:
- 357-3999
- Mfr. Part No.:
- VS-30TPS08-M3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current | 20A | |
| Thyristor Type | SCR | |
| Package Type | TO-247 | |
| Repetitive Peak Reverse Voltage | 800V | |
| Surge Current Rating | 300A | |
| Mounting Type | Through Hole | |
| Maximum Gate Trigger Current | 60mA | |
| Maximum Gate Trigger Voltage | 2.5V | |
| Maximum Holding Current | 100mA | |
| Pin Count | 3 | |
| Dimensions | 15.87 x 5.31 x 20.7mm | |
| Repetitive Peak Off-State Current | 10mA | |
| Maximum Operating Temperature | +125 °C | |
| Repetitive Peak Forward Blocking Voltage | 800V | |
| Minimum Operating Temperature | -40 °C | |
| Peak On-State Voltage | 1.3V | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current 20A | ||
Thyristor Type SCR | ||
Package Type TO-247 | ||
Repetitive Peak Reverse Voltage 800V | ||
Surge Current Rating 300A | ||
Mounting Type Through Hole | ||
Maximum Gate Trigger Current 60mA | ||
Maximum Gate Trigger Voltage 2.5V | ||
Maximum Holding Current 100mA | ||
Pin Count 3 | ||
Dimensions 15.87 x 5.31 x 20.7mm | ||
Repetitive Peak Off-State Current 10mA | ||
Maximum Operating Temperature +125 °C | ||
Repetitive Peak Forward Blocking Voltage 800V | ||
Minimum Operating Temperature -40 °C | ||
Peak On-State Voltage 1.3V | ||
RoHS Status: Exempt
Phase Control Thyristors, Vishay Semiconductor
The Vishay 30TPS high voltage series of silicon controlled rectifier are specifically designed for medium power switching and phase control applications. Typical applications are in input rectification (soft start) and these products are designed to be used with Vishay HPP input diodes, switches and output rectifiers which are available in identical package outlines.
Maximum average on-state current 20 A
operation temperature - 40 to 125°C
operation temperature - 40 to 125°C
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
