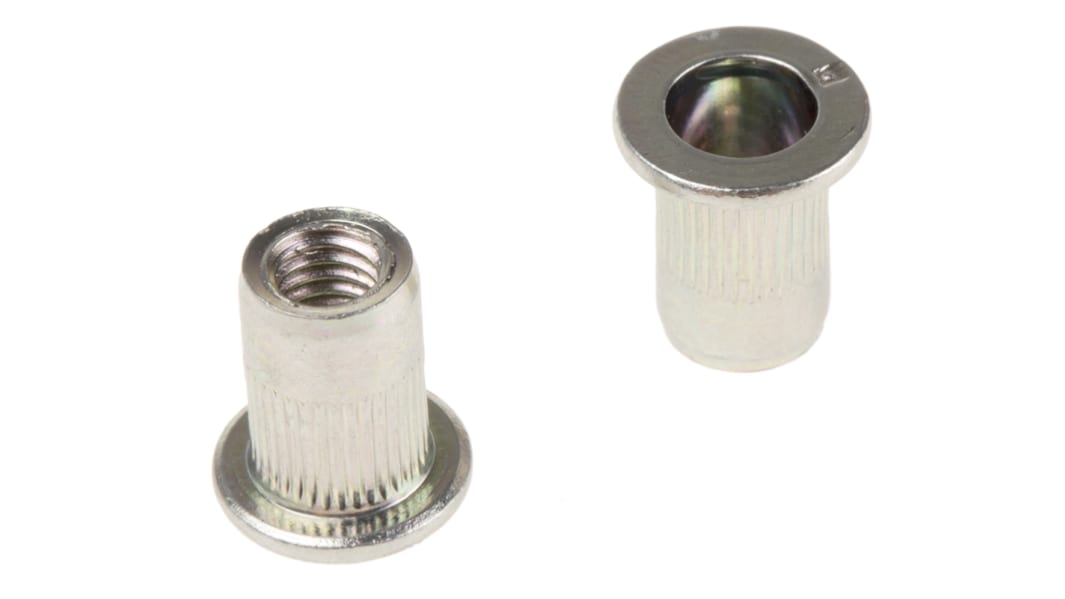

Böllhoff Plain, M6 Steel Threaded Insert, 13mm diameter 9mm Depth 14.5mm
- RS Stock No.:
- 425-7553
- Mfr. Part No.:
- 23307060230
- Brand:
- Böllhoff
Subtotal (1 lot of 100 units)*
£34.01
(exc. VAT)
£40.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Lot(s) | Per Lot | Per unit* |
---|---|---|
1 + | £34.01 | £0.34 |
*price indicative
- RS Stock No.:
- 425-7553
- Mfr. Part No.:
- 23307060230
- Brand:
- Böllhoff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Böllhoff | |
Thread Size | M6 | |
Flange Diameter | 13mm | |
Fixing Hole Diameter | 9mm | |
Body Outside Diameter | 13mm | |
Body Depth | 14.5mm | |
Material | Steel | |
Finish | Plain | |
Thickness of Material Maximum | 3mm | |
Thickness of Material Minimum | 0.5mm | |
Select all | ||
---|---|---|
Brand Böllhoff | ||
Thread Size M6 | ||
Flange Diameter 13mm | ||
Fixing Hole Diameter 9mm | ||
Body Outside Diameter 13mm | ||
Body Depth 14.5mm | ||
Material Steel | ||
Finish Plain | ||
Thickness of Material Maximum 3mm | ||
Thickness of Material Minimum 0.5mm | ||
Crimp nuts
Crimp nuts for screw fixing to thin panels wherever rear access is impossible.
When fitting, the serrated part of the nut expands inside the hole to provide high torque resistance.
The special design of these nuts ensures excellent resistance to rotation and vibration.
Both flanged and flush type nuts can be fitted with the same tool.
When fitting, the serrated part of the nut expands inside the hole to provide high torque resistance.
The special design of these nuts ensures excellent resistance to rotation and vibration.
Both flanged and flush type nuts can be fitted with the same tool.
Note
Nuts sold separately, for the full kit please refer to RS stock no 425-7480
