RS PRO Type T Exposed Junction Thermocouple 2m Length, 1/0.315mm Diameter, -75°C → +250°C
- RS Stock No.:
- 262-3199
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£82.71
(exc. VAT)
£99.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 50 unit(s) shipping from 27 October 2025
- Plus 80 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £8.271 | £82.71 |
*price indicative
- RS Stock No.:
- 262-3199
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thermocouple Type | T | |
| Probe Diameter | 1/0.315mm | |
| Probe Length | 2m | |
| Probe Material | PFA | |
| Maximum Temperature Sensed | +250°C | |
| Termination Type | Miniature Plug | |
| Cable Length | 2m | |
| Standards Met | IEC, RoHS Compliant | |
| Minimum Temperature Sensed | -75°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thermocouple Type T | ||
Probe Diameter 1/0.315mm | ||
Probe Length 2m | ||
Probe Material PFA | ||
Maximum Temperature Sensed +250°C | ||
Termination Type Miniature Plug | ||
Cable Length 2m | ||
Standards Met IEC, RoHS Compliant | ||
Minimum Temperature Sensed -75°C | ||
- COO (Country of Origin):
- GB

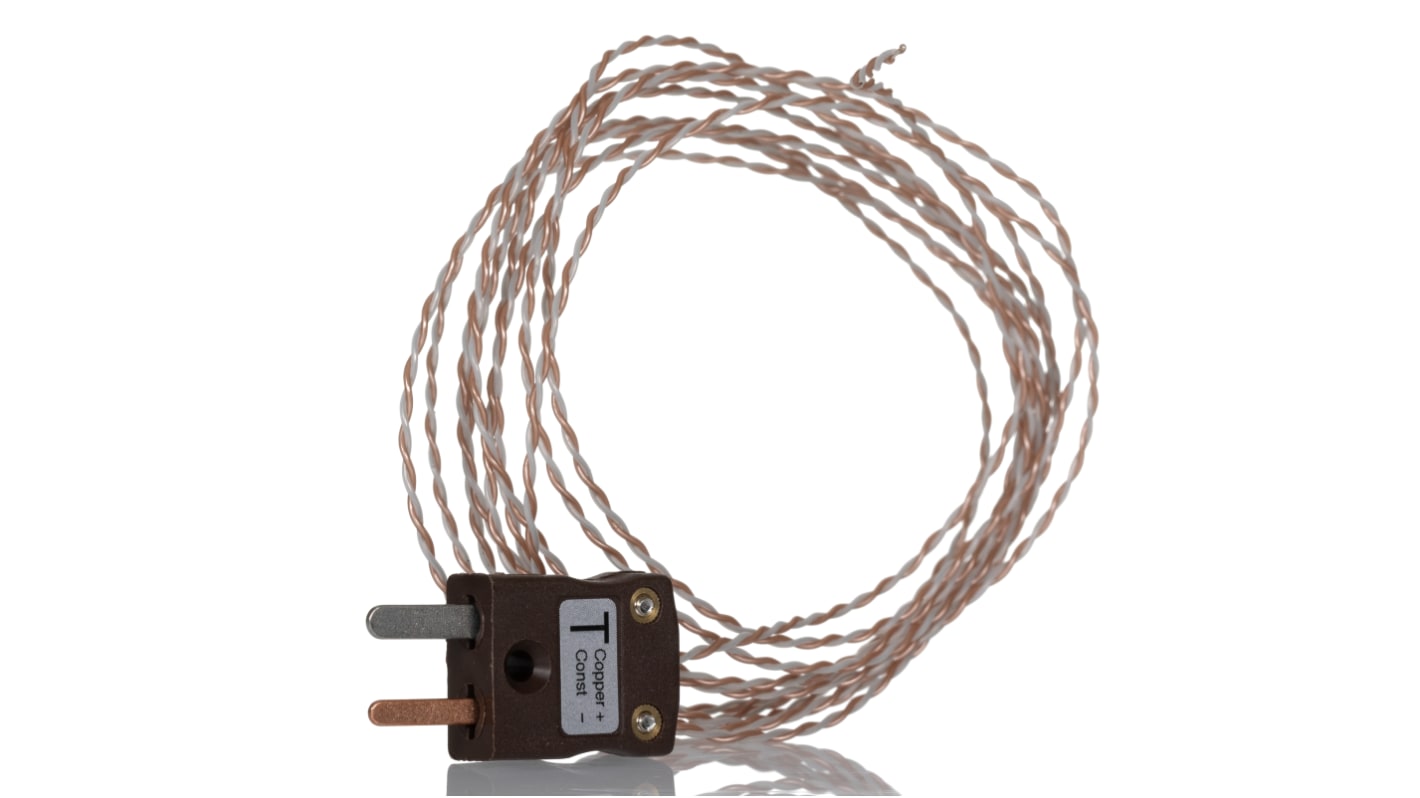

RS PRO IEC Colour Coded Exposed Junction Miniature Thermocouple Connector (Type T)
A miniature type T thermocouple plug connector featuring polarised contacts and an exposed junction PFA twin-twisted wire well suited to test and measurement applications.
IEC colour coded and clearly marked with the polarity on the housing for easy and quick identification helping prevent accidental cross or disconnection.
The type T thermocouple is constructed from a robust rewireable Thermoplastic plug with a PFA insulated lead and is capable of operating at temperature range of -75 to +250°C for a hardwearing IEC thermocouple suitable for harsh industrial environments.
Supplied in packs of 10, for packs of 1 see RS PRO 123-6329
Features and Benefits
Features and Benefits
Type T thermocouple
Class 1 tolerance
IEC colour coded
Exposed junction
Conductor core/ strands of 1 x 0.315 mm
Lead length of 2m
PFA insulation
Miniature flat pin plug
Plug constructed from robust thermoplastic
Able to withstand temperatures of 250°C
Ideal for test and measurement applications
Standards and Approvals: IEC-584-3
