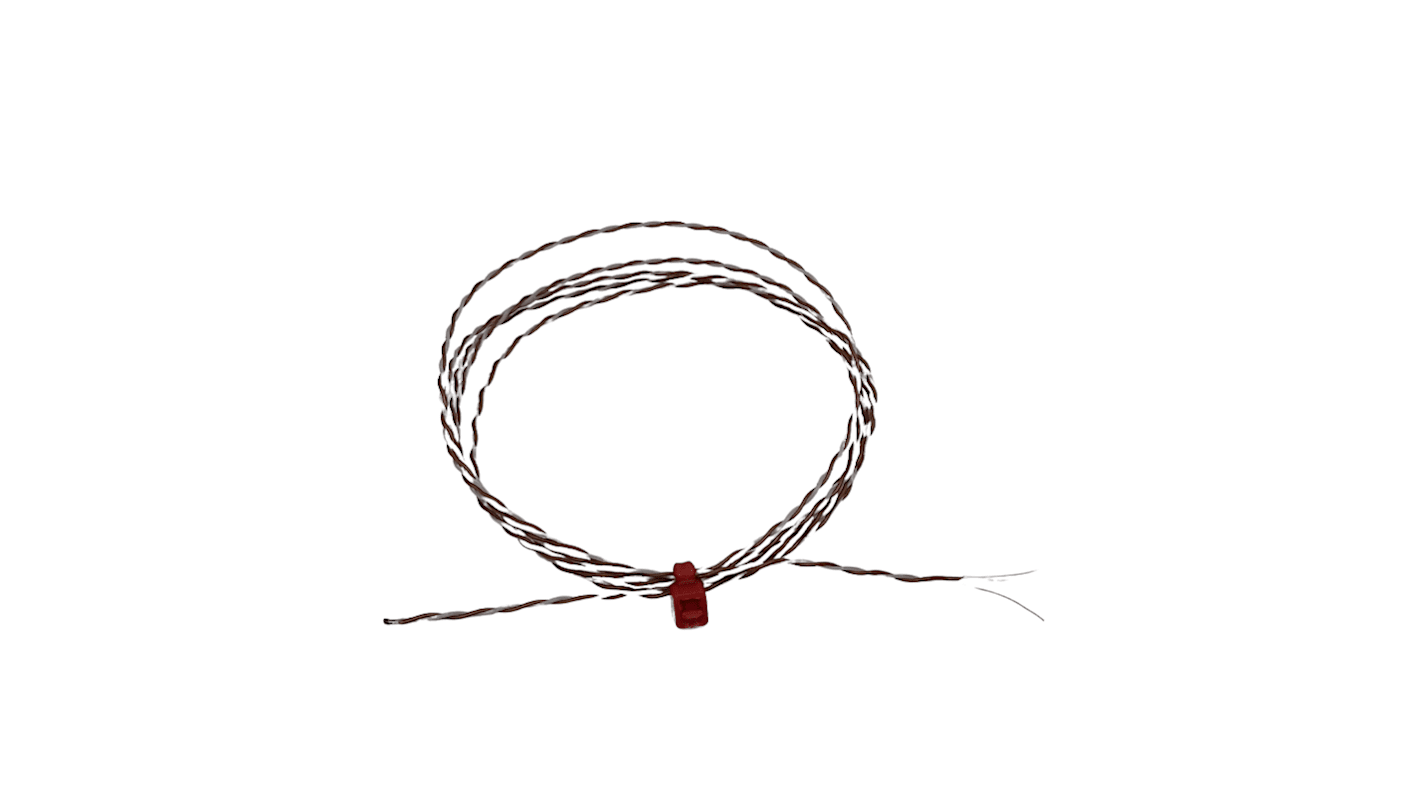

RS PRO Type T Exposed Junction Thermocouple 2m Length, 7/0.2mm Diameter, -75°C → +250°C
- RS Stock No.:
- 271-3180
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.83
(exc. VAT)
£10.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 16 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.83 |
*price indicative
- RS Stock No.:
- 271-3180
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thermocouple Type | T | |
| Probe Diameter | 7/0.2mm | |
| Probe Length | 2m | |
| Probe Material | PFA | |
| Maximum Temperature Sensed | +250°C | |
| Series | XQ | |
| Termination Type | Bare Wire Tail | |
| Cable Length | 2m | |
| Standards Met | IEC, RoHS Compliant | |
| Minimum Temperature Sensed | -75°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thermocouple Type T | ||
Probe Diameter 7/0.2mm | ||
Probe Length 2m | ||
Probe Material PFA | ||
Maximum Temperature Sensed +250°C | ||
Series XQ | ||
Termination Type Bare Wire Tail | ||
Cable Length 2m | ||
Standards Met IEC, RoHS Compliant | ||
Minimum Temperature Sensed -75°C | ||
- COO (Country of Origin):
- GB
RS PRO Type T Thermocouple
This RS PRO range of Type J, K and T fast response welded exposed junction thermocouples have been designed with the highest quality and versatility in mind and feature fine wire temperature sensors and insulated twin-twisted 1/0.2 mm lead. These thermocouples have an exposed welded junction which enables them to operate with a fast response time and a Class 1 tolerance for optimum performance, offering the quality you would expect from RS PRO.
Features and Benefits
- IEC-584-3 class 1 tolerance for optimum accuracy
- Class 1 cable specification with a bare tail’s termination
- Exposed welded junction for fast response
- PFA insulated twin-twisted lead offers versatility and flexibility
Temperature ranges from -75 to +250°C
Applications
These RS PRO type K, J and T thermocouple temperature sensors are useful in a wide range of temperature monitoring applications and environments, particularly in test and development applications including but not limited to:
Test and measurement
Temperature mapping
OEM applications
Test and measurement
Temperature mapping
OEM applications
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
