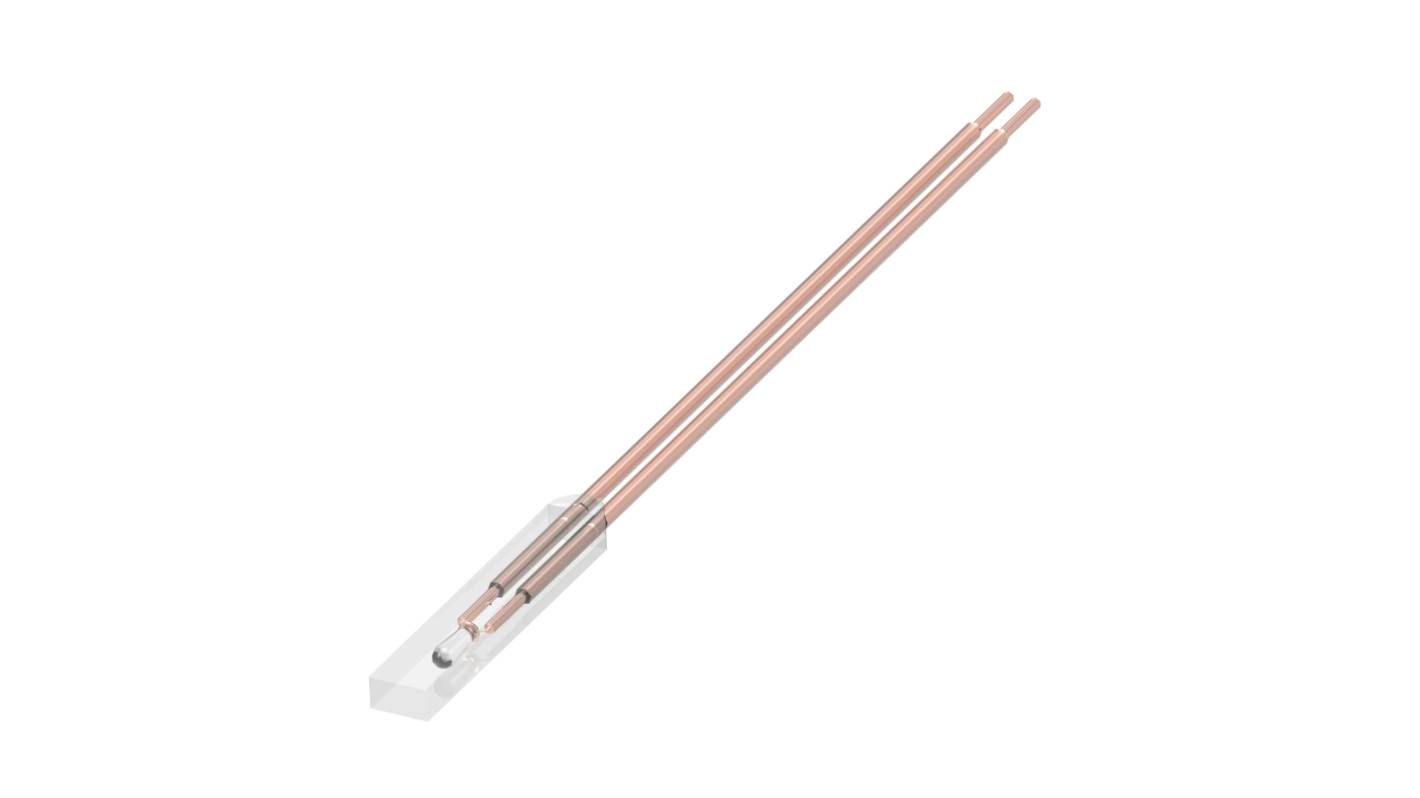

TE Connectivity Fluoroplastics NTC Temperature Sensor, 10kΩ, -40°C Min, +200°C Max
- RS Stock No.:
- 598-004
- Mfr. Part No.:
- 20031343-00
- Brand:
- TE Connectivity
Subtotal (1 bag of 1600 units)*
£7,088.00
(exc. VAT)
£8,512.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 January 2028
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
1600 + | £4.43 | £7,088.00 |
*price indicative
- RS Stock No.:
- 598-004
- Mfr. Part No.:
- 20031343-00
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Thermistor Type | NTC | |
Minimum Temperature Sensed | -40°C | |
Maximum Temperature Sensed | +200°C | |
Response Time | 7 s | |
Material | Fluoroplastics | |
Resistance | 10kΩ | |
Termination | Cable | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Thermistor Type NTC | ||
Minimum Temperature Sensed -40°C | ||
Maximum Temperature Sensed +200°C | ||
Response Time 7 s | ||
Material Fluoroplastics | ||
Resistance 10kΩ | ||
Termination Cable | ||
- COO (Country of Origin):
- CN
The TE Connectivity Motor Platform Temperature Sensor r is designed to monitor the temperature of the electric motor system. The design combines a high precision and high sensitivity NTC thermistor, which is sealed and protected by fluoroplastics material. The design provides a rectangular or cylinder shape and smaller size, making the assembly well suited to motor stator system, industrial system or other temperature monitoring system. The sensor design to fulfill reliability requirements, including high and low temperature storage and temperature cycling testing.
Shrink Tube Encapsulation
Wide Temperature Design
Rectangular Design
RoHS and REACH compliant
ATF oil proof
Wide Temperature Design
Rectangular Design
RoHS and REACH compliant
ATF oil proof
