FLIR E5-XT FLIR E5 XT USB, WiFi Thermal Imaging Camera with WiFi, 400 °C 160 x 120 pixel Detector Resolution

RS Stock No.:: 189-1586
Mfr. Part No.:: FLIR E5 XT WiFi + MR40
Brand:: FLIR

FLIR E5-XT FLIR E5 XT USB, WiFi Thermal Imaging Camera with WiFi, 400 °C 160 x 120 pixel Detector Resolution

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Your uptime, our priority

Data centres need power, cooling and confidence. Total confidence that everything will work seamlessly, all the time. When each second of uptime matters, data centre managers need to rely on partners like RS that can help keep critical systems stable, efficient and ready for growth.

Discover Now

RS Stock No.:: 189-1586
Mfr. Part No.:: FLIR E5 XT WiFi + MR40
Brand:: FLIR

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FLIR
	Maximum Temperature Measurement	400°C
	Battery Type	Lithium-ion
	Product Type	Thermal Imaging Camera with WiFi
	Detector Resolution	160 x 120 pixel
	Display Resolution	320 x 240 pixel
	Interface Type	USB, WiFi
	Horizontal Angle of View	45°
	Thermal Sensitivity	100mK
	Vertical Angle of View	34°
	Focus Type	Focus-Free
	Power Source	Battery
	Refresh Rate	9Hz
	Battery Life	4h
	Minimum Focus Distance	0.5m
	Standards/Approvals	No
	Weight	570g
	Series	FLIR E5 XT
	Diagonal Display Size	76.2mm
	Accuracy	±2 %, ±2 °C (±3.6 °F)
	Image Storage	MicroSD
	Spatial Resolution IFOV	5.2mrad
	Emissivity	0.1 to 1
	Width	95mm
	Length	244mm
	Auto Capture on Camera	Yes
	Radiometric Video on Camera	Yes
	Battery Level Indicator	Yes
	Hazardous Area Certification	No
	Voice Recorder	Yes
	Model Number	E5-XT
	Visual Camera	Yes
	Image Enhancement	Yes

	Select all
	Brand FLIR
	Maximum Temperature Measurement 400°C
	Battery Type Lithium-ion
	Product Type Thermal Imaging Camera with WiFi
	Detector Resolution 160 x 120 pixel
	Display Resolution 320 x 240 pixel
	Interface Type USB, WiFi
	Horizontal Angle of View 45°
	Thermal Sensitivity 100mK
	Vertical Angle of View 34°
	Focus Type Focus-Free
	Power Source Battery
	Refresh Rate 9Hz
	Battery Life 4h
	Minimum Focus Distance 0.5m
	Standards/Approvals No
	Weight 570g
	Series FLIR E5 XT
	Diagonal Display Size 76.2mm
	Accuracy ±2 %, ±2 °C (±3.6 °F)
	Image Storage MicroSD
	Spatial Resolution IFOV 5.2mrad
	Emissivity 0.1 to 1
	Width 95mm
	Length 244mm
	Auto Capture on Camera Yes
	Radiometric Video on Camera Yes
	Battery Level Indicator Yes
	Hazardous Area Certification No
	Voice Recorder Yes
	Model Number E5-XT
	Visual Camera Yes
	Image Enhancement Yes

COO (Country of Origin):: EE

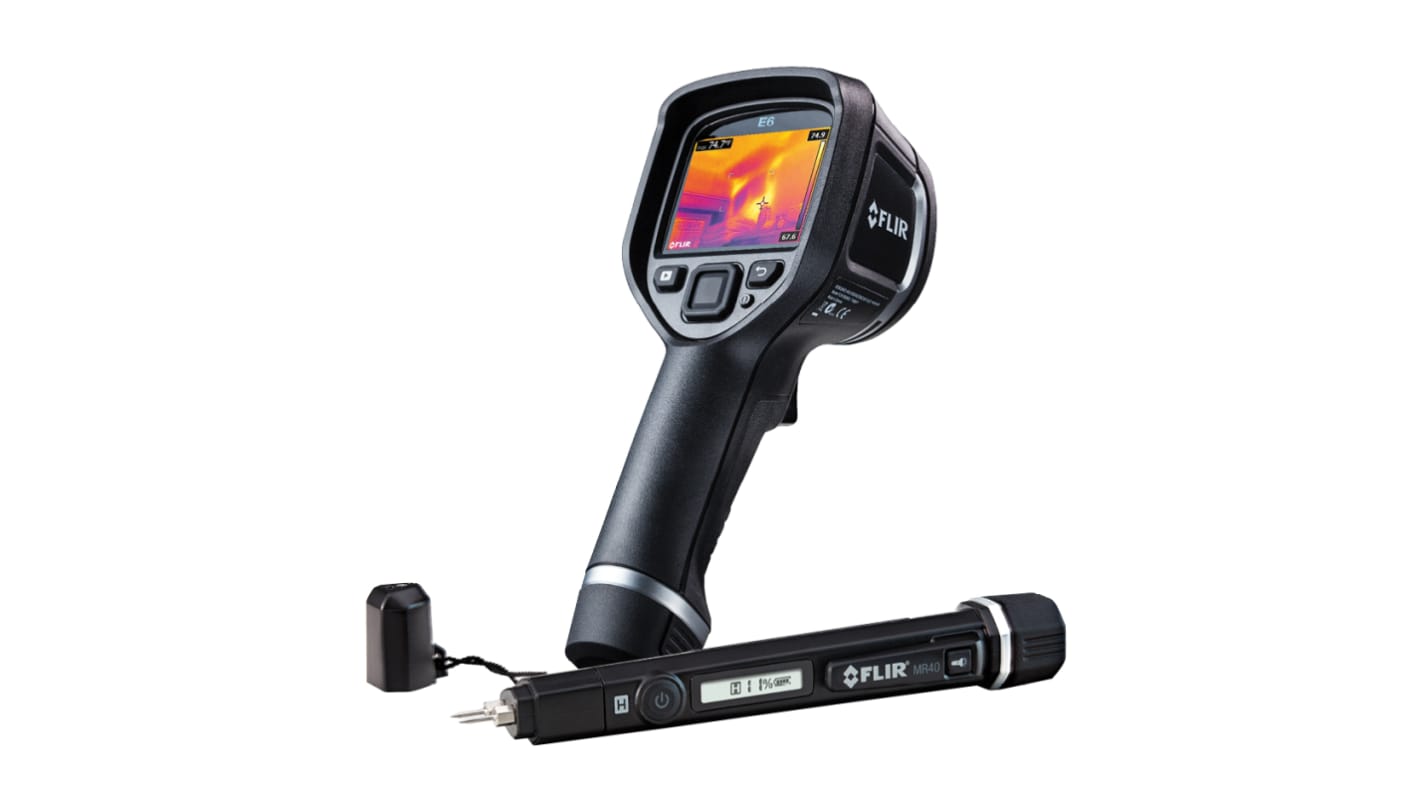

FLIR Thermal Imaging Camera With Wifi, 3 in Display, Focus-Free - FLIR E5 XT WiFi + MR40

This FLIR thermal imaging camera with advanced features delivers high-resolution thermal images for accurate temperature measurements. Ideal for building inspections, this camera offers precise thermal data with a focus-free design.

Features & Benefits

• With a resolution of 160 x 120 pixels, the camera provides detailed thermal images

• Offers a temperature measurement range of -20 to +400 °C with ±2% accuracy

• The camera is easy to operate with a focus-free feature

• Weighing 570g, it is compact and suitable for on-the-go inspections

• Equipped with Wi-Fi, allowing for seamless data transfer

Applications

• Can be used for inspecting buildings for temperature anomalies and monitoring structural integrity.

Can it provide accurate temperature measurement?

The FLIR E5 XT offers ±2% accuracy and a range of -20 to +400 °C for precise temperature measurements.

Is it suitable for body temperature measurement?

This thermal imaging camera is not designed for body temperature measurements.

Will it work in harsh environments?

Yes, it is rugged and can withstand tough conditions during inspections.
