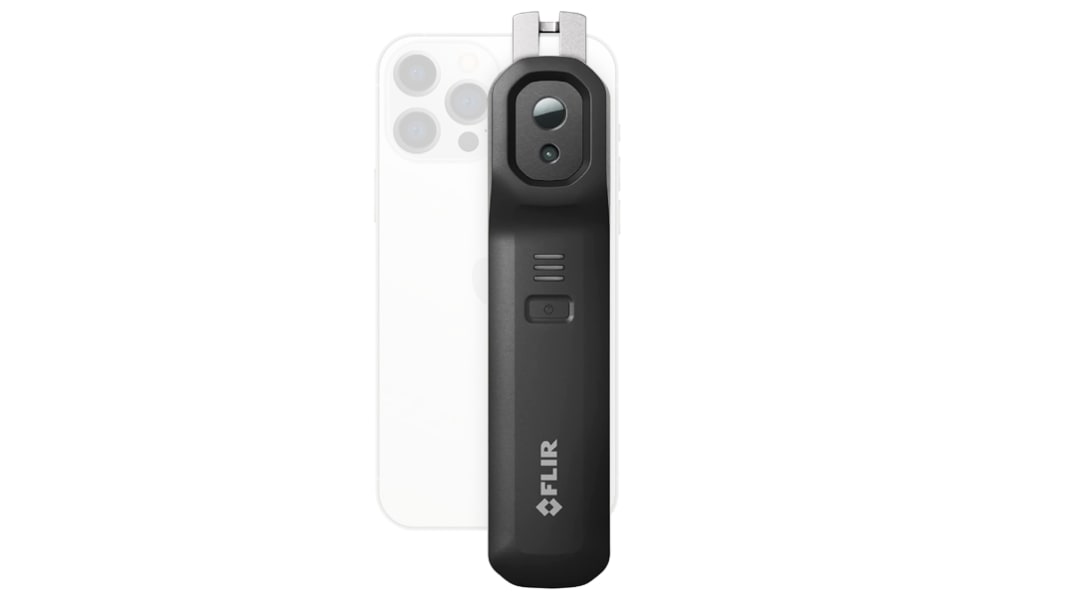

FLIR ONE EDGE PRO for Smartphones Bluetooth, WiFi Thermal Imaging Camera, 0 → +400 °C, 160 x 120pixel Detector
- RS Stock No.:
- 261-9712
- Distrelec Article No.:
- 303-66-752
- Mfr. Part No.:
- FLIR ONE Edge Pro
- Brand:
- FLIR
Subtotal (1 unit)*
£435.00
(exc. VAT)
£522.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 45 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £435.00 |
*price indicative
- RS Stock No.:
- 261-9712
- Distrelec Article No.:
- 303-66-752
- Mfr. Part No.:
- FLIR ONE Edge Pro
- Brand:
- FLIR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FLIR | |
| Temperature Measurement Range | 0 → +400 °C | |
| Detector Resolution | 160 x 120pixel | |
| Display Resolution | 640 x 480pixel | |
| Interface Type | Bluetooth, WiFi | |
| Model Number | ONE EDGE PRO for Smartphones | |
| Thermal Sensitivity | 70mK | |
| Best Temperature Measurement Accuracy | +120 °C | |
| Focus Type | Fixed | |
| Refresh Rate | 8.7Hz | |
| Minimum Focus Distance | 30cm | |
| For Use With | Android, iPhones | |
| Minimum Focus | 0.3 m | |
| Field of View | 42 °, 54 ° | |
| Depth | 149mm | |
| Emissivity | 95% | |
| Accuracy | ±3 °C | |
| Image Enhancement | MSX | |
| Horizontal Detector Resolution | 160pixel | |
| Battery Level Indicator | No | |
| Radiometric Video on Camera | Yes | |
| Auto Capture on Camera | No | |
| IR/Visual Image Combination | MSX | |
| Maximum Temperature Measurement | +120 °C | |
| Voice Recorder | No | |
| Dimensions | 37.5 x 35 x 149mm | |
| Vertical Field of View | 42° | |
| Weight | 153g | |
| Maximum Focus | 30cm | |
| Visual Camera | Yes | |
| Dimensions L x W x D | 37.5 x 35 x 149mm | |
| Horizontal Field of View | 54° | |
| Vertical Detector Resolution | 120pixel | |
| Select all | ||
|---|---|---|
Brand FLIR | ||
Temperature Measurement Range 0 → +400 °C | ||
Detector Resolution 160 x 120pixel | ||
Display Resolution 640 x 480pixel | ||
Interface Type Bluetooth, WiFi | ||
Model Number ONE EDGE PRO for Smartphones | ||
Thermal Sensitivity 70mK | ||
Best Temperature Measurement Accuracy +120 °C | ||
Focus Type Fixed | ||
Refresh Rate 8.7Hz | ||
Minimum Focus Distance 30cm | ||
For Use With Android, iPhones | ||
Minimum Focus 0.3 m | ||
Field of View 42 °, 54 ° | ||
Depth 149mm | ||
Emissivity 95% | ||
Accuracy ±3 °C | ||
Image Enhancement MSX | ||
Horizontal Detector Resolution 160pixel | ||
Battery Level Indicator No | ||
Radiometric Video on Camera Yes | ||
Auto Capture on Camera No | ||
IR/Visual Image Combination MSX | ||
Maximum Temperature Measurement +120 °C | ||
Voice Recorder No | ||
Dimensions 37.5 x 35 x 149mm | ||
Vertical Field of View 42° | ||
Weight 153g | ||
Maximum Focus 30cm | ||
Visual Camera Yes | ||
Dimensions L x W x D 37.5 x 35 x 149mm | ||
Horizontal Field of View 54° | ||
Vertical Detector Resolution 120pixel | ||
RoHS Status: Exempt
- COO (Country of Origin):
- EE
FLIR Thermal Imaging Camera, ±3 °C Accuracy, For Use With Android and iPhones - 11002-0201
This FLIR thermal imaging camera with a resolution of 160 x 120 pixels and has a high-accuracy thermal camera designed for use with Android and iPhones. The camera offers a wide temperature measurement range and bluetooth/wifi interface for seamless connectivity.
Features & Benefits
• High accuracy thermal camera for precise measurements
• Detector Resolution of 160 x 120 pixels for detailed imaging
• Bluetooth and WiFi interface for easy connectivity with smartphones
• Compatible with Android and iPhones for versatile use
• Wide temperature measurement range from 0 to +400 °C
• Detector Resolution of 160 x 120 pixels for detailed imaging
• Bluetooth and WiFi interface for easy connectivity with smartphones
• Compatible with Android and iPhones for versatile use
• Wide temperature measurement range from 0 to +400 °C
Applications
• Ideal for inspecting areas accurately with proprietary image enhancement features
• Reliable for remotely inspecting out-of-reach targets with one-handed operation
• Reliable for remotely inspecting out-of-reach targets with one-handed operation
Can it connect wirelessly to smartphones?
Yes, it has Bluetooth and WiFi interfaces for wireless connectivity with Android and iPhones.
Will it provide detailed thermal images?
Yes, with a Detector Resolution of 160 x 120 pixels, it offers crisp and clear images.
Is the camera compatible with a wide temperature measurement range?
Yes, it can measure temperatures ranging from 0 to +400 °C accurately.
Will it work with my phone case?
The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach - or clip it onto your phone or tablet for one-handed operation. With the OneFit™ feature, the FLIR ONE connector will adjust up to an additional 4 mm in length. This length is compatible with most protective cases, so you don't have to choose between thermal vision and safeguarding your device. We have not tested all cases but have picked many of our favorites. The 4-mm extension will not complete a connection through the Lifeproof and Otter Box Defender cases, so an OTG-compliant adapter will be required (not offered by FLIR).
What are the camera models supported with the FLIR ONE App version 5.2.0 and 3.6.1?
FLIR ONE Edge, FLIR ONE Edge Pro, FLIR ONE Pro, FLIR ONE Pro LT &
FLIR ONE Gen 3 are the camera models supported with FLIR ONE App version 5.2.0. FLIR ONE Pro, FLIR ONE Pro LT &
FLIR ONE Gen 3 are the camera models supported with the FLIR ONE App version 3.6.1.
What are the minimum phone requirements for both the versions of FLIR ONE App?
Wi-Fi connectivity (only for FLIR ONE Edge
FLIR ONE Edge Pro), Bluetooth connectivity (only for FLIR ONE Edge
FLIR ONE Edge Pro), USB-C charging port. Supported 64-bit ABIs (arm64-v8a), Capabilities: GPS, Location, OTG USB and Microphone
Permissions: Location, Microphone, and Nearby Devices.
What are android OS versions supported for FLIR ONE v5.2.0 and v3.6.1?
Android 14, Android 13, Android 12, Android 11 are supported for v5.2.0 and Android 10 and Android 9 are supported for v3.6.1.
Software Options:
