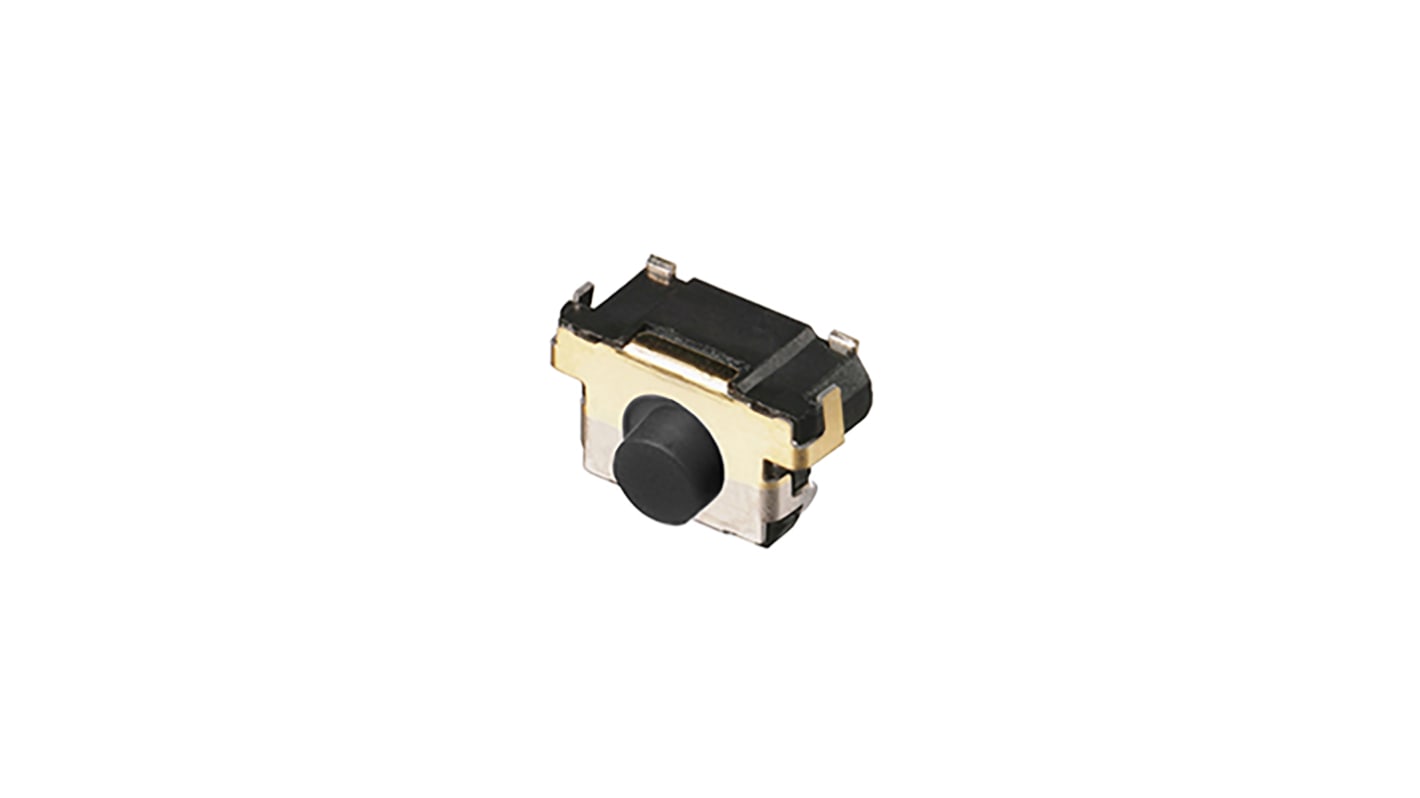

Panasonic Grey Side Tactile Switch, SPST 10 μA → 20 mA 0.85mm Edge Mount

View all Tactile Switches

Subtotal (1 pack of 20 units)*

£12.78

(exc. VAT)

£15.34

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 +£0.639£12.78

*price indicative

RS Stock No.:
178-9269
Mfr. Part No.:
EVQP4KB3Q
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Contact Configuration

SPST

Terminal Type

Solder

Switch Operation

Momentary

Actuator Length

0.85mm

Actuator Colour

Grey

Actuator Type

Side

Length

6.2mm

Width

2.55mm

Dimensions

6.2 x 2.55mm

Mounting Type

Edge Mount

Contact Current Rating

10 μA → 20 mA

Voltage Rating

2 → 15V dc

Operating Force

3.5 N

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +85°C

Maximum Operating Temperature

+85°C

COO (Country of Origin):
JP
Features
External dimensions : 6.2 mmx2.55 mm (Excluding
the pushplate),Height3.5mm(Printed circuit board
beingaslowas1.35mm)
Side-operational Middle Travel ( 0.7 mm )
With a high operating force(5.0N)
Improved soldering strength in the operating direction
When mounted on PC board edge
Recommended Applications
Operation switches for portable electronic equipment
(Mobile phones, Digital still cameras, Camcorders
Portable audio players, etc.)
Keyless entry (car electronics)
Car audio equipment
