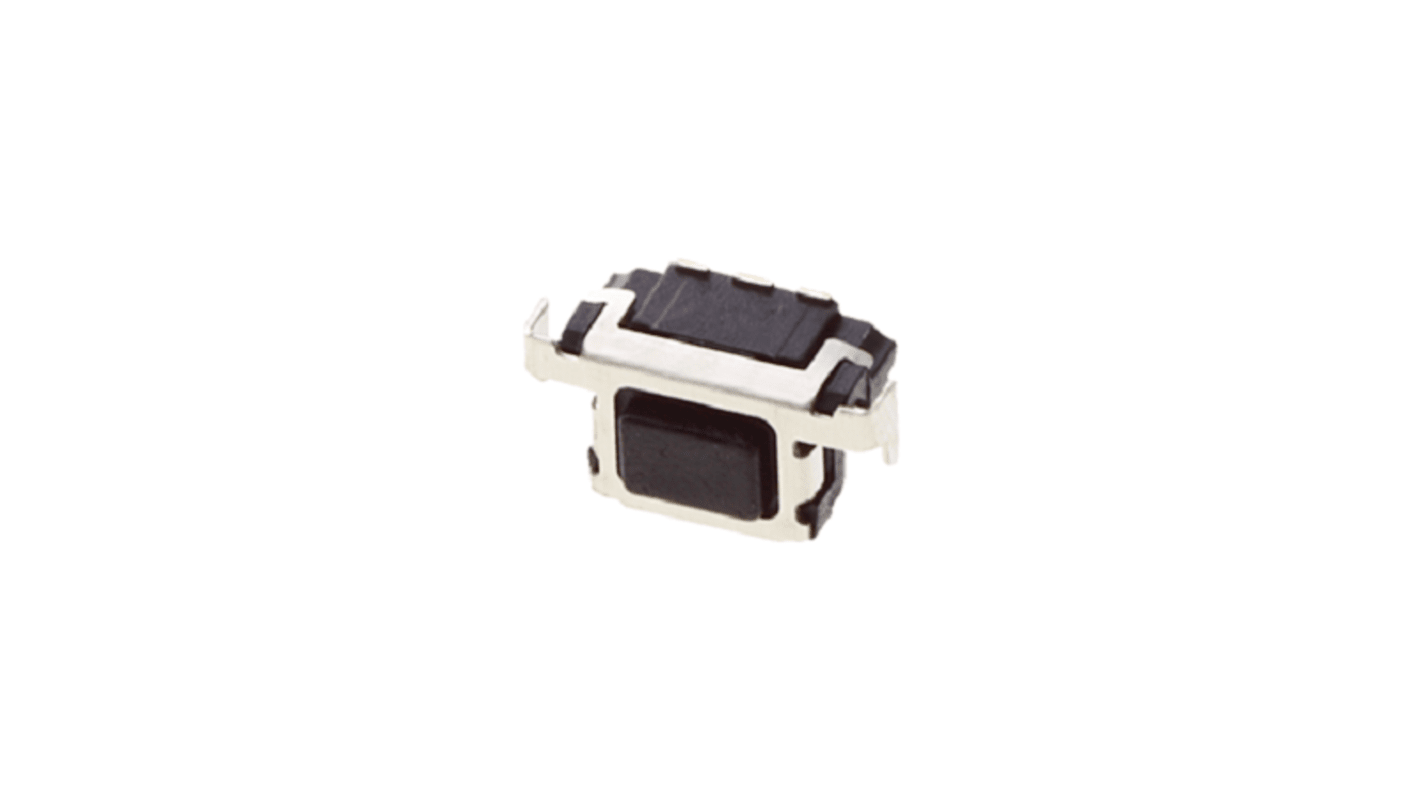

Panasonic Black, Grey Tactile Switch Push Plate, 2.2 mm, SPST 20mA 15 V dc, Edge
- RS Stock No.:
- 238-3705
- Mfr. Part No.:
- EVPAEGE2A
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (Supplied on a Reel)
£4.78
(exc. VAT)
£5.74
(inc. VAT)
- RS Stock No.:
- 238-3705
- Mfr. Part No.:
- EVPAEGE2A
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Solder | |
| Switch Operation | Push-On | |
| Actuator Colour | Black, Grey | |
| Actuator Length | 2.2mm | |
| Illuminated | No | |
| Mount Type | Edge | |
| Actuator Style | Push Plate | |
| Contact DC Voltage | 15V dc | |
| Switch Contact Current | 20mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | EVPAE | |
| Height | 2.6mm | |
| Operating Force | 1.6N | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Solder | ||
Switch Operation Push-On | ||
Actuator Colour Black, Grey | ||
Actuator Length 2.2mm | ||
Illuminated No | ||
Mount Type Edge | ||
Actuator Style Push Plate | ||
Contact DC Voltage 15V dc | ||
Switch Contact Current 20mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series EVPAE | ||
Height 2.6mm | ||
Operating Force 1.6N | ||
- COO (Country of Origin):
- JP
The Panasonic 4.5 mm x 2.2 mm side-operational edge mount has improved soldering strength in the operating direction. It has long operational life. The product measure against electro static discharge ( ESD ).
Operation switches for portable electronic equipment ( Mobile phones, Digital still cameras, Camcorders Portable audio players, etc. )
Type snap action / push-on type SPST
Electrical rating 10 μA 2 V DC to 20 mA 15 V DC ( Resistive load )
Operating tempe
