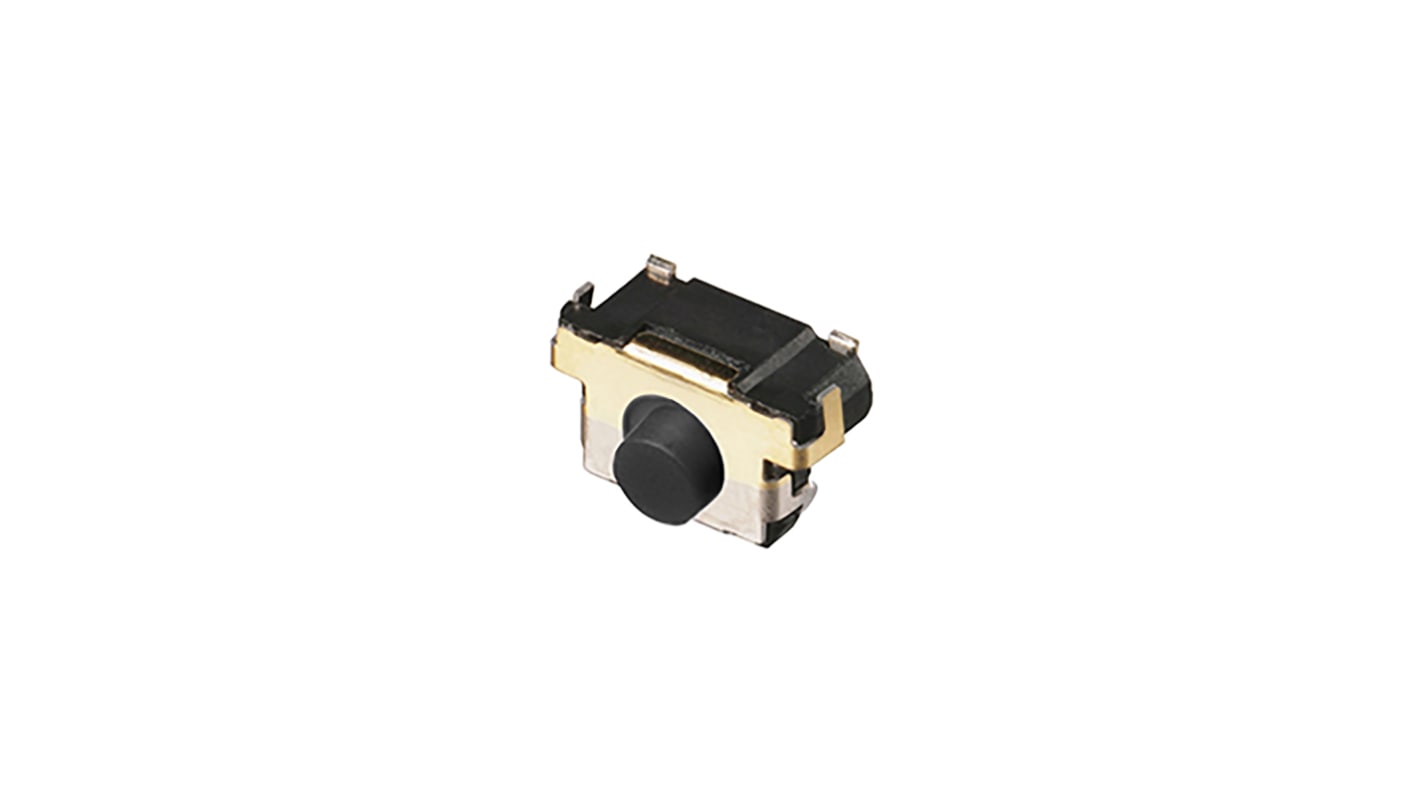

Panasonic Black Tactile Switch Side, 0.85 mm, SPST 10 μA, 20mA 15 V dc, Edge
- RS Stock No.:
- 178-9018
- Mfr. Part No.:
- EVQP4MB3K
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 20)
£16.06
(exc. VAT)
£19.27
(inc. VAT)
- RS Stock No.:
- 178-9018
- Mfr. Part No.:
- EVQP4MB3K
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Length | 6.2mm | |
| Actuator Length | 0.85mm | |
| Width | 2.55mm | |
| Illuminated | No | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | Edge | |
| Actuator Style | Side | |
| Contact DC Voltage | 15V dc | |
| Switch Contact Current | 10μA, 20μA | |
| Maximum Operating Temperature | 85°C | |
| Series | EVQP4 | |
| Standards/Approvals | RoHS | |
| Height | 3.5mm | |
| Operating Force | 5N | |
| Mechanical Life | 200000Operations | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Length 6.2mm | ||
Actuator Length 0.85mm | ||
Width 2.55mm | ||
Illuminated No | ||
Minimum Operating Temperature -40°C | ||
Mount Type Edge | ||
Actuator Style Side | ||
Contact DC Voltage 15V dc | ||
Switch Contact Current 10μA, 20μA | ||
Maximum Operating Temperature 85°C | ||
Series EVQP4 | ||
Standards/Approvals RoHS | ||
Height 3.5mm | ||
Operating Force 5N | ||
Mechanical Life 200000Operations | ||
- COO (Country of Origin):
- JP
Features
External dimensions : 6.2 mmx2.55 mm (Excluding
the pushplate),Height3.5mm(Printed circuit board
beingaslowas1.35mm)
Side-operational Middle Travel ( 0.7 mm )
With a high operating force(5.0N)
Improved soldering strength in the operating direction
When mounted on PC board edge
Recommended Applications
Operation switches for portable electronic equipment
(Mobile phones, Digital still cameras, Camcorders
Portable audio players, etc.)
Keyless entry (car electronics)
Car audio equipment
