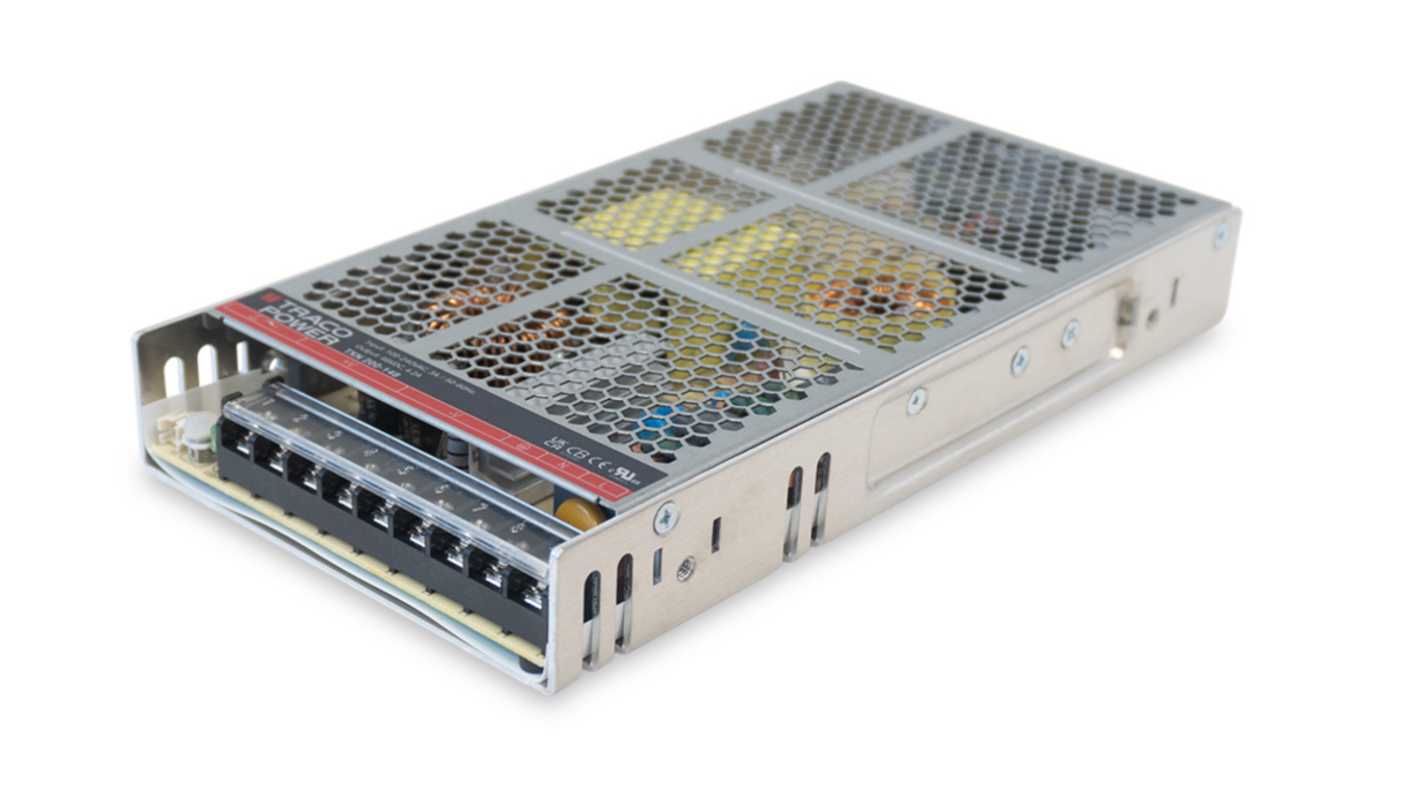

TRACOPOWER AC/DC Power Supply, TXN 200-148 48V dc, 16000 mA, 200 W, Input 90V ac to 264V ac

View all Switching Power Supplies

Subtotal (1 unit)*

£39.10

(exc. VAT)

£46.92

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 7 unit(s) shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£39.10

*price indicative

RS Stock No.:
219-981
Mfr. Part No.:
TXN 200-148
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

AC/DC Power Supply

Maximum Output Voltage

48V dc

Number of Outputs

1

Mount Type

Chassis

Power

200W

SMPS Output Current

16000 mA

Minimum Operating Temperature

30°C

Maximum Operating Temperature

70°C

Length

215mm

Width

115 mm

Standards/Approvals

RoHS

Weight

800g

Depth

50mm

Maximum Input Voltage

264V ac

Series

TXN 200

Efficiency

89%

Minimum Input Voltage

90V ac

Output Current

4.2A

Hazardous Area Certification

No

COO (Country of Origin):
CN
The TRACOPOWER TXN is a cost efficient, metal enclosed AC/DC power supplies series and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, they are easy to install in any equipment. Active PFC (>0.9), internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. They are having universal input (90-264 VAC) and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).

Compact metal case with screw terminal block

Universal input 90 264 VAC

Input and Output reinforced isolation 3000 VAC

Internal EN 55032 class B filter

High efficiency up to 89 percent

Short circuit protection

Overvoltage and overload protection

3 year product warranty
