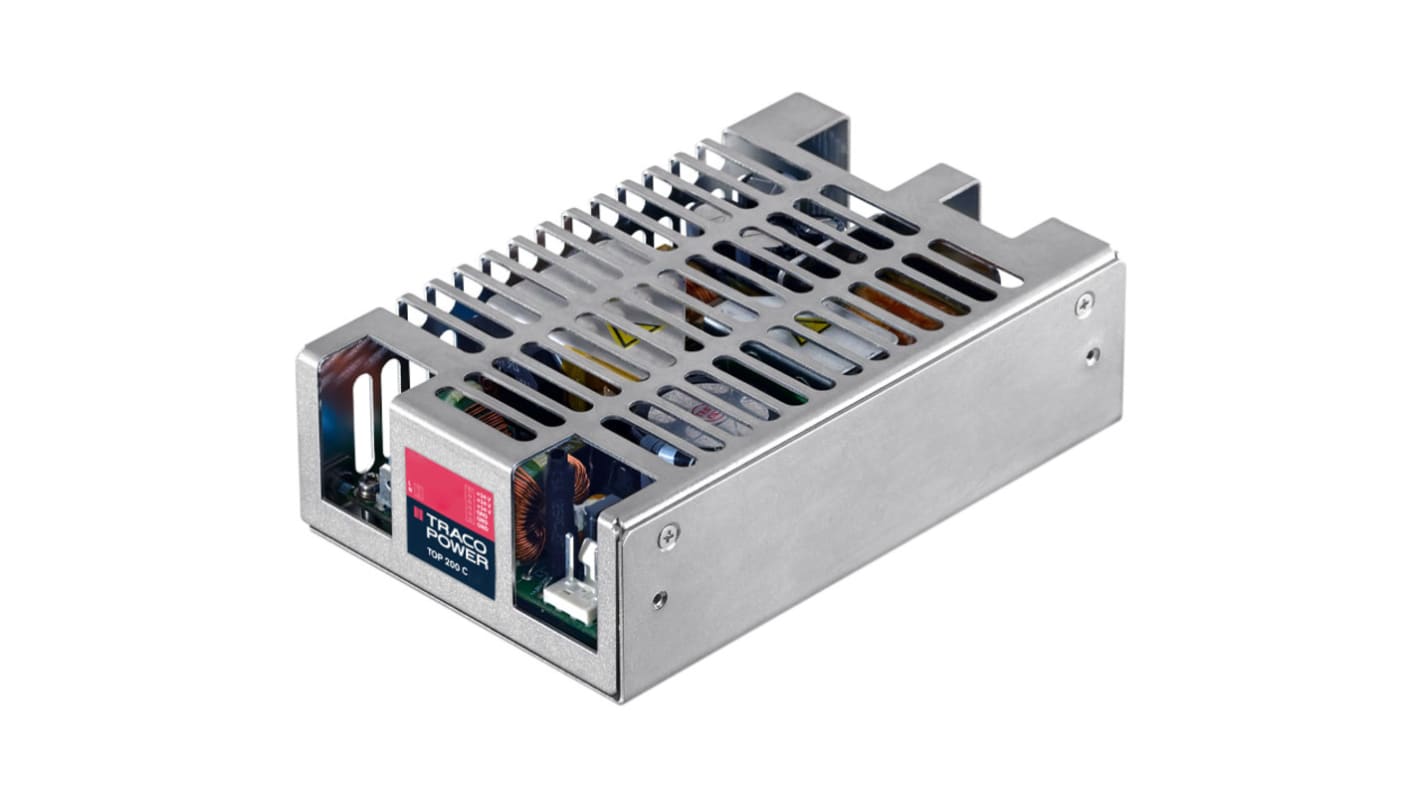

TRACOPOWER Power Supply 48V dc, 200 W, Input 85V ac to 264V ac
- RS Stock No.:
- 284-8874
- Mfr. Part No.:
- TOP 200-124C
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£113.17
(exc. VAT)
£135.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £113.17 |
*price indicative
- RS Stock No.:
- 284-8874
- Mfr. Part No.:
- TOP 200-124C
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 200W | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 600g | |
| Width | 89.8mm | |
| Length | 139.4mm | |
| Standards/Approvals | No | |
| Efficiency | 95% | |
| Series | TOP 200 | |
| Maximum Input Voltage | 264V ac | |
| Hazardous Area Certification | NO | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 4.2A | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 200W | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Weight 600g | ||
Width 89.8mm | ||
Length 139.4mm | ||
Standards/Approvals No | ||
Efficiency 95% | ||
Series TOP 200 | ||
Maximum Input Voltage 264V ac | ||
Hazardous Area Certification NO | ||
Minimum Input Voltage 85V ac | ||
Output Current 4.2A | ||
The TRACOPOWER TOP 200C Series AC/DC Power Supplies feature the highest power rating in the industry standard 3 inch x 5 inch (76.2 x 127 mm) footprint. They can supply up to 200 W output power with convection cooling over an industrial operating temperature range of –25°C to +70°C. This performance could be realized by a state of the art design providing an extremely high efficiency which eliminates the need for a dedicated power supply cooling fan. Compliance with global safety and EMC standards qualify these power supplies for worldwide markets. Approved for Class l and Class ll applications, these switchers are suitable for industrial and IT systems but also for consumer products. High reliability is provided by use of industrial quality grade components and an excellent thermal management.
Highest power density in 5.0” x 3.0” footprint
Supplies 200 W
Highest efficiency up to 95%
Power Back immunity
Low leakage current
Protection class l and class ll
