TRACOPOWER, TXO 200-148-J Switching Power Supply 48V dc, 200 W 264V ac
- RS Stock No.:
- 608-911
- Mfr. Part No.:
- TXO 200-148-J
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£57.80
(exc. VAT)
£69.36
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.80 |
*price indicative
- RS Stock No.:
- 608-911
- Mfr. Part No.:
- TXO 200-148-J
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis Mount | |
| Power | 200W | |
| Minimum Operating Temperature | -20°C | |
| SMPS Output Current | 4170mA | |
| Maximum Operating Temperature | 70°C | |
| Length | 101.6mm | |
| Weight | 340g | |
| Depth | 38mm | |
| Width | 76.2mm | |
| Standards/Approvals | RoHS, EN 61000-3-2, EN 62368-1, IEC 62368-1, UL 62368-1 | |
| Series | TXO 200 | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 90% | |
| Output Current | 4.17A | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis Mount | ||
Power 200W | ||
Minimum Operating Temperature -20°C | ||
SMPS Output Current 4170mA | ||
Maximum Operating Temperature 70°C | ||
Length 101.6mm | ||
Weight 340g | ||
Depth 38mm | ||
Width 76.2mm | ||
Standards/Approvals RoHS, EN 61000-3-2, EN 62368-1, IEC 62368-1, UL 62368-1 | ||
Series TXO 200 | ||
Maximum Input Voltage 264V ac | ||
Efficiency 90% | ||
Output Current 4.17A | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- TW

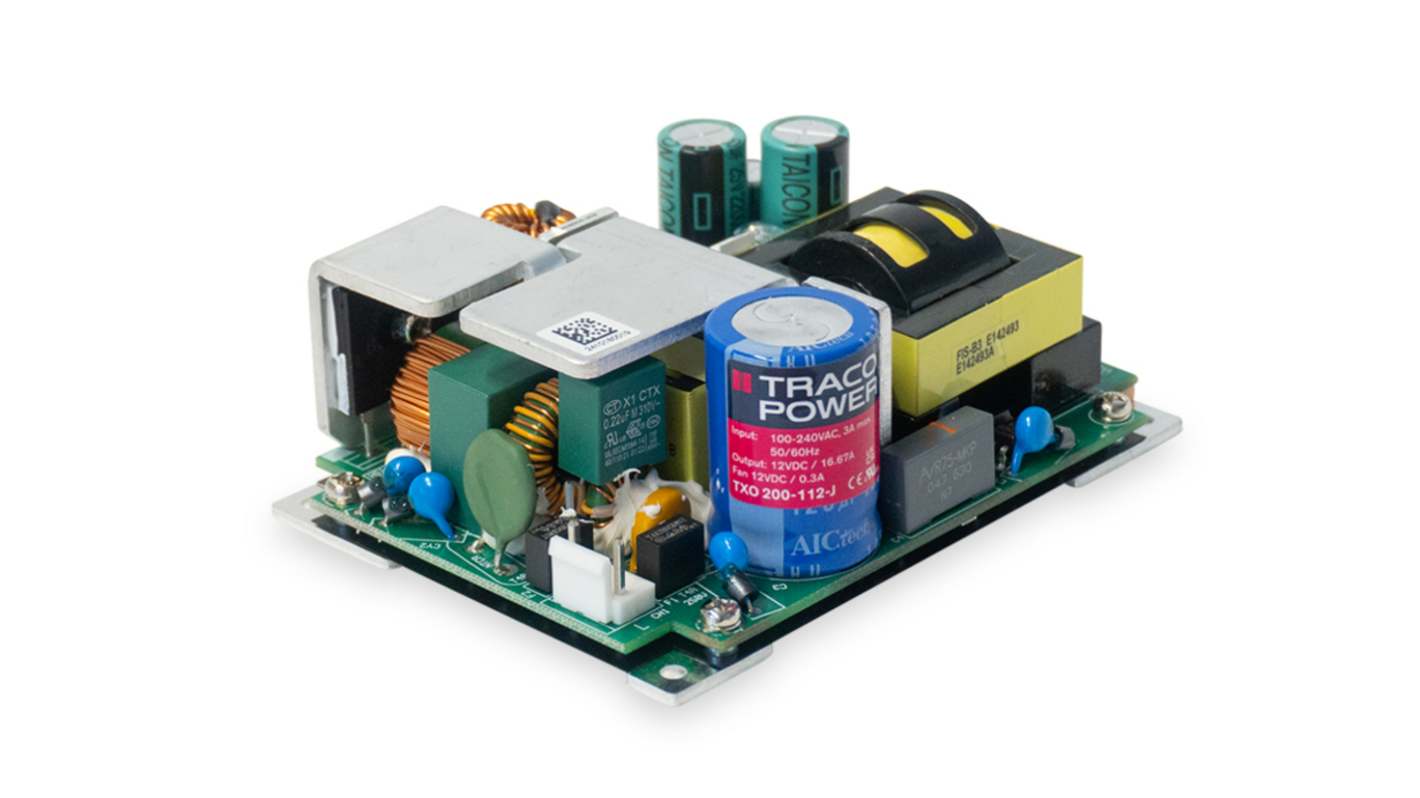

The TRACOPOWER Compact 200 Watt AC/DC open frame module with reinforced I/O isolation designed for a wide range of cost sensitive applications. It comes with an active power factor correction and EMC characteristics dedicated for applications in industrial/automation and test & measurement fields making these power supplies an ideal solution for various industrial and cost sensitive applications. It is compliant to IEC/EN/UL 62368-1 safety approvals and EN 61000-3-2 standards.
Protection class II prepared
Internal EN 55032 class B filter
Short circuit and overvoltage
Overload protection
3 year product warranty
