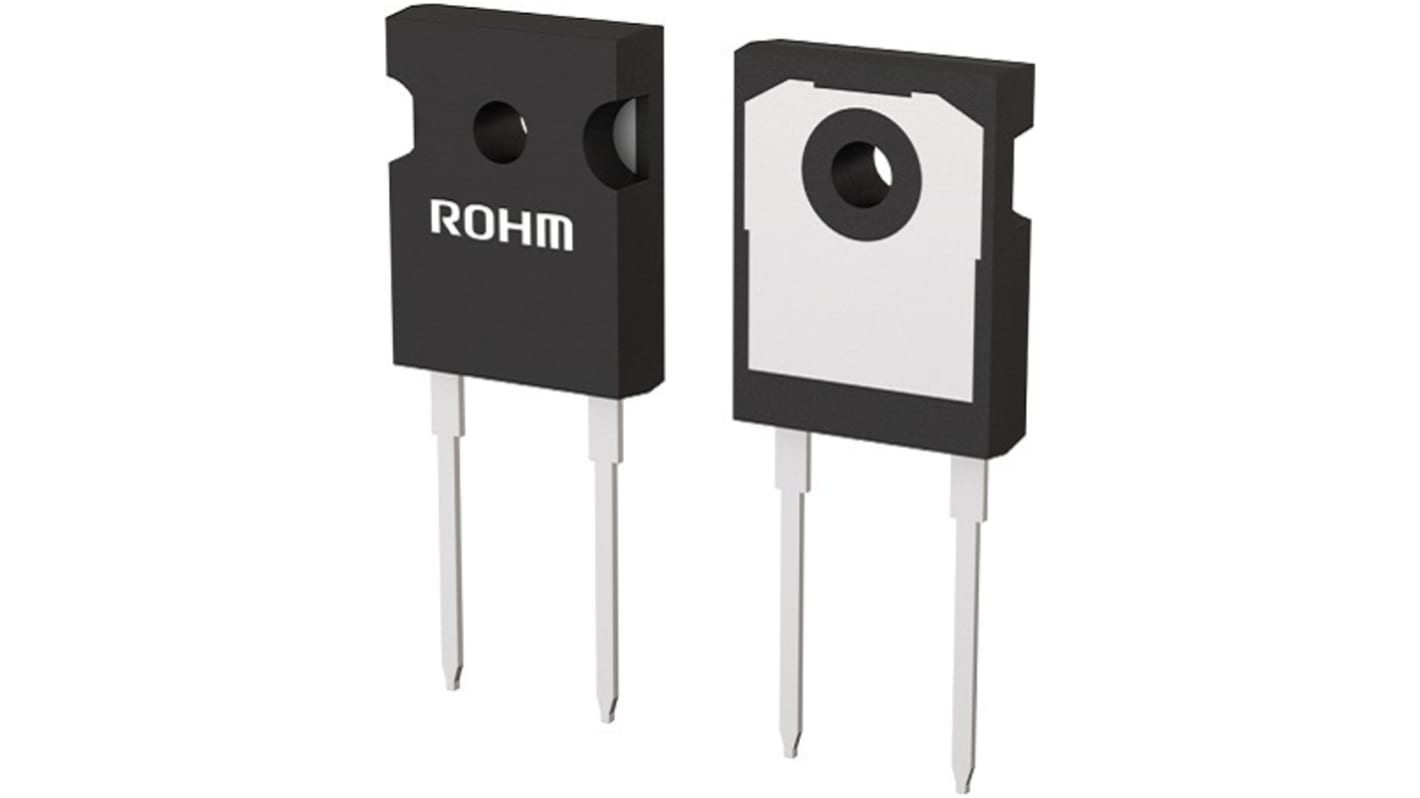

ROHM Epitaxial Planar, Single, 60 A, 2-Pin 650 V TO-247GE-2L
- RS Stock No.:
- 241-2272
- Mfr. Part No.:
- RFS60TZ6SGC13
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 241-2272
- Mfr. Part No.:
- RFS60TZ6SGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Diode Configuration | Single | |
| Product Type | Epitaxial Planar | |
| Maximum Forward Current If | 60A | |
| Mount Type | Through Hole | |
| Sub Type | Epitaxial Planar | |
| Package Type | TO-247GE-2L | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A | |
| Maximum Forward Voltage Vf | 2.3V | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 650V | |
| Peak Reverse Recovery Time trr | 55ns | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Series | RFS60TZ6S | |
| Height | 21.25mm | |
| Standards/Approvals | RoHS | |
| Length | 16.24mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Diode Configuration Single | ||
Product Type Epitaxial Planar | ||
Maximum Forward Current If 60A | ||
Mount Type Through Hole | ||
Sub Type Epitaxial Planar | ||
Package Type TO-247GE-2L | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 250A | ||
Maximum Forward Voltage Vf 2.3V | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 650V | ||
Peak Reverse Recovery Time trr 55ns | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Series RFS60TZ6S | ||
Height 21.25mm | ||
Standards/Approvals RoHS | ||
Length 16.24mm | ||
Automotive Standard AEC-Q101 | ||
ROHM RFS30TZ6S is a silicon epitaxial planar type ultra fast recovery diode. Ideal for general rectification applications and PFC continuous current mode applications.
Ultra fast recovery or Ultra soft recovery type
Ultra low switching loss
High current overload capacity
