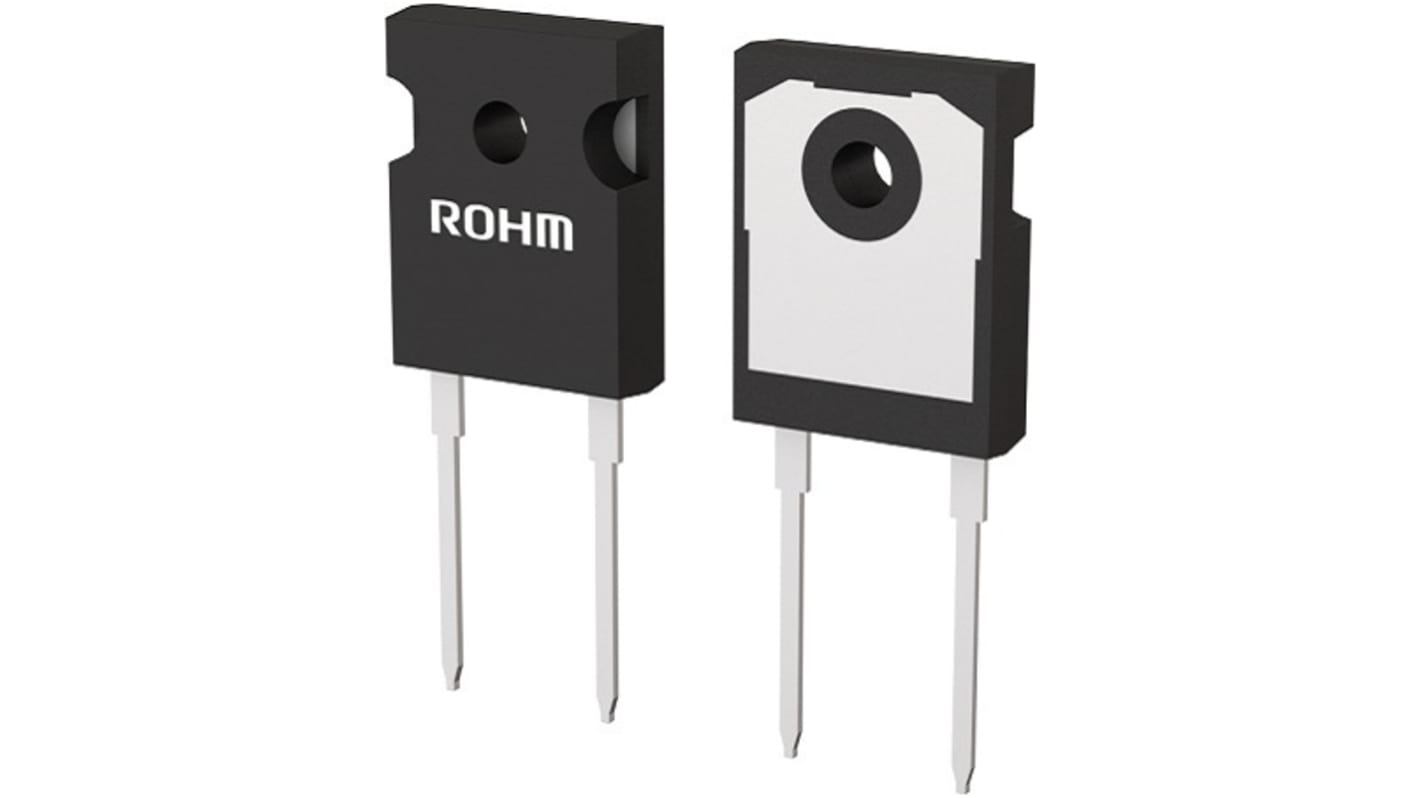

ROHM Epitaxial Planar, Single, 60 A, 2-Pin 650 V TO-247GE-2L
- RS Stock No.:
- 241-2268
- Mfr. Part No.:
- RFL60TZ6SGC13
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 241-2268
- Mfr. Part No.:
- RFL60TZ6SGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Forward Current If | 60A | |
| Product Type | Epitaxial Planar | |
| Diode Configuration | Single | |
| Sub Type | Epitaxial Planar | |
| Mount Type | Through Hole | |
| Package Type | TO-247GE-2L | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1.5V | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Recovery Time trr | 75ns | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 650V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A | |
| Maximum Operating Temperature | 175°C | |
| Height | 21.25mm | |
| Length | 16.24mm | |
| Width | 5.22 mm | |
| Standards/Approvals | RoHS | |
| Series | RFL60TZ6S | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Forward Current If 60A | ||
Product Type Epitaxial Planar | ||
Diode Configuration Single | ||
Sub Type Epitaxial Planar | ||
Mount Type Through Hole | ||
Package Type TO-247GE-2L | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1.5V | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Recovery Time trr 75ns | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 650V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 320A | ||
Maximum Operating Temperature 175°C | ||
Height 21.25mm | ||
Length 16.24mm | ||
Width 5.22 mm | ||
Standards/Approvals RoHS | ||
Series RFL60TZ6S | ||
Automotive Standard AEC-Q101 | ||
ROHM RFS30TZ6S is a silicon epitaxial planar type ultra fast recovery diode. Ideal for general rectification applications and PFC continuous current mode applications.
Ultra fast recovery or Ultra soft recovery type
Low forward voltage
High current overload capacity
