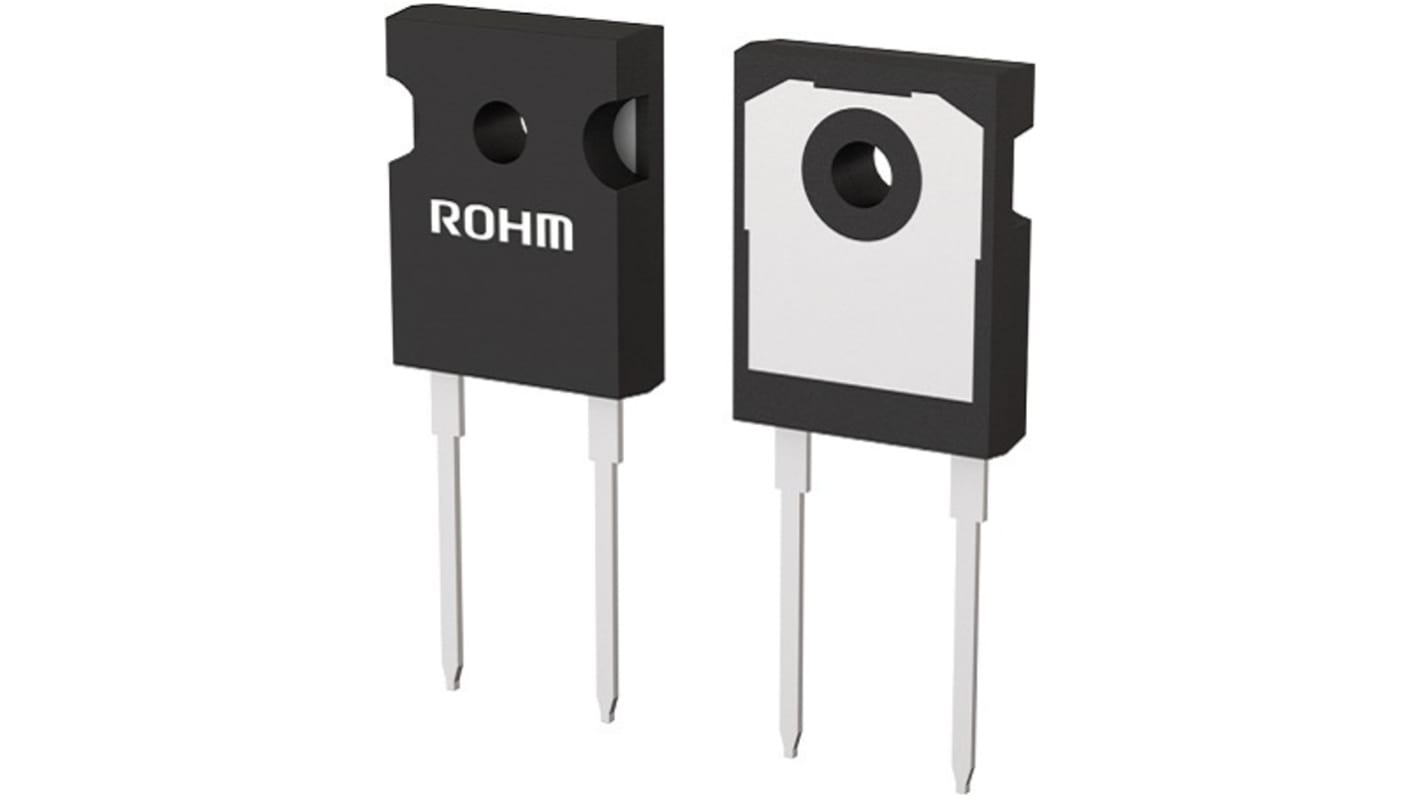

ROHM Epitaxial Planar, Single, 30 A, 2-Pin 650 V TO-247GE-2L
- RS Stock No.:
- 241-2270
- Mfr. Part No.:
- RFS30TZ6SGC13
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 241-2270
- Mfr. Part No.:
- RFS30TZ6SGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Epitaxial Planar | |
| Diode Configuration | Single | |
| Maximum Forward Current If | 30A | |
| Sub Type | Epitaxial Planar | |
| Mount Type | Through Hole | |
| Package Type | TO-247GE-2L | |
| Pin Count | 2 | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 650V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 160A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 2.3V | |
| Peak Reverse Recovery Time trr | 35ns | |
| Maximum Operating Temperature | 175°C | |
| Height | 21.25mm | |
| Length | 16.24mm | |
| Series | RFS30TZ6S | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Epitaxial Planar | ||
Diode Configuration Single | ||
Maximum Forward Current If 30A | ||
Sub Type Epitaxial Planar | ||
Mount Type Through Hole | ||
Package Type TO-247GE-2L | ||
Pin Count 2 | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 650V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 160A | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 2.3V | ||
Peak Reverse Recovery Time trr 35ns | ||
Maximum Operating Temperature 175°C | ||
Height 21.25mm | ||
Length 16.24mm | ||
Series RFS30TZ6S | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
ROHM RFS30TZ6S is a silicon epitaxial planar type ultra fast recovery diode. Ideal for general rectification applications and PFC continuous current mode applications.
Ultra fast recovery or Ultra soft recovery type
Ultra low switching loss
High current overload capacity
