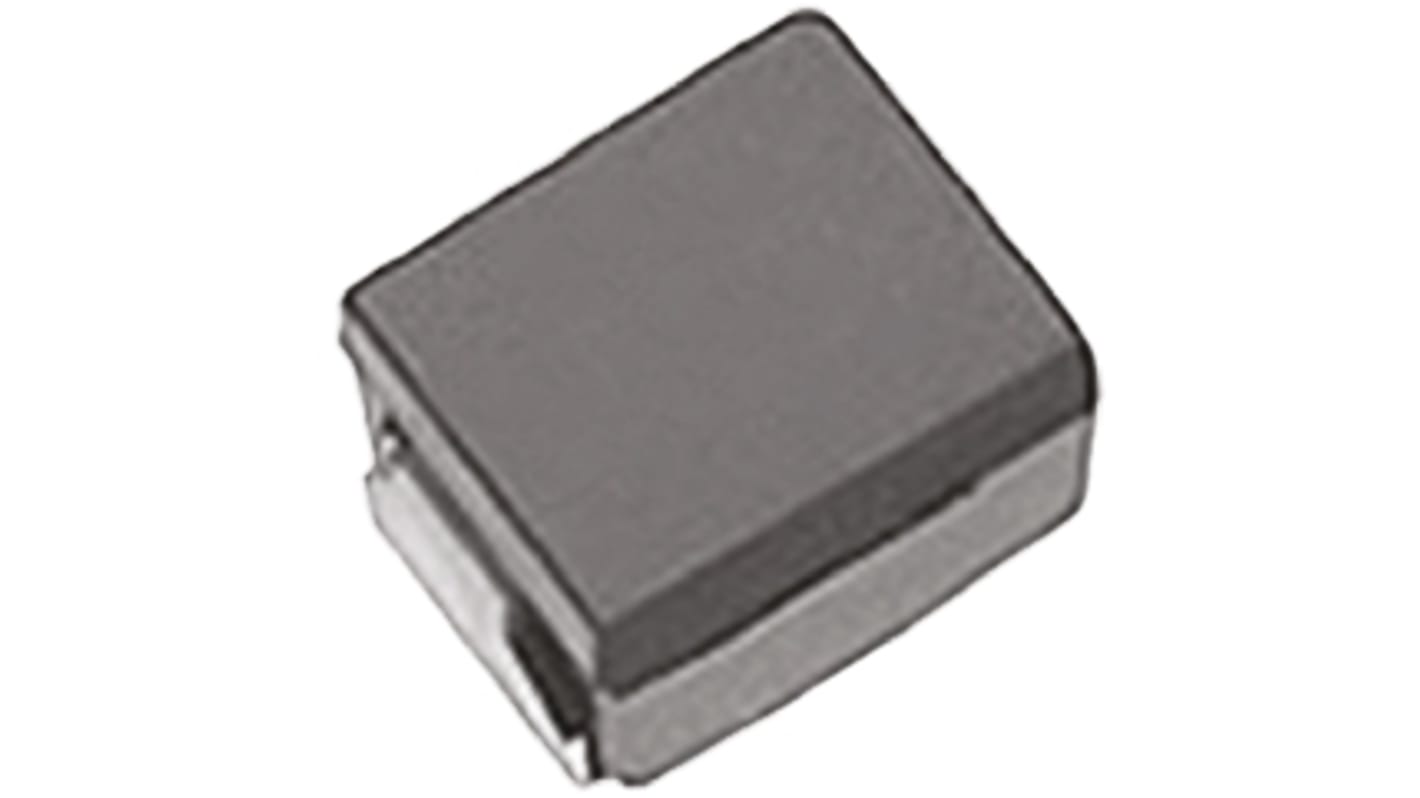

Panasonic, DA, 3225 Wire-wound SMD Inductor 100 μH ±5% Wire-Wound 70mA Idc Q:24
- RS Stock No.:
- 729-9575
- Mfr. Part No.:
- ELJDA101JF
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 729-9575
- Mfr. Part No.:
- ELJDA101JF
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Inductance | 100 μH | |
| Maximum DC Current | 70mA | |
| Package/Case | 3225 | |
| Length | 3.2mm | |
| Depth | 2.5mm | |
| Height | 2.2mm | |
| Dimensions | 3.2 x 2.5 x 2.2mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 13Ω | |
| Series | DA | |
| Maximum Self Resonant Frequency | 7MHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 24 | |
| Minimum Operating Temperature | -20°C | |
| Inductor Construction | Wire-Wound | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Inductance 100 μH | ||
Maximum DC Current 70mA | ||
Package/Case 3225 | ||
Length 3.2mm | ||
Depth 2.5mm | ||
Height 2.2mm | ||
Dimensions 3.2 x 2.5 x 2.2mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 13Ω | ||
Series DA | ||
Maximum Self Resonant Frequency 7MHz | ||
Moulded Yes | ||
Minimum Quality Factor 24 | ||
Minimum Operating Temperature -20°C | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
Panasonic 1210 DA Series Wire Wound Inductors
Panasonic DA series general use wire wound and resin molded chip inductors. The DA Series Inductor is designed for super low distortion and suitable for Signal processing. Recommended applications include Broadband Modems, Routers and STB’s etc.
Corresponds to sam IC chipset
