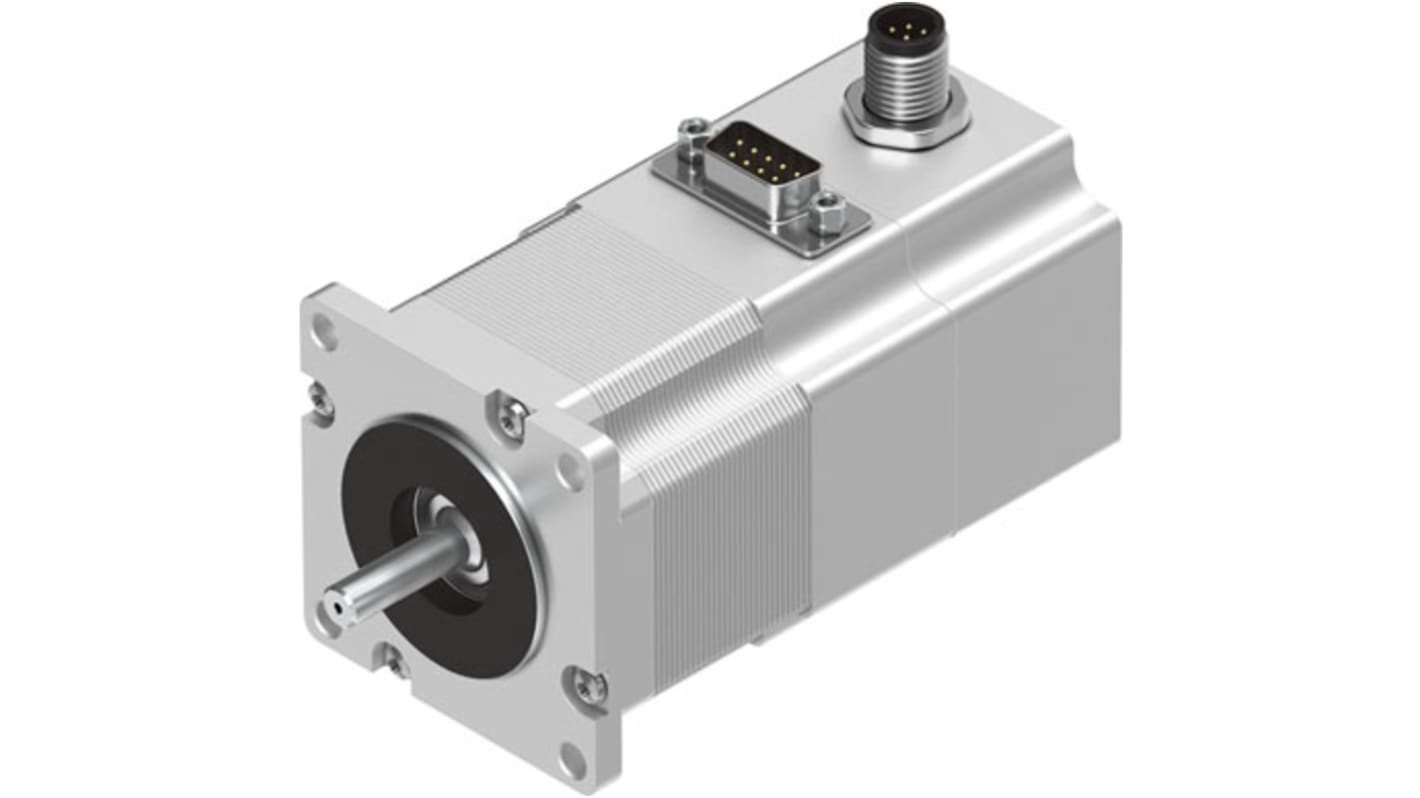

Festo EMMS-ST Series Hybrid Stepper Motor 48V, 0.8Nm Torque, 1.8 °, 6.35 mm Shaft
- RS Stock No.:
- 181-6683
- Distrelec Article No.:
- 302-18-147
- Mfr. Part No.:
- EMMS-ST-57-S-SE-G2
- Brand:
- Festo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£219.05
(exc. VAT)
£262.86
(inc. VAT)
- RS Stock No.:
- 181-6683
- Distrelec Article No.:
- 302-18-147
- Mfr. Part No.:
- EMMS-ST-57-S-SE-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Stepper Motor | |
| Sub Type | Hybrid | |
| Step Angle | 1.8° | |
| Holding Torque | 0.8Nm | |
| Voltage | 48V | |
| Shaft Diameter | 6.35mm | |
| Current Rating | 5A | |
| Shaft Length | 20.6mm | |
| IP Rating | IP54 | |
| Depth | 102.5mm | |
| Resistance Per Phase | 0.15Ω | |
| Standards/Approvals | RoHS | |
| Output Speed | 2720rpm | |
| Series | EMMS-ST | |
| Detent Torque | 800mNm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Stepper Motor | ||
Sub Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 0.8Nm | ||
Voltage 48V | ||
Shaft Diameter 6.35mm | ||
Current Rating 5A | ||
Shaft Length 20.6mm | ||
IP Rating IP54 | ||
Depth 102.5mm | ||
Resistance Per Phase 0.15Ω | ||
Standards/Approvals RoHS | ||
Output Speed 2720rpm | ||
Series EMMS-ST | ||
Detent Torque 800mNm | ||
- COO (Country of Origin):
- CN
Festo Stepper Motor, 2720rpm Maximum Speed, IP54 Rating - EMMS-ST-57-S-SE-G2
Go for this stepper motor from Festo when you need a reliable way of making fine motor movements. As it uses hybrid technology, it's a practical pick for your half-stepping and micro-stepping motions and ideal for applications that call for the utmost precision. The unit's motor and brake torque ratings of 0.8Nm and 0.4Nm respectively, indicate it can start and stop its rotations promptly. It does this without producing excessive heat that could otherwise shorten a motor's life, so you can trust it won't damage any sensitive windings. Class-B insulation also helps prevent this by effectively stopping heat from spreading through the device.
Features & Benefits
• IP54 rating means it resists dust, as well as splashes of water from all directions
• 10N axial load tolerance and 52N radial load tolerance make it suitable for driving heavy industrial equipment
• Resists corrosion, so is a safe bet in environments exposed to moisture
• Integrated D-sub plug connection makes it easy to link to other equipment
Applications
• 3D printing
• CNC machines
• Robotics systems
Can I use this stepper motor for high-speed applications?
Yes. An impressive maximum speed of 2720rpm means this motor is a smart pick for fast-paced applications.
