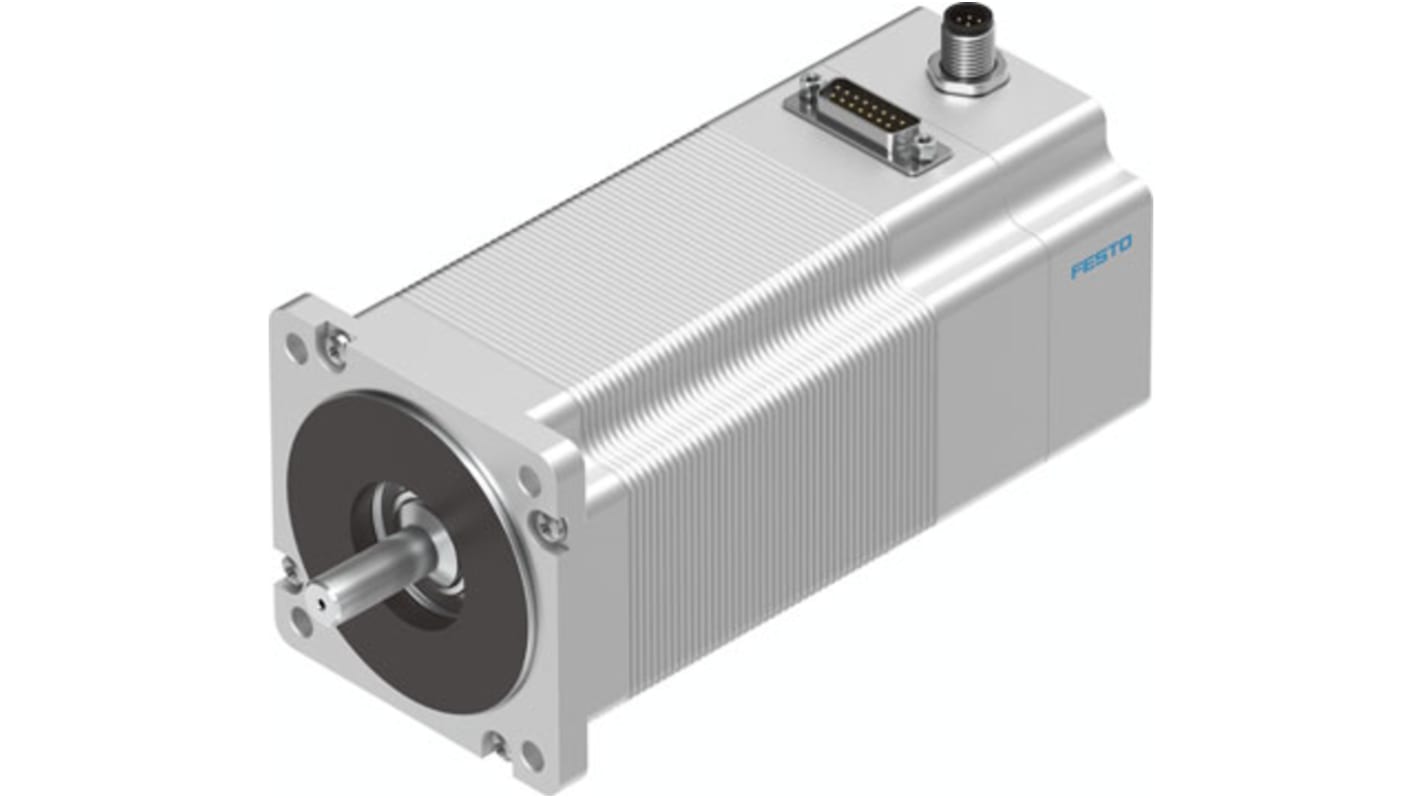

Festo EMMS-ST Series Hybrid Stepper Motor, 9.3Nm Torque, 48 V, 1.8°, 11mm Shaft
- RS Stock No.:
- 181-6699
- Mfr. Part No.:
- EMMS-ST-87-L-SE-G2
- Brand:
- Festo
Subtotal (1 unit)*
£483.16
(exc. VAT)
£579.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £483.16 |
*price indicative
- RS Stock No.:
- 181-6699
- Mfr. Part No.:
- EMMS-ST-87-L-SE-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stepper Motor Type | Hybrid | |
Step Angle | 1.8° | |
Holding Torque | 9.3Nm | |
Supply Voltage | 48 V | |
Shaft Diameter | 11mm | |
Current Rating | 9.5 A | |
Shaft Length | 27mm | |
Depth | 174.9mm | |
Resistance Per Phase | 0.23Ω | |
Output Speed | 430 rpm | |
Series | EMMS-ST | |
Detent Torque | 9300mNm | |
Standards Met | RoHS | |
Select all | ||
---|---|---|
Brand Festo | ||
Stepper Motor Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 9.3Nm | ||
Supply Voltage 48 V | ||
Shaft Diameter 11mm | ||
Current Rating 9.5 A | ||
Shaft Length 27mm | ||
Depth 174.9mm | ||
Resistance Per Phase 0.23Ω | ||
Output Speed 430 rpm | ||
Series EMMS-ST | ||
Detent Torque 9300mNm | ||
Standards Met RoHS | ||
- COO (Country of Origin):
- CN
Festo Stepper Motor, Class-B Insulation, IP54 Rating - EMMS-ST-87-L-SE-G2
Precisely driven movements are a piece of cake when you use this stepper motor from Festo. Its advanced hybrid technology boosts accuracy for your most demanding applications by letting you make tiny half-stepping and micro-stepping motions. The unit's support for rotational speeds up to 430rpm means it's capable of safely driving high-velocity tasks with precision. As it moves without generating much friction, you can trust it won't produce excess heat that could damage your motor's sensitive internal windings. Class-B insulation also helps with this, as it stops heat from seeping through the device.
Features & Benefits
• High axial and radial load tolerances of 65N and 200N make it a great shout for driving heavy industrial equipment
• Works reliably across a broad ambient temperature range from -10°C to +50°C
• Stepper angle tolerance of ±5% means it can safely handle minor misalignments
• Motor and braking torques of 9.3Nm and 2Nm for prompt starting and stopping
• Works reliably across a broad ambient temperature range from -10°C to +50°C
• Stepper angle tolerance of ±5% means it can safely handle minor misalignments
• Motor and braking torques of 9.3Nm and 2Nm for prompt starting and stopping
Applications
• Robotics systems
• Process automation
• Camera platforms
• Process automation
• Camera platforms
Does this stepper motor come have an IP rating?
Yes. This unit's IP54 rating means it has protection against dust and splashes of water from all directions.
