Festo EMMS-ST Series Hybrid Stepper Motor, 0.5Nm Torque, 48 V, 1.8°, 5mm Shaft
- RS Stock No.:
- 181-6679
- Mfr. Part No.:
- EMMS-ST-42-S-SE-G2
- Brand:
- Festo
Subtotal (1 unit)*
£291.41
(exc. VAT)
£349.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £291.41 |
*price indicative
- RS Stock No.:
- 181-6679
- Mfr. Part No.:
- EMMS-ST-42-S-SE-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stepper Motor Type | Hybrid | |
Step Angle | 1.8° | |
Holding Torque | 0.5Nm | |
Supply Voltage | 48 V | |
Shaft Diameter | 5mm | |
Current Rating | 1.8 A | |
Shaft Length | 24mm | |
Depth | 94mm | |
Resistance Per Phase | 1.75Ω | |
Output Speed | 1740 rpm | |
Series | EMMS-ST | |
Select all | ||
---|---|---|
Brand Festo | ||
Stepper Motor Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 0.5Nm | ||
Supply Voltage 48 V | ||
Shaft Diameter 5mm | ||
Current Rating 1.8 A | ||
Shaft Length 24mm | ||
Depth 94mm | ||
Resistance Per Phase 1.75Ω | ||
Output Speed 1740 rpm | ||
Series EMMS-ST | ||
- COO (Country of Origin):
- CN

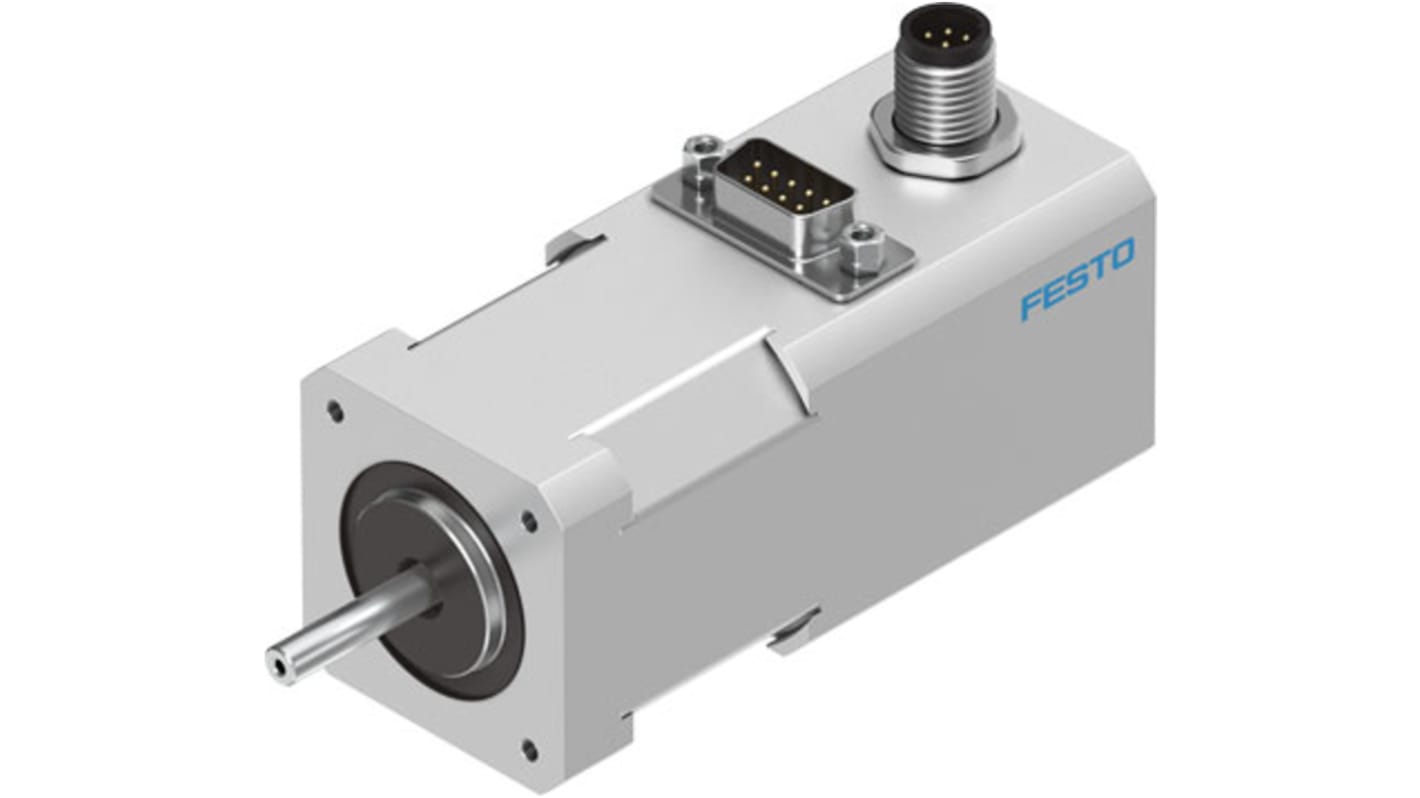

Festo Hybrid Stepper Motor, 48V DC, 1740rpm - EMMS-ST-42-S-SE-G2
Accurately control motor movements with this hybrid stepper motor from Festo. Precise and repeatable stepping ability makes this unit ideal for speed control and positioning applications. It gives you enhanced dexterity and efficiency for your programmed actions and is able to move a fraction of a rotation at a time for applications that need minute accuracy. The motor's 2-phase hybrid technology offers high driving torque for improved power. Thanks to optimised connection technology, the unit is quick and simple to hook up to a controller.
• Shaft is held in position even after the power supply is disconnected for improved reliability
• Needs less energy to reach a given torque for improved power efficiency
• IP54 (ingress protection) rated motor housing and plug connection mean it's protected against dust and water sprays
• Resistant to corrosion for an extended service life
• Needs less energy to reach a given torque for improved power efficiency
• IP54 (ingress protection) rated motor housing and plug connection mean it's protected against dust and water sprays
• Resistant to corrosion for an extended service life
Applications
• Robotics
• Process automation
• Printing and scanning
• Camera platforms
• Process automation
• Printing and scanning
• Camera platforms
What is a hybrid stepper motor?
A hybrid stepper motor is a type of DC (direct current) motor that combines a high torque-to-size ratio and fast output speed with quiet operation. It's easy to install and allows micro-stepping techniques that increase the fixed number of steps within a motor for smooth and accurate operation.
