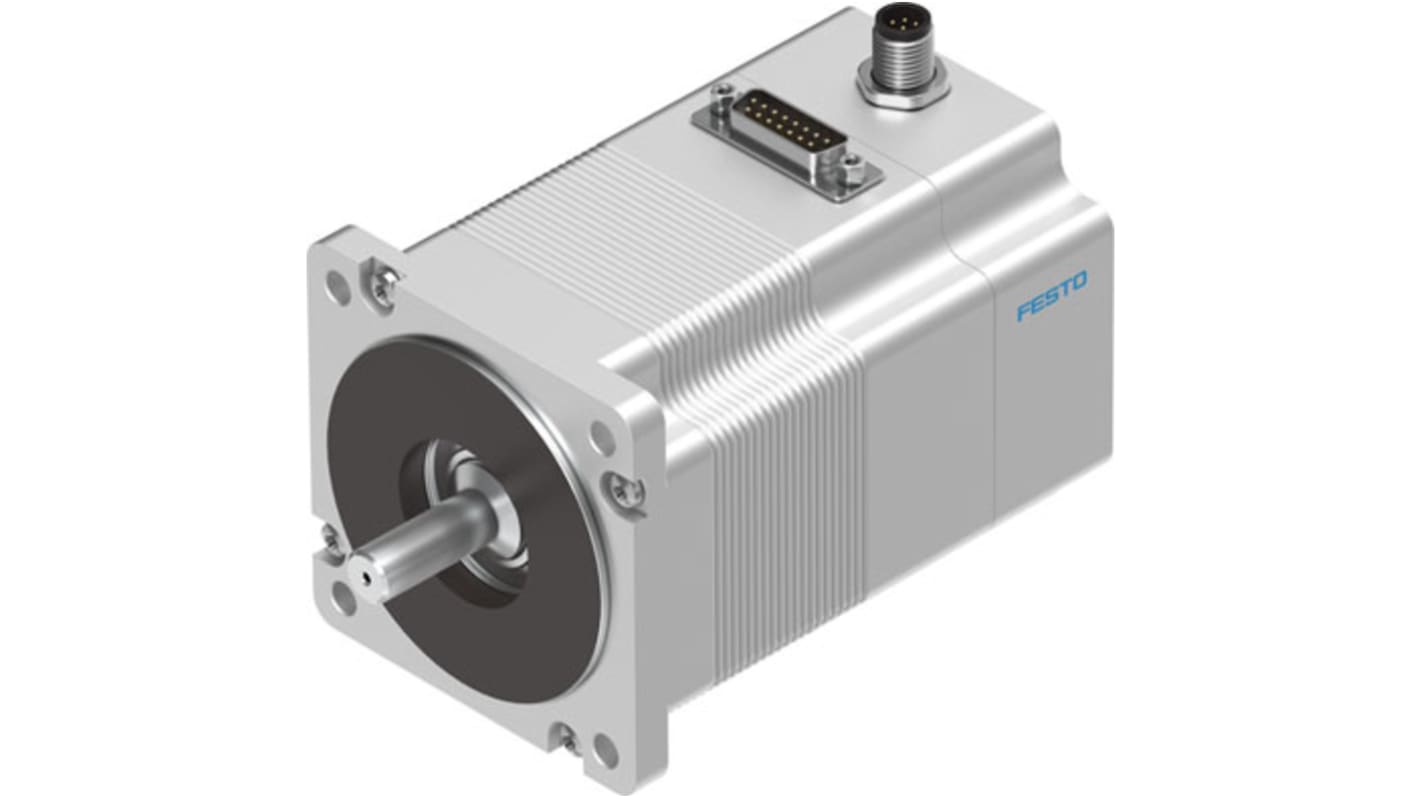

Festo EMMS-ST Series Hybrid Stepper Motor, 2.5Nm Torque, 48 V, 1.8°, 11mm Shaft
- RS Stock No.:
- 181-6691
- Distrelec Article No.:
- 301-68-725
- Mfr. Part No.:
- EMMS-ST-87-S-SE-G2
- Brand:
- Festo
Subtotal (1 unit)*
£445.43
(exc. VAT)
£534.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £445.43 |
*price indicative
- RS Stock No.:
- 181-6691
- Distrelec Article No.:
- 301-68-725
- Mfr. Part No.:
- EMMS-ST-87-S-SE-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Stepper Motor Type | Hybrid | |
| Step Angle | 1.8° | |
| Holding Torque | 2.5Nm | |
| Supply Voltage | 48 V | |
| Shaft Diameter | 11mm | |
| Current Rating | 9.5 A | |
| Shaft Length | 27mm | |
| Depth | 112.6mm | |
| Resistance Per Phase | 0.1Ω | |
| Output Speed | 2130 rpm | |
| Series | EMMS-ST | |
| Standards Met | CE Certified, cULus | |
Select all | ||
|---|---|---|
Brand Festo | ||
Stepper Motor Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 2.5Nm | ||
Supply Voltage 48 V | ||
Shaft Diameter 11mm | ||
Current Rating 9.5 A | ||
Shaft Length 27mm | ||
Depth 112.6mm | ||
Resistance Per Phase 0.1Ω | ||
Output Speed 2130 rpm | ||
Series EMMS-ST | ||
Standards Met CE Certified, cULus | ||
- COO (Country of Origin):
- CN
Festo Stepper Motor, 2Nm Brake Holding Torque, 9.5A Motor Current - EMMS-ST-87-S-SE-G2
For on-point rotation of your pneumatic equipment, choose this stepper motor from Festo. It works by splitting a turning cycle into repeatable 1.8° pulses, so it's suitable for applications that need precise positioning. Thanks to 2-phase hybrid technology, it has the power of two motors in one so you can rely on it to do double duty. The lightweight unit has a mass of just 2.1kg, meaning it's easy to handle during installation and won't put a strain on your equipment.
Features & Benefits
• Wide operating temperature range between -10°C and +50°C for use in demanding conditions
• IP54 rating indicates it can withstand dust and water jet splashes from all directions
• 48V rating makes it suitable for use in low-voltage settings
• Integrated incremental encoder for accurate position control
• IP54 rating indicates it can withstand dust and water jet splashes from all directions
• 48V rating makes it suitable for use in low-voltage settings
• Integrated incremental encoder for accurate position control
Applications
• Pharmaceutical production plants
• Robotics and automation systems
• Labelling machines
• Robotics and automation systems
• Labelling machines
What's the output speed of this stepper motor?
The component delivers an output speed of up to 2130rpm, so it's compatible with fast-paced applications.
How do I link this stepper motor to my equipment's control station?
It comes with two adapters – one 15-pin connector for the device itself and an 8-pin connector for the encoder.
