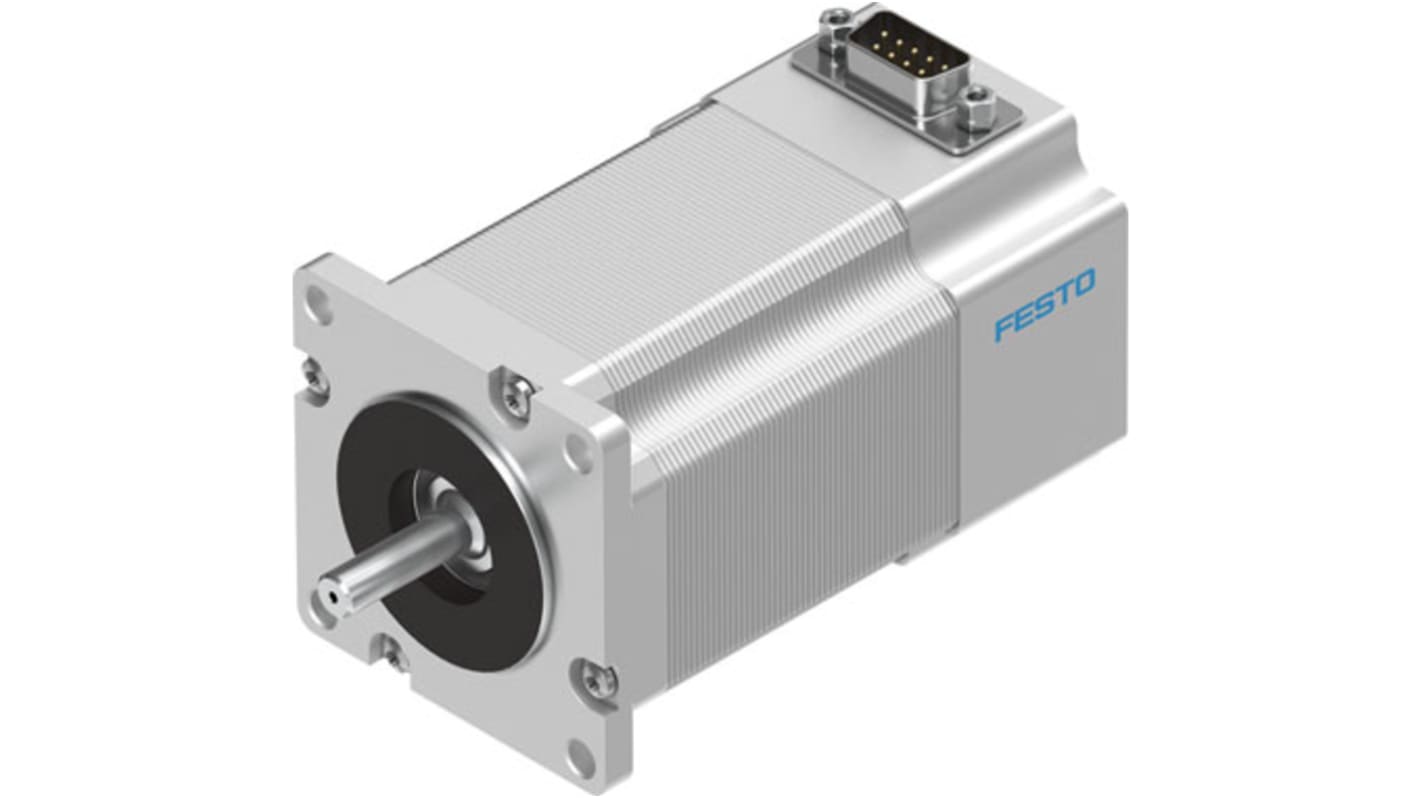

Festo EMMS-ST Series Hybrid Stepper Motor 48V, 1.4Nm Torque, 1.8 °, 6.35 mm Shaft
- RS Stock No.:
- 181-6686
- Distrelec Article No.:
- 304-12-876
- Mfr. Part No.:
- EMMS-ST-57-M-S-G2
- Brand:
- Festo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 181-6686
- Distrelec Article No.:
- 304-12-876
- Mfr. Part No.:
- EMMS-ST-57-M-S-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Stepper Motor | |
| Sub Type | Hybrid | |
| Step Angle | 1.8° | |
| Holding Torque | 1.4Nm | |
| Voltage | 48V | |
| Shaft Diameter | 6.35mm | |
| Current Rating | 5A | |
| Shaft Length | 20.6mm | |
| IP Rating | IP54 | |
| Depth | 95mm | |
| Resistance Per Phase | 0.25Ω | |
| Standards/Approvals | IEC 60034 | |
| Output Speed | 1940rpm | |
| Series | EMMS-ST | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Stepper Motor | ||
Sub Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 1.4Nm | ||
Voltage 48V | ||
Shaft Diameter 6.35mm | ||
Current Rating 5A | ||
Shaft Length 20.6mm | ||
IP Rating IP54 | ||
Depth 95mm | ||
Resistance Per Phase 0.25Ω | ||
Standards/Approvals IEC 60034 | ||
Output Speed 1940rpm | ||
Series EMMS-ST | ||
- COO (Country of Origin):
- CN
Festo Stepper Motor, 5A Nominal Motor Current, 1.1kg Weight - EMMS-ST-57-M-S-G2
Achieve on-the-dot rotation on your industrial equipment with this stepper motor from Festo. It divides a turning cycle into a series of repeatable 1.8° pulses, so it's just the thing for applications that need precise positioning. You'll find it fits the bill when it comes to fast-paced devices, as its maximum speed is 1940rpm. The hybrid design means that the power of two motors is packed into one unit, giving you a high level of performance. Thanks to a current rating of 5A, this is a practical choice for low-current-consuming tasks.
Features & Benefits
• IP54 rating indicates it's resistant to dust and water splashes
• Low power consumption of 10W for energy efficiency
• 9-pin D-sub plug for easy communication with serial devices
• Wide operating temperature range of -10°C to +50°C for use in challenging settings
Applications
• Variable frequency drives
• CNC equipment
• 3D printers
What's meant by the insulation protection class of this stepper motor?
The insulation protection class of the motor shows how much heat the insulators in its windings can resist. This unit falls into class B, so its threshold is +130°C. Using it above this limit could reduce your motor's service life.
