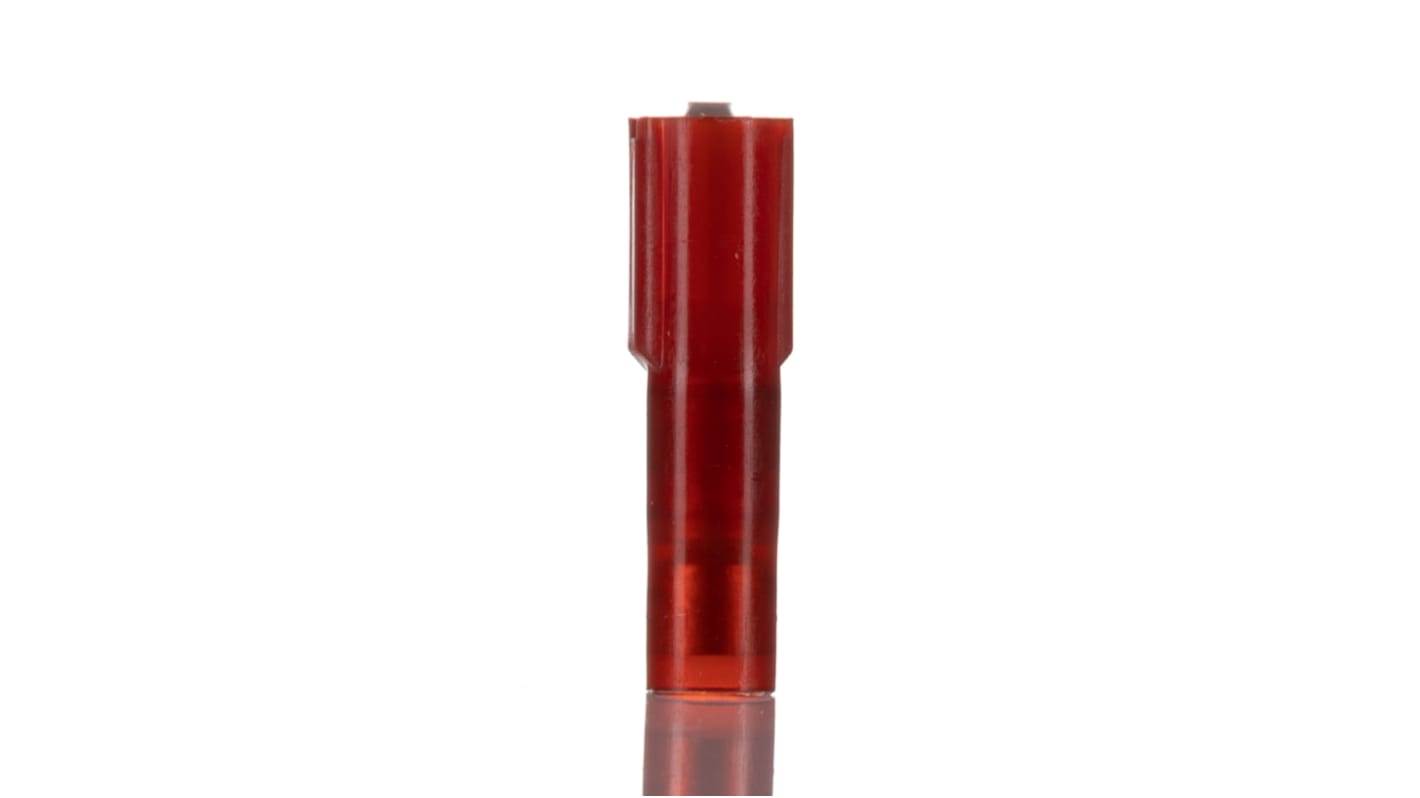

Molex Avikrimp 19002 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.81mm Tab Size
- RS Stock No.:
- 822-1006
- Mfr. Part No.:
- 19002-0016
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 50 units)*
£23.95
(exc. VAT)
£28.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,250 unit(s) ready to ship
- Plus 50 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.479 | £23.95 |
| 250 - 1200 | £0.437 | £21.85 |
| 1250 - 2450 | £0.404 | £20.20 |
| 2500 - 4950 | £0.378 | £18.90 |
| 5000 + | £0.355 | £17.75 |
*price indicative
- RS Stock No.:
- 822-1006
- Mfr. Part No.:
- 19002-0016
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Receptacle | |
| Spade Connector Type | Quick Disconnect | |
| Gender | Female | |
| Series | Avikrimp 19002 | |
| Tab Size | 2.79 x 0.81mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Termination Method | Crimp | |
| Colour | Red | |
| Contact Material | Brass | |
| Wire Size | 18 → 22 AWG | |
| Orientation | Straight | |
| Insulation Material | Nylon | |
| Overall Length | 20.3mm | |
| Series Number | 0016 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Receptacle | ||
Spade Connector Type Quick Disconnect | ||
Gender Female | ||
Series Avikrimp 19002 | ||
Tab Size 2.79 x 0.81mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Termination Method Crimp | ||
Colour Red | ||
Contact Material Brass | ||
Wire Size 18 → 22 AWG | ||
Orientation Straight | ||
Insulation Material Nylon | ||
Overall Length 20.3mm | ||
Series Number 0016 | ||
- COO (Country of Origin):
- US
Molex Avikrimp Female Quick Disconnect Terminals
These female nylon crimp receptacles are part or fully insulated, made from brass with tin plating. Flag or straight mount angle with various wire sizes and colours
Approvals
CSA,UL
Molex Spade Connector, Straight Orientation, 3.17mm Wire Insulation Diameter - 19002 Series - 19002-0016
Ever wished you could just pull cables apart during maintenance? Now you can with this quick disconnect spade connector from Molex. You can attach wires on both ends using a crimp tool to achieve a secure fit. When connected, the 4.064μm tin-plated brass contact maintains optimal signals. If you need to cut the circuit, simply disassemble the tabs. Thanks to its high 300V rating, this small but mighty unit is ideal for domestic or industrial use.
• Broad operating temperature range between -65°C and +105°C to suit harsh setups
• Nylon body is insulating, so prevents shocks when disconnecting
• Red body is easy to identify in a colour-coded system
• Nylon body is insulating, so prevents shocks when disconnecting
• Red body is easy to identify in a colour-coded system
Applications
• Manufacturing systems
• Lighting networks
• Automotive industry
• Lighting networks
• Automotive industry
What size wires fit with this connector?
This component accepts 22 to 18AWG wires, making it a multipurpose choice for your wiring needs.
