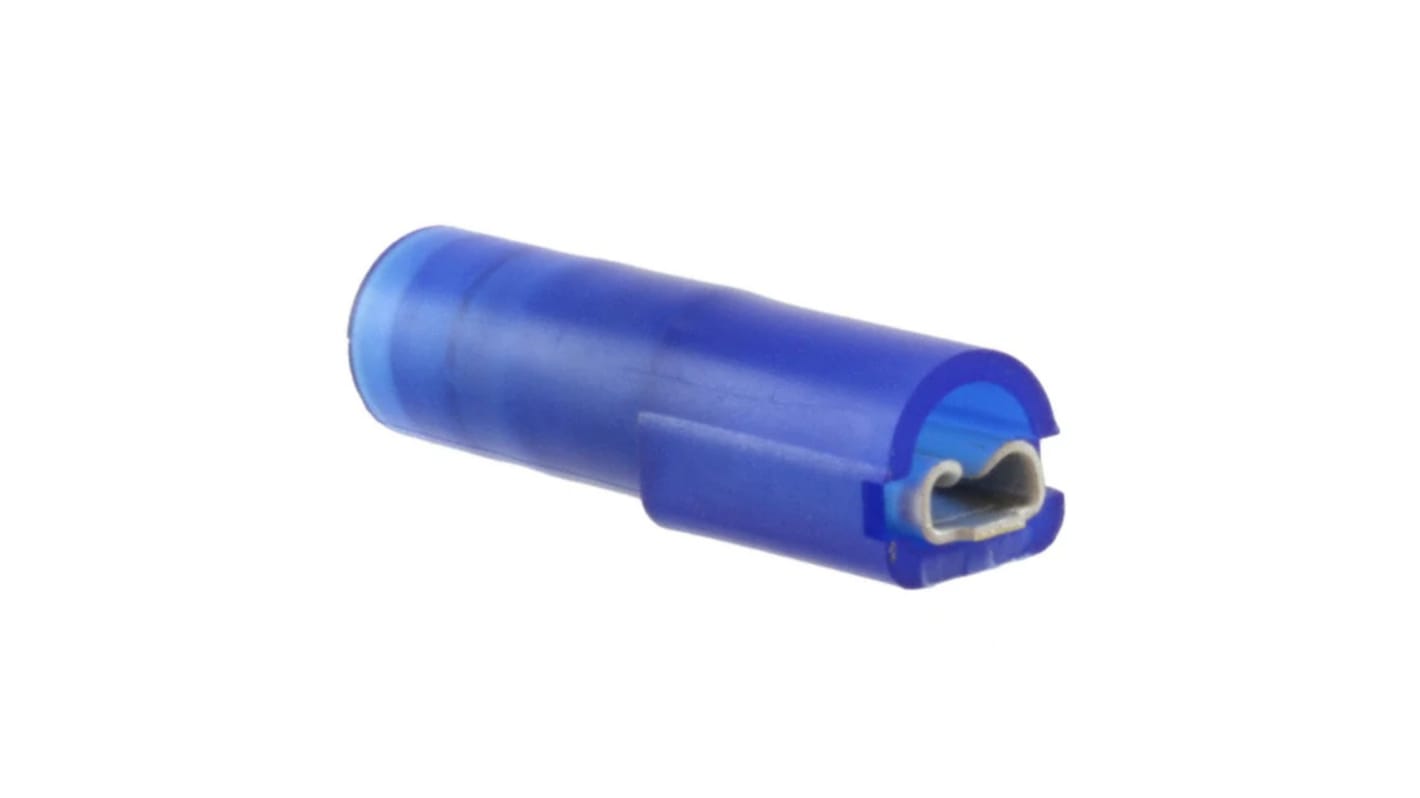

Molex 19002 Blue Insulated Female Spade Connector, Receptacle, 2.79 x 0.51mm Tab Size
- RS Stock No.:
- 213-5300
- Mfr. Part No.:
- 190020034
- Brand:
- Molex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 213-5300
- Mfr. Part No.:
- 190020034
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Receptacle | |
| Gender | Female | |
| Series | 19002 | |
| Tab Thickness | 0.51mm | |
| Tab Size | 2.79 x 0.51mm | |
| Tab Width | 2.79mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Termination Method | Crimp | |
| Colour | Blue | |
| Wire Size | 16 AWG | |
| Insulation Material | Nylon | |
| Shrouded/Unshrouded | Shrouded | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Receptacle | ||
Gender Female | ||
Series 19002 | ||
Tab Thickness 0.51mm | ||
Tab Size 2.79 x 0.51mm | ||
Tab Width 2.79mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Termination Method Crimp | ||
Colour Blue | ||
Wire Size 16 AWG | ||
Insulation Material Nylon | ||
Shrouded/Unshrouded Shrouded | ||
- COO (Country of Origin):
- US
The Molex 190020034 is a AviKrimp quick disconnect terminal. which has a female gender, compatible for 14 to 16 AWG. It is fully insulated.
CSA certified
UL certified
UL certified
