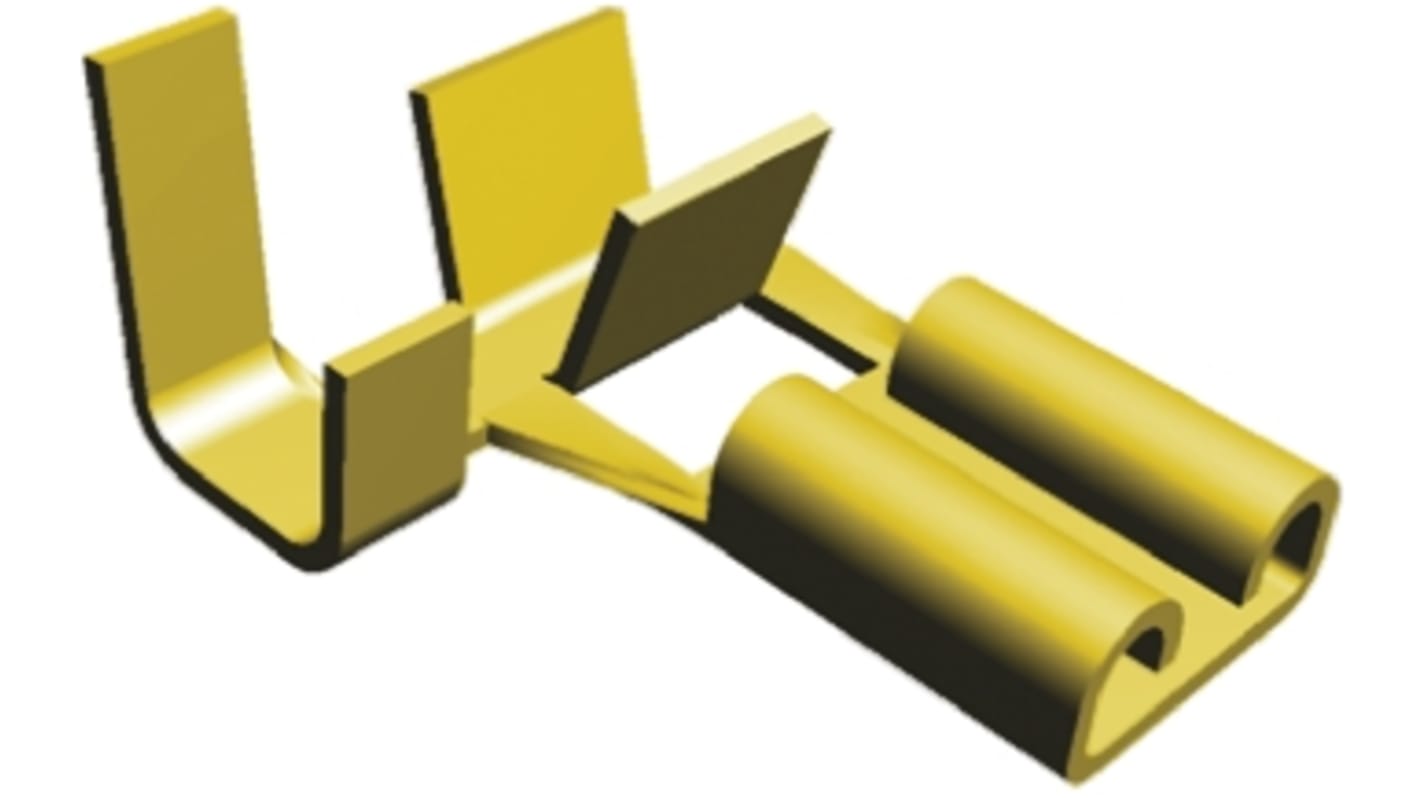

TE Connectivity FASTON .187 Uninsulated Female Spade Connector, Flag Terminal, 4.75 x 0.51mm Tab Size, 0.8mm² to 2mm²
- RS Stock No.:
- 719-6971
- Mfr. Part No.:
- 63512-1
- Brand:
- TE Connectivity
Subtotal (1 pack of 100 units)*
£7.70
(exc. VAT)
£9.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,600 unit(s) ready to ship
- Plus 600 unit(s) ready to ship from another location
- Plus 8,000 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.077 | £7.70 |
*price indicative
- RS Stock No.:
- 719-6971
- Mfr. Part No.:
- 63512-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | Flag Terminal | |
| Minimum Wire Size mm² | 0.8mm² | |
| Series | FASTON .187 | |
| Gender | Female | |
| Maximum Wire Size mm² | 2mm² | |
| Tab Size | 4.75 x 0.51mm | |
| Tab Width | 4.75mm | |
| Tab Thickness | 0.51mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 18AWG | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Overall Length | 19.18mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type Flag Terminal | ||
Minimum Wire Size mm² 0.8mm² | ||
Series FASTON .187 | ||
Gender Female | ||
Maximum Wire Size mm² 2mm² | ||
Tab Size 4.75 x 0.51mm | ||
Tab Width 4.75mm | ||
Tab Thickness 0.51mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 18AWG | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Overall Length 19.18mm | ||
TE Connectivity FASTON 187 Series Quick Connect Flag Receptacle Crimp Terminals
FASTON 187 series quick connect flag style crimp receptacle terminals designed for quick and efficient connection in applications where space is an important factor by connecting with the mating tab at right angles to the conductor. These FASTON 187 series quick connect flag style crimp receptacle terminals use "F" style crimp terminations which enable stable electrical and mechanical performance as well as resistance to vibration and corrosion.
TE Connectivity Uninsulated Crimp Flag Terminal
The TE Connectivity FASTON 187 series uninsulated crimp flag terminal is a quick connect flag crimp receptacle terminal designed for quick and efficient connection. The brass contact material use "F" style crimp terminations that enable stable electrical and mechanical performance. It is useful in electrical installations and applications where space is a critical factor by connecting with the mating tab at right angles to the conductor.
Features and Benefits
• Resistance to vibration and corrosion
• Wire size range between 18AWG and 14AWG
• Wire size range between 18AWG and 14AWG
Certifications
• UL listed
Faston
