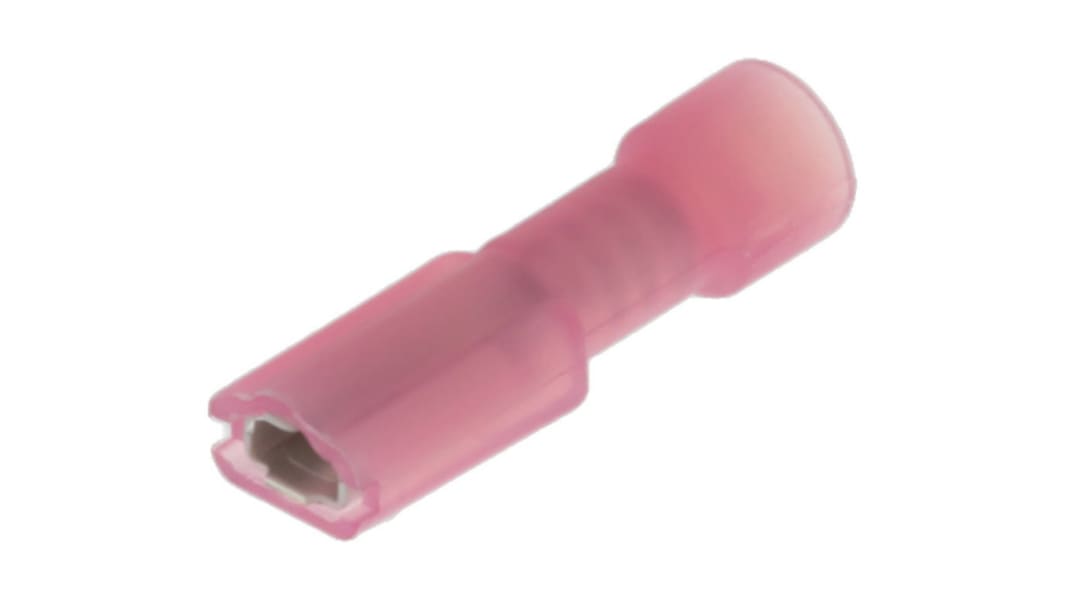

Molex 19003 Pink Insulated Female Spade Connector, Crimp, 2.79 x 0.81 mm Tab Size 18 AWG to 22 AWG
- RS Stock No.:
- 287-2208
- Mfr. Part No.:
- 190030030
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 20 units)*
£7.12
(exc. VAT)
£8.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6,960 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 80 | £0.356 | £7.12 |
| 100 - 220 | £0.342 | £6.84 |
| 240 - 480 | £0.327 | £6.54 |
| 500 + | £0.314 | £6.28 |
*price indicative
- RS Stock No.:
- 287-2208
- Mfr. Part No.:
- 190030030
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Thickness | 0.81mm | |
| Tab Size | 2.79 x 0.81 mm | |
| Tab Width | 2.79mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 22AWG | |
| Minimum Wire Size AWG | 18AWG | |
| Colour | Pink | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Insulation Material | Nylon | |
| Standards/Approvals | No | |
| Overall Length | 2.79mm | |
| Series | 19003 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Thickness 0.81mm | ||
Tab Size 2.79 x 0.81 mm | ||
Tab Width 2.79mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 22AWG | ||
Minimum Wire Size AWG 18AWG | ||
Colour Pink | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Insulation Material Nylon | ||
Standards/Approvals No | ||
Overall Length 2.79mm | ||
Series 19003 | ||
The Molex InsulKrimp Quick Disconnect, Female, is a versatile and reliable electrical connector designed for 18 to 22 AWG wires. It features a closed barrel construction and is fully insulated with nylon material, ensuring safety and durability. With a maximum voltage rating of 600V, this quick disconnect is suitable for a wide range of electrical applications. The pink color of the resin provides easy identification and enhances the visual appeal. This quick disconnect is compliant with EU RoHS regulations and is low-halogen per IEC 61249-2-21, making it an environmentally-friendly choice. With its compact and efficient design, the InsulKrimp Quick Disconnect is a must-have for any electrical project.
Closed barrel construction provides secure connection
Fully insulated with nylon material for safety and durability
Maximum voltage rating of 600V for various electrical applications
Pink resin color for easy identification
Compliant with EU RoHS regulations
Low-halogen per IEC 61249-2-21 for environmental friendliness
Compact and efficient design for easy installation
