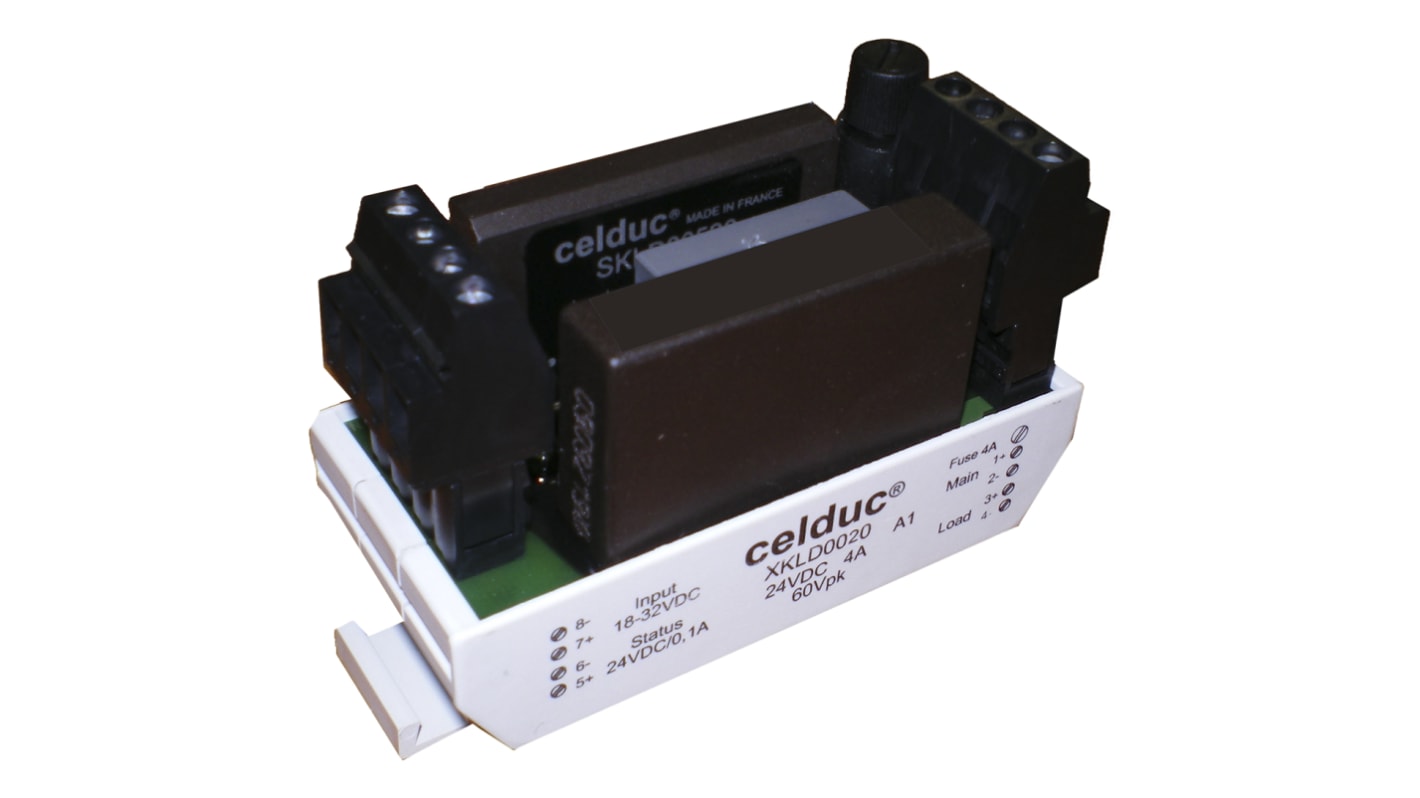

Celduc XK Series Solid State Relay, 4 A Load, DIN Rail Mount, 40 V dc Load, 32 V dc Control
- RS Stock No.:
- 917-4888
- Mfr. Part No.:
- XKLD0020
- Brand:
- Celduc
Subtotal (1 unit)*
£144.88
(exc. VAT)
£173.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £144.88 |
*price indicative
- RS Stock No.:
- 917-4888
- Mfr. Part No.:
- XKLD0020
- Brand:
- Celduc
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 4 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 40 V dc | |
| Minimum Load Voltage | 10 V dc | |
| Minimum Control Voltage | 18 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 18 → 32 V dc | |
| Range | XK | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Output Device | Bipolar Transistor | |
| Relay Type | DC | |
| Maximum Turn On Time | 0.001ms | |
| Series | XK | |
| Load Voltage Range | 10 → 40V | |
| Dimensions | 76.4 x 12.2 x 53mm | |
| Minimum Operating Temperature | -25°C | |
| Height | 78mm | |
| Standards Met | CE, EAC | |
| Maximum Operating Temperature | +100°C | |
| Depth | 60.9mm | |
| Length | 35.5mm | |
| Special Features | Control Visualization By LED. | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 4 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 40 V dc | ||
Minimum Load Voltage 10 V dc | ||
Minimum Control Voltage 18 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type DC | ||
Control Voltage Range 18 → 32 V dc | ||
Range XK | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Output Device Bipolar Transistor | ||
Relay Type DC | ||
Maximum Turn On Time 0.001ms | ||
Series XK | ||
Load Voltage Range 10 → 40V | ||
Dimensions 76.4 x 12.2 x 53mm | ||
Minimum Operating Temperature -25°C | ||
Height 78mm | ||
Standards Met CE, EAC | ||
Maximum Operating Temperature +100°C | ||
Depth 60.9mm | ||
Length 35.5mm | ||
Special Features Control Visualization By LED. | ||
