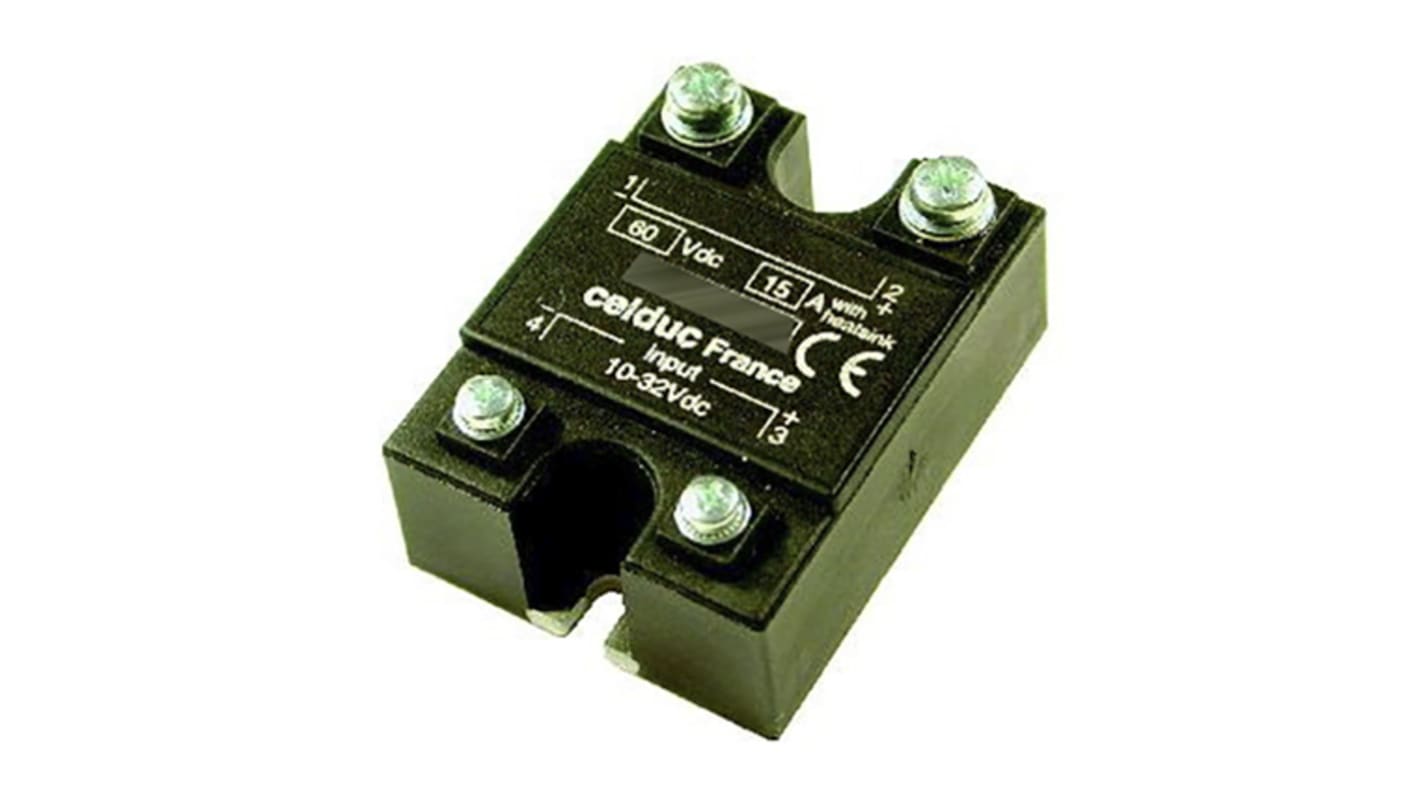

Celduc SCC Series Solid State Relay, 5 A Load, Panel Mount, 60 V dc Load, 32 V dc Control
- RS Stock No.:
- 917-2696
- Mfr. Part No.:
- SCC20506
- Brand:
- Celduc
Bulk discount available
Subtotal (1 unit)*
£64.54
(exc. VAT)
£77.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 08 December 2025
- Plus 999,999,987 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £64.54 |
| 5 - 9 | £61.96 |
| 10 + | £60.68 |
*price indicative
- RS Stock No.:
- 917-2696
- Mfr. Part No.:
- SCC20506
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 5 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 60 V dc | |
| Minimum Load Voltage | 2 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 10 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 10 → 32 V dc | |
| Range | SCC | |
| Minimum Load Current | 5 mA | |
| Number of Poles | 2 | |
| Terminal Type | Screw | |
| Output Device | Bipolar Transistor | |
| Relay Type | DC | |
| Maximum Turn On Time | 0.2ms | |
| Series | SCC | |
| Load Voltage Range | 2 → 60V dc | |
| Dimensions | 44.5 x 58.2 x 27mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 58.2mm | |
| Standards Met | CE | |
| Length | 44.5mm | |
| Off State Leakage Current | 1 mA | |
| Height | 27mm | |
| Special Features | Bipolar Transistor DC Output | |
| Maximum Operating Temperature | +80°C | |
| Operating Temperature Range | -40 → +80°C | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 5 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 60 V dc | ||
Minimum Load Voltage 2 V dc | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 10 V dc | ||
Switching Type DC | ||
Control Voltage Range 10 → 32 V dc | ||
Range SCC | ||
Minimum Load Current 5 mA | ||
Number of Poles 2 | ||
Terminal Type Screw | ||
Output Device Bipolar Transistor | ||
Relay Type DC | ||
Maximum Turn On Time 0.2ms | ||
Series SCC | ||
Load Voltage Range 2 → 60V dc | ||
Dimensions 44.5 x 58.2 x 27mm | ||
Minimum Operating Temperature -40°C | ||
Depth 58.2mm | ||
Standards Met CE | ||
Length 44.5mm | ||
Off State Leakage Current 1 mA | ||
Height 27mm | ||
Special Features Bipolar Transistor DC Output | ||
Maximum Operating Temperature +80°C | ||
Operating Temperature Range -40 → +80°C | ||
- COO (Country of Origin):
- FR
SCC series, solid state DC relays
SCC relays are power relays for use with direct current.
For switching direct loads on networks.
The power element used on these relays is a double pole transistor.
For switching direct loads on networks.
The power element used on these relays is a double pole transistor.
DC Switching
