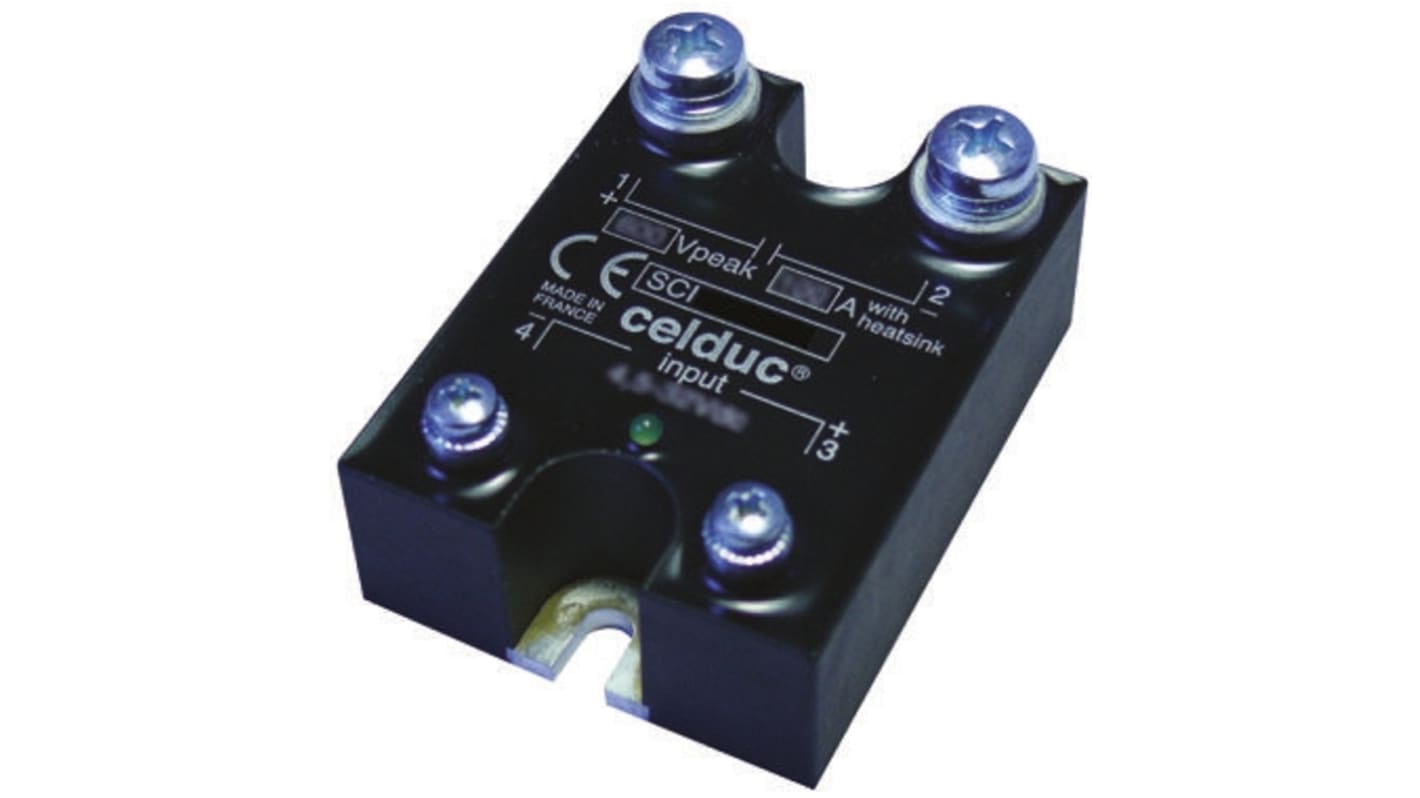

Celduc SCI Series Solid State Relay, 50 A Load, Panel Mount, 650 V dc Load, 32 V dc Control
- RS Stock No.:
- 702-6804
- Mfr. Part No.:
- SCI0501200
- Brand:
- Celduc
Bulk discount available
Subtotal (1 unit)*
£444.62
(exc. VAT)
£533.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 17 November 2025
- Plus 6 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £444.62 |
| 5 - 9 | £432.27 |
| 10 + | £420.59 |
*price indicative
- RS Stock No.:
- 702-6804
- Mfr. Part No.:
- SCI0501200
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 50 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 650 V dc | |
| Minimum Load Voltage | 0 V dc | |
| Minimum Control Voltage | 4.5 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 4.5 → 32 V dc | |
| Minimum Load Current | 0 A | |
| Range | SCI | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | IGBT | |
| Relay Type | DC Solid State Relay | |
| Maximum Turn On Time | 0.01ms | |
| Load Voltage Range | 0 → 1200V dc | |
| Series | SCI | |
| Dimensions | 44.5 x 19.6 x 58.2mm | |
| Depth | 19.6mm | |
| Height | 58.2mm | |
| Off State Leakage Current | 1 mA | |
| Length | 44.5mm | |
| Operating Temperature Range | -40 → +90°C | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, EAC, cURus | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 50 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 650 V dc | ||
Minimum Load Voltage 0 V dc | ||
Minimum Control Voltage 4.5 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type DC | ||
Control Voltage Range 4.5 → 32 V dc | ||
Minimum Load Current 0 A | ||
Range SCI | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device IGBT | ||
Relay Type DC Solid State Relay | ||
Maximum Turn On Time 0.01ms | ||
Load Voltage Range 0 → 1200V dc | ||
Series SCI | ||
Dimensions 44.5 x 19.6 x 58.2mm | ||
Depth 19.6mm | ||
Height 58.2mm | ||
Off State Leakage Current 1 mA | ||
Length 44.5mm | ||
Operating Temperature Range -40 → +90°C | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, EAC, cURus | ||
- COO (Country of Origin):
- FR
Solid state relays with IGBT output
Solid state relays with IGBT output for DC applications
Internal circuit to limit power dissipation on switching.
Low level of conducted or radiated interference.
Internal circuit to limit power dissipation on switching.
Low level of conducted or radiated interference.
DC Switching
