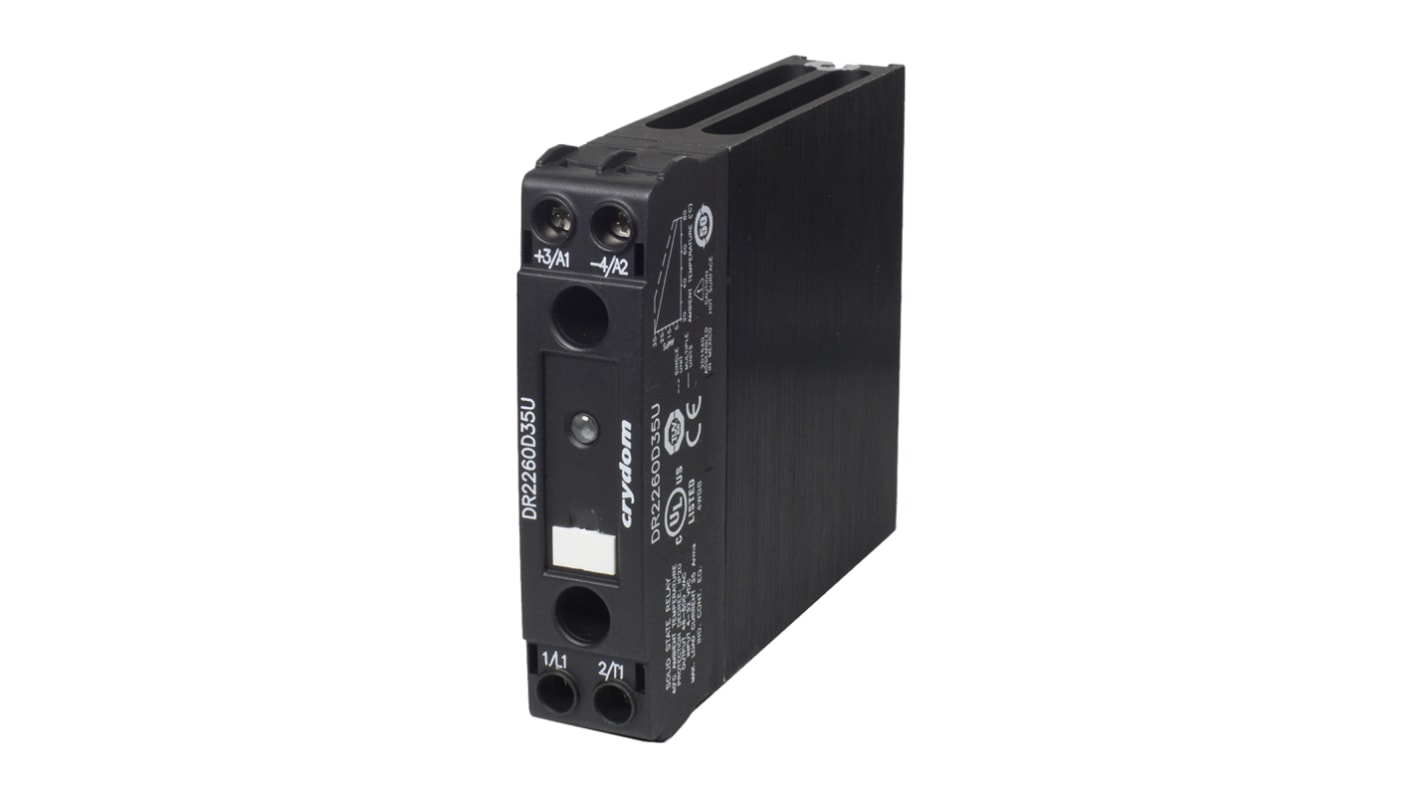

Sensata Crydom DR22 Series Solid State Relay, 20 A Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control
- RS Stock No.:
- 910-7311
- Distrelec Article No.:
- 300-84-066
- Mfr. Part No.:
- DR2260D20U
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£56.71
(exc. VAT)
£68.05
(inc. VAT)
FREE delivery for orders over £50.00
- 7 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 57 unit(s) shipping from 28 October 2025
Units | Per unit |
---|---|
1 - 4 | £56.71 |
5 - 9 | £53.87 |
10 - 24 | £51.04 |
25 - 49 | £48.20 |
50 + | £45.36 |
*price indicative
- RS Stock No.:
- 910-7311
- Distrelec Article No.:
- 300-84-066
- Mfr. Part No.:
- DR2260D20U
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Crydom | |
Maximum Load Current | 20 A | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 600 V rms | |
Minimum Load Voltage | 48 V rms | |
Minimum Control Voltage | 4 V dc | |
Maximum Control Voltage | 32 V dc | |
Switching Type | Zero Cross | |
Control Voltage Range | 4 → 32 V dc | |
Minimum Load Current | 5 mA | |
Number of Poles | 1 | |
Terminal Type | Screw | |
Contact Configuration | SP | |
Output Device | MOSFET | |
Relay Type | Nove 22 Solid State Relay | |
Maximum Turn On Time | 20ms | |
Series | DR22 | |
Load Voltage Range | 48 → 600Vrms | |
Dimensions | 22.5 x 116.5 x 93.2mm | |
Depth | 116.5mm | |
Special Features | 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | |
Standards Met | CE, cULus, cUS, IEC, ISO | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +80°C | |
Capacitance | 8pF | |
Height | 93.2mm | |
Operating Temperature Range | -40 → +80°C | |
Length | 22.5mm | |
Off State Leakage Current | 0.1 mA | |
Select all | ||
---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48 V rms | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 5 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SP | ||
Output Device MOSFET | ||
Relay Type Nove 22 Solid State Relay | ||
Maximum Turn On Time 20ms | ||
Series DR22 | ||
Load Voltage Range 48 → 600Vrms | ||
Dimensions 22.5 x 116.5 x 93.2mm | ||
Depth 116.5mm | ||
Special Features 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | ||
Standards Met CE, cULus, cUS, IEC, ISO | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
Capacitance 8pF | ||
Height 93.2mm | ||
Operating Temperature Range -40 → +80°C | ||
Length 22.5mm | ||
Off State Leakage Current 0.1 mA | ||
