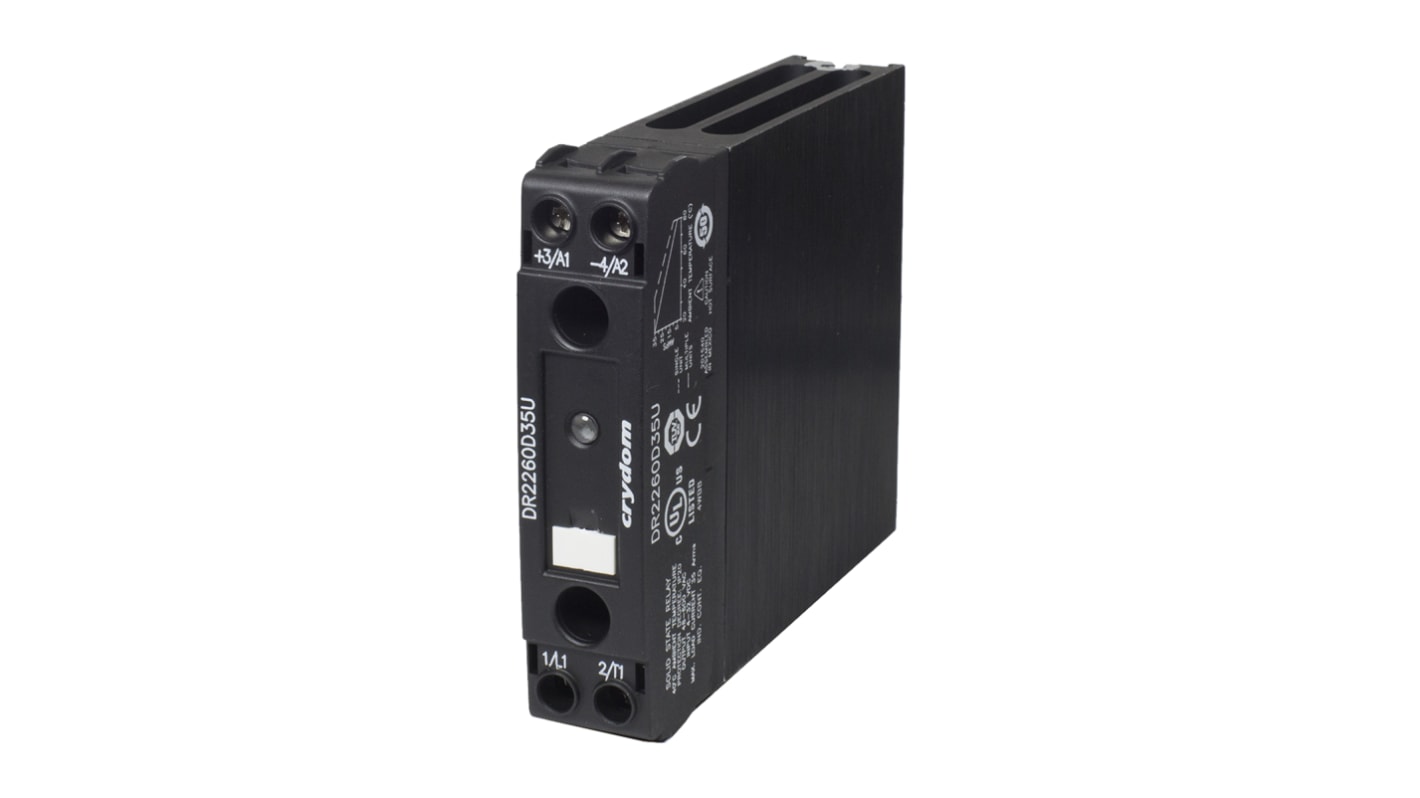

Sensata Crydom Solid State Relay, 20 A Load, DIN Rail Mount, 600 V rms Load, 280V ac/dc Control
- RS Stock No.:
- 910-7302
- Mfr. Part No.:
- DR2260A20V
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£66.64
(exc. VAT)
£79.97
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 20 March 2026
Units | Per unit |
---|---|
1 - 4 | £66.64 |
5 - 9 | £63.30 |
10 - 24 | £59.98 |
25 - 49 | £56.63 |
50 + | £53.31 |
*price indicative
- RS Stock No.:
- 910-7302
- Mfr. Part No.:
- DR2260A20V
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Crydom | |
Maximum Load Current | 20 A | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 600 V rms | |
Minimum Load Voltage | 48 V rms | |
Maximum Control Voltage | 280V ac/dc | |
Minimum Control Voltage | 90V ac/dc | |
Switching Type | Zero Cross | |
Control Voltage Range | 90 → 280 V ac/dc | |
Minimum Load Current | 100 mA | |
Number of Poles | 1 | |
Contact Configuration | SP | |
Terminal Type | Screw | |
Output Device | MOSFET | |
Relay Type | Nove 22 Solid State Relay | |
Load Voltage Range | 48 → 600Vrms | |
Maximum Turn On Time | 20ms | |
Dimensions | 22.5 x 116.5 x 91.9mm | |
Length | 22.5mm | |
Operating Temperature Range | -40 → +80°C | |
Off State Leakage Current | 1 mA | |
Depth | 116.5mm | |
Capacitance | 8pF | |
Standards Met | CE, cULus, cUS, IEC, ISO | |
Special Features | 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | |
Height | 91.9mm | |
Select all | ||
---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V rms | ||
Minimum Load Voltage 48 V rms | ||
Maximum Control Voltage 280V ac/dc | ||
Minimum Control Voltage 90V ac/dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 90 → 280 V ac/dc | ||
Minimum Load Current 100 mA | ||
Number of Poles 1 | ||
Contact Configuration SP | ||
Terminal Type Screw | ||
Output Device MOSFET | ||
Relay Type Nove 22 Solid State Relay | ||
Load Voltage Range 48 → 600Vrms | ||
Maximum Turn On Time 20ms | ||
Dimensions 22.5 x 116.5 x 91.9mm | ||
Length 22.5mm | ||
Operating Temperature Range -40 → +80°C | ||
Off State Leakage Current 1 mA | ||
Depth 116.5mm | ||
Capacitance 8pF | ||
Standards Met CE, cULus, cUS, IEC, ISO | ||
Special Features 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator | ||
Height 91.9mm | ||
- COO (Country of Origin):
- MX
DIN Rail Mounting NOVA 22 DR22 Series Solid State Relays
22.5mm wide package
4 to 32VDC, 90 to 280VAC/DC or 18 to 52VAC/DC input control options
Relay or contactor configuration
Elevator screw for easy connection of ring terminals
LED input indicator
Overvoltage protection
Zero voltage or instantaneous turn on output
100kA short circuit current rating
Maximum I2t value of 8320 8320 A2S
Integral heatsink
IP20 touch safe housing
BDC substrate for superior thermal performance
LED indicator
DR22 Series DIN Rail Mounted Nova 22
Note
Approvals
AC output devices are TUV certified to EN 62314 Standard
CE compliant to the low voltage and EMC Directives and to RoHS and China RoHS Directives
