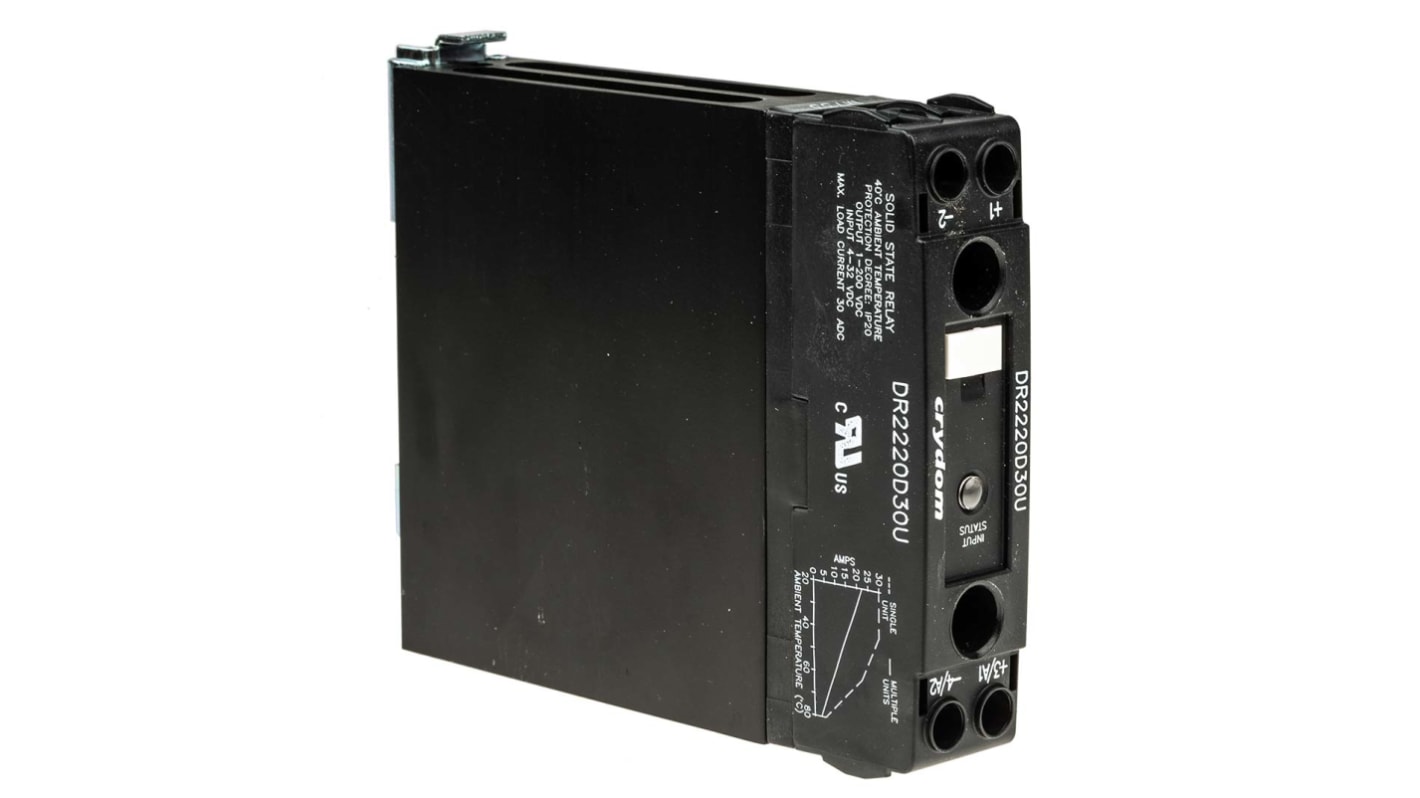

Sensata Crydom DR22 Series Solid State Relay, 30 A Load, DIN Rail Mount, 200 V dc Load, 32 V dc Control

RS Stock No.:: 910-7298
Mfr. Part No.:: DR2220D30U
Brand:: Sensata / Crydom

Sensata Crydom DR22 Series Solid State Relay, 30 A Load, DIN Rail Mount, 200 V dc Load, 32 V dc Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£110.81

(exc. VAT)

£132.97

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

8 unit(s) ready to ship
Plus 9 unit(s) ready to ship from another location
Plus 20 unit(s) shipping from 04 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£110.81
5 - 9	£105.28
10 - 24	£99.73
25 - 49	£94.18
50 +	£88.64

*price indicative

RS Stock No.:: 910-7298
Mfr. Part No.:: DR2220D30U
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	30 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	200 V dc
	Minimum Load Voltage	1 V dc
	Minimum Control Voltage	4 V dc
	Maximum Control Voltage	32 V dc
	Switching Type	Zero Cross
	Control Voltage Range	4 → 32 V dc
	Minimum Load Current	5 mA
	Number of Poles	1
	Terminal Type	Screw
	Contact Configuration	SP
	Output Device	MOSFET
	Relay Type	Nove 22 Solid State Relay
	Maximum Turn On Time	0.075ms
	Series	DR22
	Load Voltage Range	1 → 200V dc
	Dimensions	22.5 x 116.5 x 93.2mm
	Capacitance	8pF
	Height	93.2mm
	Minimum Operating Temperature	-30°C
	Off State Leakage Current	0.2 mA
	Operating Temperature Range	-40 → +80°C
	Length	22.5mm
	Standards Met	CE, cULus, cUS, IEC, ISO
	Special Features	1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator
	Maximum Operating Temperature	+80°C
	Depth	116.5mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 30 A
	Mounting Type DIN Rail
	Maximum Load Voltage 200 V dc
	Minimum Load Voltage 1 V dc
	Minimum Control Voltage 4 V dc
	Maximum Control Voltage 32 V dc
	Switching Type Zero Cross
	Control Voltage Range 4 → 32 V dc
	Minimum Load Current 5 mA
	Number of Poles 1
	Terminal Type Screw
	Contact Configuration SP
	Output Device MOSFET
	Relay Type Nove 22 Solid State Relay
	Maximum Turn On Time 0.075ms
	Series DR22
	Load Voltage Range 1 → 200V dc
	Dimensions 22.5 x 116.5 x 93.2mm
	Capacitance 8pF
	Height 93.2mm
	Minimum Operating Temperature -30°C
	Off State Leakage Current 0.2 mA
	Operating Temperature Range -40 → +80°C
	Length 22.5mm
	Standards Met CE, cULus, cUS, IEC, ISO
	Special Features 1 kHz PWM Frequency, IP20 Touch Safe Housing, LED Input Status Indicator
	Maximum Operating Temperature +80°C
	Depth 116.5mm

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 30A Rated Load Current, 1 to 200V DC Operating Voltage Range - DR22 Series - DR2220D30U

Make or break the circuits in your devices using this solid-state relay from Sensata | Crydom. It converts electrical signals to optical ones, causing the contacts to open or close in the blink of an eye. Thanks to its built-in overvoltage protection, it can take the heat in the event of a current surge, helping to protect your system against hazards. An integrated heatsink is also on hand to help the relay keep its cool in demanding operations. Use this relay to switch your robotics and medical equipment on and off.

Features & Benefits

• Housing is self-extinguishing for safety in the event of a fire
• Broad operating temperature range between -40ºC and +80ºC for safe use in challenging environments
• LED indicator enables easy status monitoring
• Lack of moving parts reduces the risk of mechanical wear for a long service life

What's the switching time of this relay?

This SSR has a maximum turn-on time of 75μsec and a maximum turn-off time of 100μsec, so it'll give you rapid-fire switching.

How do I mount this relay?

You can mount this SSR in a jiffy by simply clipping it to a DIN rail.
