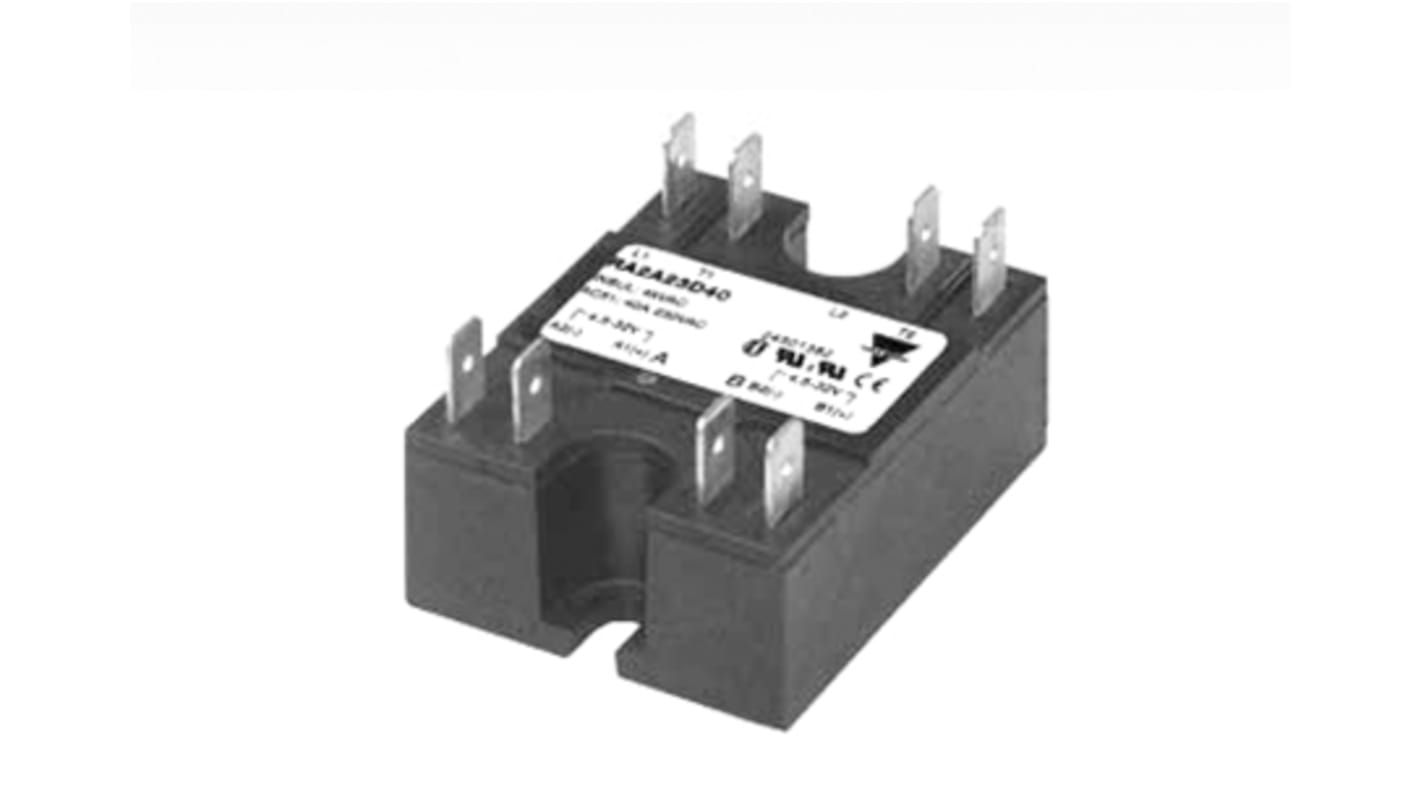

Carlo Gavazzi Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 32 V dc Control
- RS Stock No.:
- 859-3159
- Mfr. Part No.:
- RA2A48D25
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£76.14
(exc. VAT)
£91.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £76.14 |
*price indicative
- RS Stock No.:
- 859-3159
- Mfr. Part No.:
- RA2A48D25
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Carlo Gavazzi | |
Maximum Load Current | 50 A | |
Mounting Type | Panel Mount | |
Maximum Load Voltage | 530 V ac | |
Minimum Load Voltage | 42 V ac | |
Minimum Control Voltage | 4.5 V dc | |
Maximum Control Voltage | 32 V dc | |
Switching Type | Zero Cross | |
Control Voltage Range | 4.5 → 32 V dc | |
Minimum Load Current | 150 mA | |
Contact Configuration | DPST | |
Terminal Type | Quick Connect | |
Load Voltage Range | 42 → 530V ac | |
Dimensions | 44.5 x 57.8 x 23.3mm | |
Height | 23.3mm | |
Off State Leakage Current | <3 mA | |
Depth | 57.8mm | |
Operating Temperature Range | -20 → +70°C | |
Length | 44.5mm | |
Select all | ||
---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 50 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 530 V ac | ||
Minimum Load Voltage 42 V ac | ||
Minimum Control Voltage 4.5 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4.5 → 32 V dc | ||
Minimum Load Current 150 mA | ||
Contact Configuration DPST | ||
Terminal Type Quick Connect | ||
Load Voltage Range 42 → 530V ac | ||
Dimensions 44.5 x 57.8 x 23.3mm | ||
Height 23.3mm | ||
Off State Leakage Current <3 mA | ||
Depth 57.8mm | ||
Operating Temperature Range -20 → +70°C | ||
Length 44.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT
Carlo Gavazzi Analog Switching Solid State Relay
The analog switching solid state relay from Carlo Gavazzi works in accordance with the phase angle control principle
Integral snubber network
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Analog Switching
