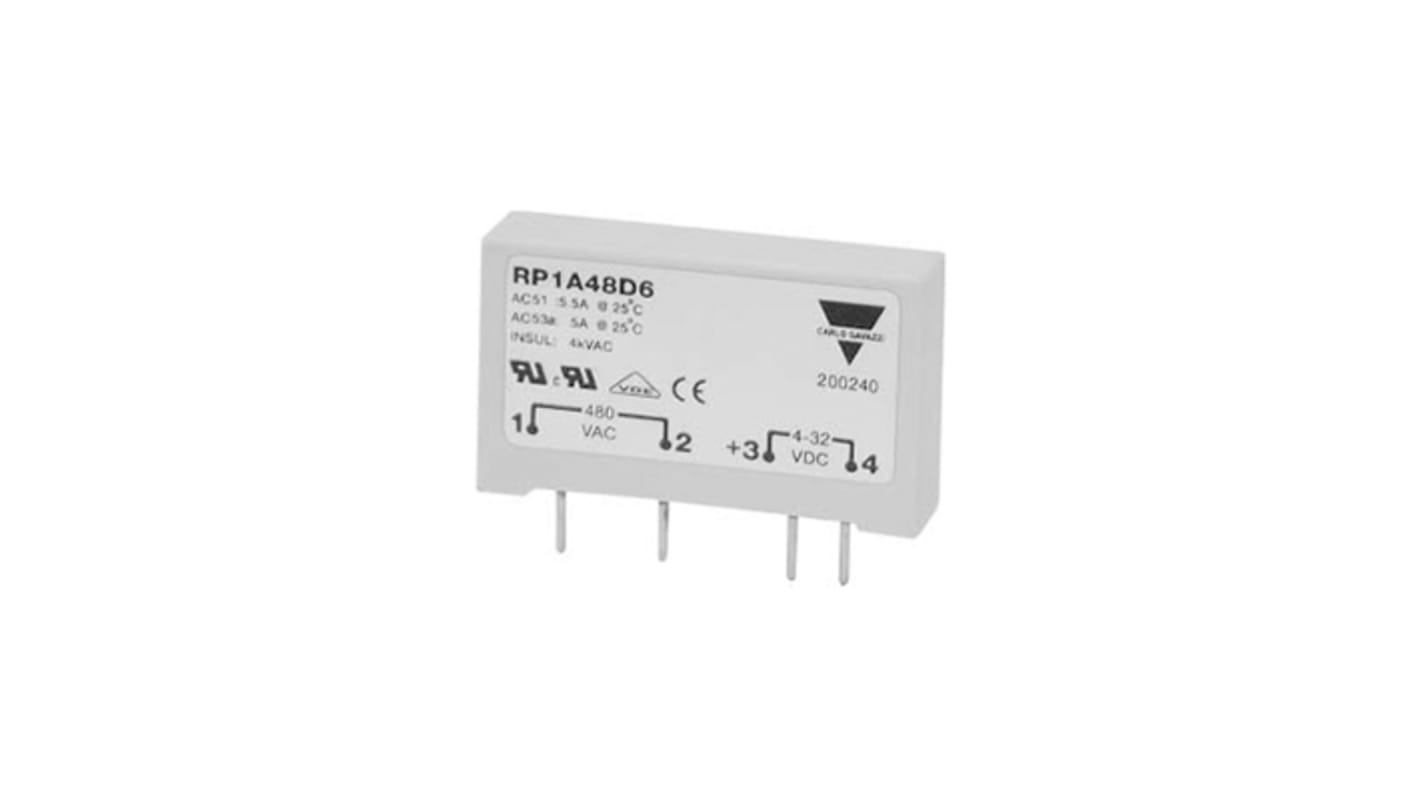

Carlo Gavazzi RP1 Series Solid State Relay, 5 A Load, PCB Mount, 530 V ac Load, 32 V dc Control
- RS Stock No.:
- 859-3248
- Distrelec Article No.:
- 137-41-114
- Mfr. Part No.:
- RP1A48D5
- Brand:
- Carlo Gavazzi
Bulk discount available
Subtotal (1 unit)*
£25.69
(exc. VAT)
£30.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.69 |
| 5 - 9 | £24.92 |
| 10 + | £23.82 |
*price indicative
- RS Stock No.:
- 859-3248
- Distrelec Article No.:
- 137-41-114
- Mfr. Part No.:
- RP1A48D5
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 5 A | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 530 V ac | |
| Minimum Load Voltage | 20 V ac | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | AC | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 20 mA | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Relay Type | Single Phase | |
| Series | RP1 | |
| Maximum Turn On Time | 1 s | |
| Load Voltage Range | 20 → 530V ac | |
| Dimensions | 43 x 10.5 x 25.4mm | |
| Operating Temperature Range | -20 → +70°C | |
| Minimum Operating Temperature | -20°C | |
| Length | 43mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 1 mA | |
| Maximum Operating Temperature | +70°C | |
| Depth | 10.5mm | |
| Special Features | Heat Sinked | |
| Height | 25.4mm | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 5 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 530 V ac | ||
Minimum Load Voltage 20 V ac | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type AC | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 20 mA | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Relay Type Single Phase | ||
Series RP1 | ||
Maximum Turn On Time 1 s | ||
Load Voltage Range 20 → 530V ac | ||
Dimensions 43 x 10.5 x 25.4mm | ||
Operating Temperature Range -20 → +70°C | ||
Minimum Operating Temperature -20°C | ||
Length 43mm | ||
Capacitance 8pF | ||
Off State Leakage Current 1 mA | ||
Maximum Operating Temperature +70°C | ||
Depth 10.5mm | ||
Special Features Heat Sinked | ||
Height 25.4mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Carlo Gavazzi Analog Switching Solid State Relay
The analog switching solid state relay from Carlo Gavazzi works in accordance with the phase angle control principle
Integral snubber network
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Analog Switching
