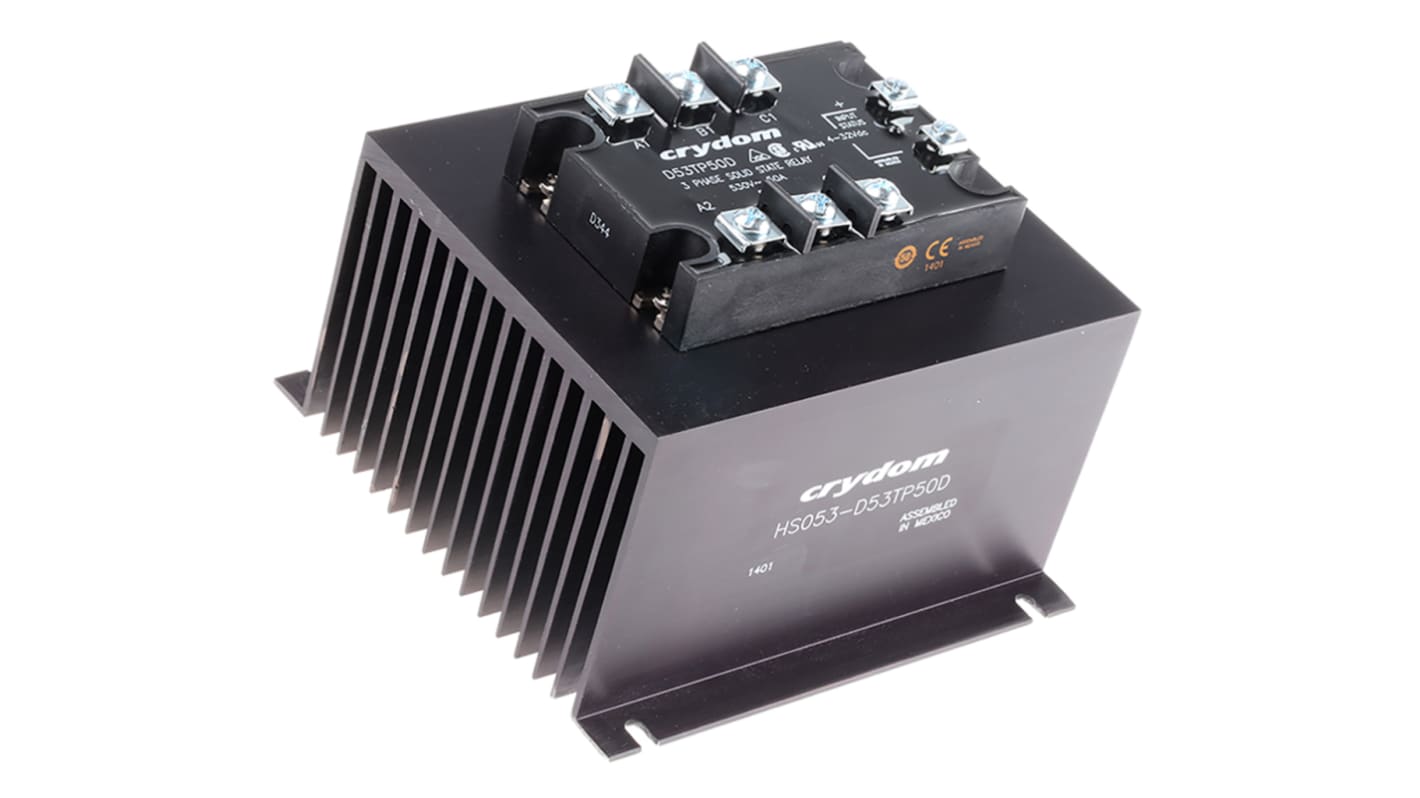

Sensata Crydom Solid State Relay, 82.5 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control
- RS Stock No.:
- 703-4662
- Mfr. Part No.:
- HS053-D53TP50D
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£323.86
(exc. VAT)
£388.63
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) shipping from 09 December 2025
- Plus 2 unit(s) shipping from 26 February 2026
Units | Per unit |
---|---|
1 - 4 | £323.86 |
5 - 9 | £307.67 |
10 - 24 | £291.47 |
25 - 49 | £275.29 |
50 + | £259.09 |
*price indicative
- RS Stock No.:
- 703-4662
- Mfr. Part No.:
- HS053-D53TP50D
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Crydom | |
Maximum Load Current | 82.5 A rms | |
Mounting Type | Panel Mount | |
Maximum Load Voltage | 530 V ac | |
Minimum Load Voltage | 48 V ac | |
Minimum Control Voltage | 3 V dc | |
Maximum Control Voltage | 32 V dc | |
Switching Type | Zero Cross | |
Control Voltage Range | 3 → 32 V dc | |
Minimum Load Current | 0.05 A rms | |
Terminal Type | Screw | |
Maximum Turn On Time | 1/2 cycle | |
Load Voltage Range | 48 → 530Vrms | |
Dimensions | 152.4 x 152.4 x 115.8mm | |
Operating Temperature Range | -40 → +80°C | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -40°C | |
Depth | 152.4mm | |
Height | 115.8mm | |
Off State Leakage Current | 10mA rms | |
Length | 152.4mm | |
Select all | ||
---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 82.5 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 530 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.05 A rms | ||
Terminal Type Screw | ||
Maximum Turn On Time 1/2 cycle | ||
Load Voltage Range 48 → 530Vrms | ||
Dimensions 152.4 x 152.4 x 115.8mm | ||
Operating Temperature Range -40 → +80°C | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Depth 152.4mm | ||
Height 115.8mm | ||
Off State Leakage Current 10mA rms | ||
Length 152.4mm | ||
