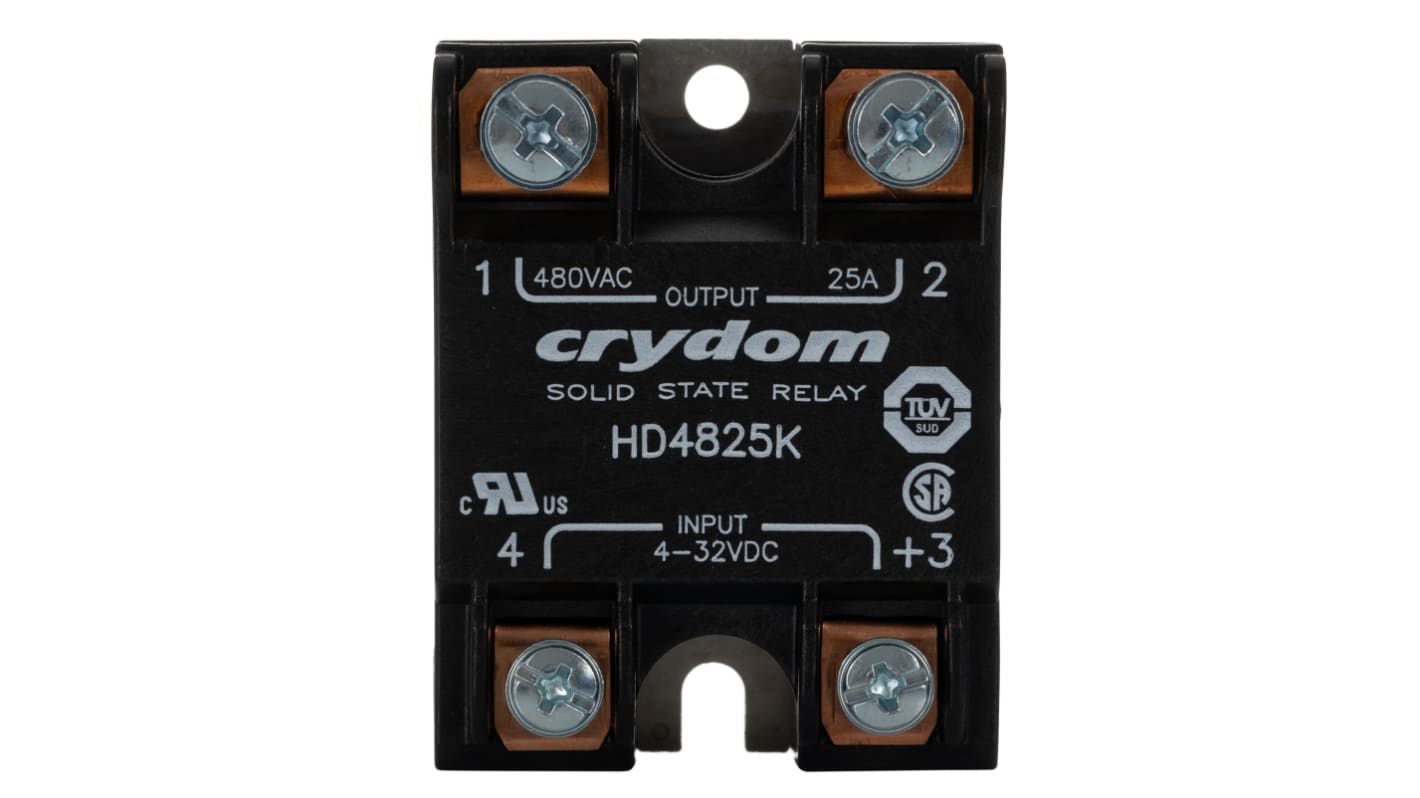

Sensata Crydom HD Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

View all Solid State Relays
Save 20% when you buy 50 units

Subtotal (1 unit)*

£63.97

(exc. VAT)

£76.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£63.97
5 - 9£60.77
10 - 24£57.58
25 - 49£54.38
50 +£51.17

*price indicative

RS Stock No.:
145-0599
Mfr. Part No.:
HD4825K
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

25 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

530 V ac

Minimum Load Voltage

48 V ac

Maximum Control Voltage

32 V dc

Minimum Control Voltage

4 V dc

Switching Type

Zero Cross

Control Voltage Range

4 → 32 V dc

Minimum Load Current

150mA rms

Number of Poles

1

Terminal Type

Screw

Output Device

SCR

Relay Type

Solid State Relay

Series

HD

Maximum Turn On Time

1/2 cycle

Load Voltage Range

48 → 530V ac

Dimensions

44.5 x 57.3 x 26.4mm

Capacitance

8pF

Maximum Operating Temperature

+80°C

Depth

57.3mm

Off State Leakage Current

1mArms

Height

26.4mm

Minimum Operating Temperature

-40°C

Length

44.5mm

Special Features

AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers

Operating Temperature Range

-40 → +80°C

Standards Met

CE, CSA LR 81689, cULus Recognised E116949, cULus Recognised E116950, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG
